Research Paper Volume 16, Issue 8 pp 7153—7173
Ferulic acid in synergy with retinol alleviates oxidative injury of HaCaT cells during UVB-induced photoaging

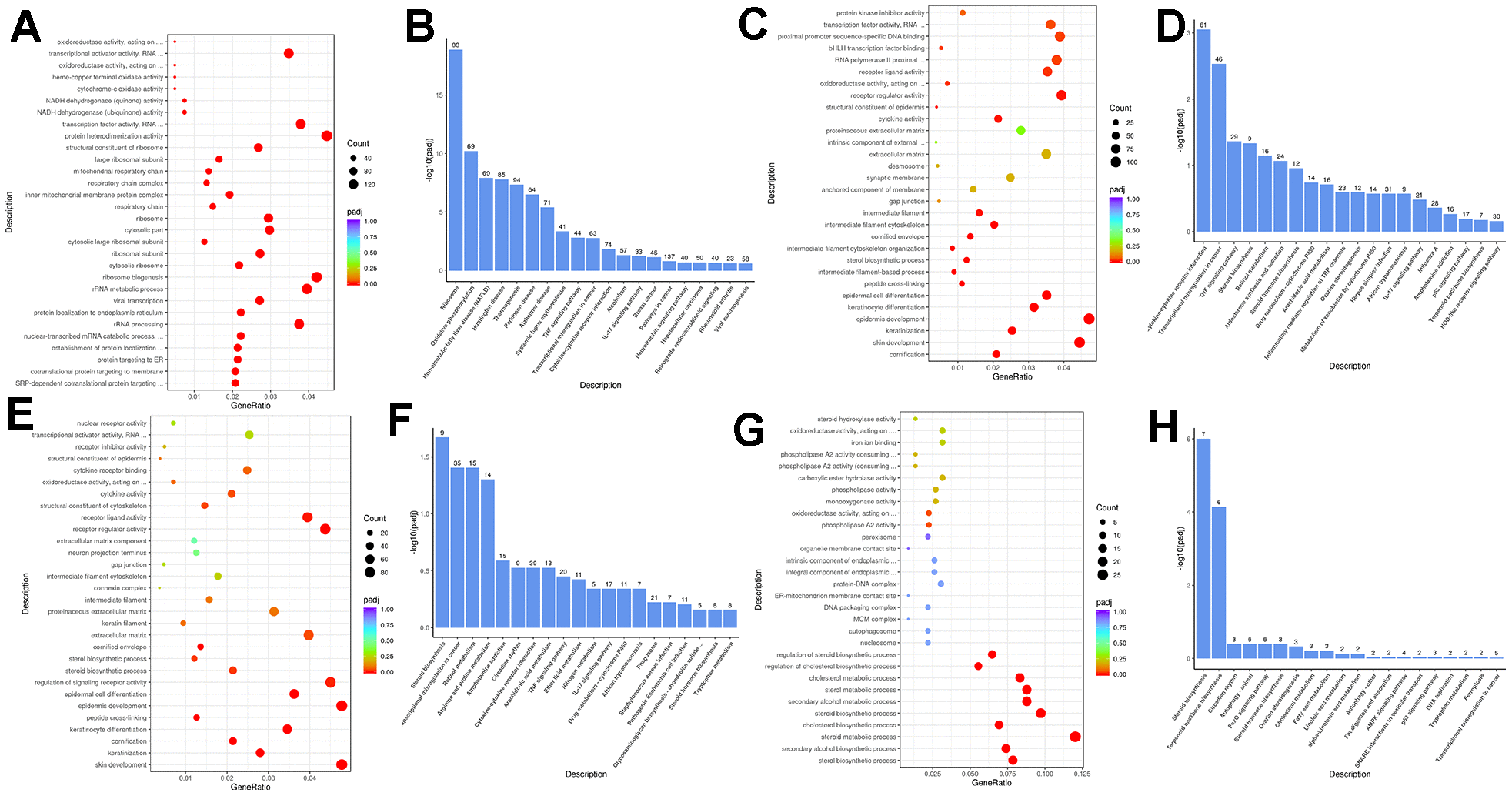

Figure 10. The combined action of retinol and ferulic acid regulates biological processes that contribute to the protection of photoaging cells. (A, B) Bubble diagram and bar chart of DEGs in groups of control vs model; (C, D) Bubble diagram and bar chart of DEGs in groups of VA-FA vs model; (E, F) Bubble diagram and bar chart of DEGs in groups of VA vs model; (G, H) Bubble diagram and bar chart of DEGs in groups of FA vs model.
