Human umbilical cord mesenchymal stem cells promote steroid-induced osteonecrosis of the femoral head repair by improving microvascular endothelial cell function

Animal surgery

The rabbits were subjected to anesthesia using 3% pentobarbital sodium at a dosage of 30 mg/kg, supplemented with inhalation anesthesia for assistance. The operation was performed in an animal fluoroscopy operating room. In brief, a 1 mm Kirschner wire was drilled along the center of the femoral neck under fluoroscopy of the C-arm machine (Supplementary Figure 1A), a 2 mm hollow drill was drilled along the Kirschner wire to 3 mm below the cartilage (Supplementary Figure 1B). In the CD+hUCMSCs group, 0.2 ml of pluronic F127 hydrogel (sigma, USA) containing hUCMSCs was slowly injected (hUCMSCs concentration of 5 × 10⁶ cells/ml). In the CD group, a syringe was used to inject 0.2 ml of pluronic F127 hydrogel. The pluronic F127 hydrogel was prepared with reference to a previous study [17]. In the MPS group, rabbits were anesthetized, and the femur was exposed by making an incision in the skin, which was then sutured.

The wounds were closed using non-absorbable sutures, and a single intramuscular injection of 400,000 units of penicillin was administered after the surgery. The rabbit femur specimens were collected after eight weeks.

Microangiography of the femoral head

Five rabbits were taken from each group for the operation according to the previously reported method and reagent supplier guidelines [18]. Following the induction of anesthesia, Heparin saline (20 U/ml) was instilled through a disposable infusion device, and 4% paraformaldehyde was instilled. Finally, Microfil (Microfil MV-122, Flow Tech, USA) was instilled via syringe at 150 ml according to the reagent supplier’s protocol. It was noted that the same instillation rate was maintained for each animal as closely as possible. The animals were then executed via injection with an overdose of 3% sodium pentobarbital and left overnight in the refrigerator at 4°C. Samples of the proximal femur were removed and fixed in 4% paraformaldehyde for 48 h, followed by decalcification with ethylenediaminetetraacetic acid (EDTA, 10%, pH 7.4).

Micro-CT

The femoral specimen was secured in a sample tube and subjected to scanning using a micro-CT (SkyScan 1276 micro-CT system, Bruker, Kontich, Belgium). The parameters were set as follows: peak energy, U = 85 kV, I = 200 μA. The scanning slice gap was 10.5 μm, and the intermediate frequency resolution was 1024 × 1024. The data were acquired and reconstructed with the NRecon software (v1.7.4.2), and the 3D reconstruction was carried out using CTvox (v3.3). Subsequently, measurements of bone volume/total volume (BV/TV, %), trabecular number (Tb.N, 1/mm), trabecular separation (Tb.Sp, μm), and trabecular thickness (Tb.Th, μm) were performed using CTAn (v1.17.7.2) and CTvol (v2.3.2).

Histological analysis of the femoral head

To prepare for observation, the proximal femur samples were first fixed in 4% paraformaldehyde and then decalcified using 10% EDTA. The samples were dehydrated and embedded in paraffin. From the paraffin-embedded samples, we prepared sections 4 μm in thickness. These sections were subjected to Hematoxylin and eosin (HE) staining and viewed under a light microscope. To compute the cavity ratio in the bones, three fields of view were randomly selected.

For immunohistochemistry, the sections were incubated overnight at 4°C with a CD31 primary antibody (1:800, Novus Biologicals, USA). Subsequently, after incubation with a secondary antibody, the sections were visualized and photographed under a light microscope (Olympus, Japan). The counting of microvessels was conducted independently by two researchers.

Data of single cell source collection and analysis

The scRNA-seq data of human normal femoral head and ONFH were obtained from SRP361778 via the SRA database (https://www.ncbi.nlm.nih.gov/sra/). To identify the top 2000 most variable genes, a normalized expression matrix was utilized. Next, principal components analysis (PCA) was used for dimensionality reduction, which helped eliminate batch effects using the top 50 PCA components. In the clustering analysis, a clustering algorithm was utilized to visualize the data through techniques such as uniform manifold approximation, projection (UMAP), and t-distributed stochastic neighbor embedding (t-SNE).

In the analysis, we utilized the “FindAllMarkers” function with specific parameter settings (logfc.threshold = 0.25, min.pct = 0.25, and min.diff.pct = 0.25) to identify marker genes for each cluster. The first 100 marker genes were subjected to a gene ontology (GO) enrichment analysis to gain insights into their functional annotations. Additionally, cell annotation was performed based on previous knowledge of cell marker genes combined with GO analysis.

Pathway enrichment analysis

To further investigate the differentially expressed genes (DEGs) within cell families, we conducted GO and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis using the clusterProfiler R package (adjusted p-value < 0.05).

Analysis of intercellular communication

To explore the potential mechanisms underlying the interaction between stem cells and ECs, we employed the CellChat package (version 1.4.0) to analyze intercellular communication between different cell types (set p-value < 0.05).

Isolation, culture, and identification of BMEC

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethics Committee of Wuhan University (WDRM2021-KS068). In this study, we collected tissue samples from the femoral head of one individual donor (male, 48 years old) who underwent total hip arthroplasty for coxitis secondary to developmental dysplasia of the hip (DDH), and we collected operative residual tissue samples after obtaining informed consent from the donor.

Operating according to the previously reported method [19], we treated the bone with DMEM medium containing 2% type I collagenase (Servicebio, China) and 0.25% EDTA (Servicebio, China). The oil and fine bone particles were filtered out using a 70 μm cell sieve (Biosharp, China), and the cell suspension was collected. Next, the cell suspension was centrifuged, and the supernatant was removed. The cells were cultured using ECM (ScienCell, USA) medium.

Following a 24 h incubation period, the medium was removed. The cell culture dishes were then gently rinsed with pre-warmed HBSS to remove any unadhered cells. This washing step was repeated thrice. Subsequently, a fresh culture medium was added to the dishes, and the culture was continued. When the cells grew to 80–90% of the culture dish, the cells were collected using 0.25% EDTA, trypsin concentration of 0.1%, and re-inoculated culture in a 1:2 ratio. After two passages, we prepared for subsequent experiments.

To identify the primary cells, we used immunofluorescence. First, we fixed the cells using 4% paraformaldehyde for a duration of 10 minutes. Then, the cells were permeabilized with a 0.2% Triton X-100 PBS solution and incubated in a PBS solution containing 1% BSA for 30 minutes. Next, the primary antibodies VWF (1:400, Servicebio, China) and CD31 (1:200, Servicebio, China) were added to the cells and incubated overnight at 4°C. Subsequently, the cells were incubated with a fluorescent secondary antibody for an hour at room temperature, away from light. Finally, the cells were visualized and photographed under a fluorescent microscope (Olympus, Japan).

Cell culture

The hUCMSCs were purchased from Shenzhen Wingor Biotechnology Co., Ltd [20]. Moreover, the cells used in the experiments were obtained from 3-6 generations of the same batch of cells. The cells were cultured using the DMEM/F12 (HyClone, USA) supplemented with 10% FBS (Serapro, USA) and a 1% penicillin mixture (Biosharp, China). The cell culture was maintained at 37°C with 5% CO₂. The medium was refreshed every 2–3 days when the cells reached approximately 80–90% passage.

BMECs were divided into three groups: the Con group; the Dex group; the Dex+hUCMSC group. Cell co-culture was performed in a non-contact co-culture manner. In 6, 24, and 96-well plate Transwell co-culture systems (0.4 μm, Corning, USA), hUCMSCs were inoculated in the upper chamber and BMECs in the lower chamber in a 2:1 cell ratio and cultured with ECM.

Cell counting Kit- 8 (CCK-8)

To determine the viability of BMECs, the CCK-8 (Beyotime Institute of Biotechnology, China) assay was performed following the supplier’s instructions. BMECs were incubated with 5000 cells per well in 96-well plates and treated with varied concentrations of Dex (50, 100, 150, 200, and 300 μM) for a duration of 24 h. After the treatment period, CCK-8 (10 μl) solution was added to each well and incubated for 2 h at 37°C in 5% CO₂. The absorbance at 450 nm was then measured using a microplate reader (Perkin Elmer, USA).

Enzyme-linked immunosorbent assay (ELISA)

The concentration of COL6A2 was measured using an ELISA kit (BYabscience, China) according to the instructions provided by the manufacturer.

siRNA transfection

For the transformation of hUCMSCs, the RNAiMAX reagent was used following the manufacturer’s instructions. The cells were treated with negative control (NC) RNA and COL6A2 siRNA (RIBOBIO), respectively.

Wound healing assay

The BMECs were grown in 6-well plates until they reached 90–100% coverage. Then, they were co-cultured with either Dex-treated cells or hUCMSCs for 24 h. To create scratches on the cells, a 200 μl pipette tip was used. The scratches were visually examined and photographed. The ImageJ Software (version 3.0) was utilized to analyze the data at 0 and 24 h. The percentage of scratch shortening was calculated using this software.

Tube formation assay

A tube-forming assay was employed to evaluate the angiogenic capacity of BMECs in vitro. In pre-cooled 24-well plates, 250 μl of matrix gel (Corning, USA) was added and incubated at 37°C for 30 minutes. BMECs were then inoculated in ECM without FBS and incubated at 37°C in 5% CO₂ for 6 h. The resulting tube formations were observed, photographed, and analyzed using the ImageJ Software.

Western blot analysis

The total protein from each group of BMECs was derived using RIPA lysis buffer, and the total protein was measured using a BCA kit (Servicebio, China). After electrophoresis and electrotransfer, the membranes were incubated with primary antibodies (p-FAK, FAK, p-PI3K, PI3K, p-AKT, AKT at a dilution of 1:1000 from Cell Signaling Technology, USA; GAPDH from Servicebio, China) overnight at 4°C. Subsequently, the membranes were incubated with secondary antibodies for 1 hour at 37°C. The levels of protein quantification were visualized using the ImageJ Software.

hUCMSCs improved the femoral head microstructure in the MPS-induced ONFH rabbit model

Micro-CT was employed for the quantitative analysis of the microstructure of the femoral head. In the MPS rabbit femoral head, the trabeculae were observed to be sparse and disorganized. However, in the CD+hUCMSCs group, the trabeculae appeared to be complete and well-aligned (Figure 1A). Furthermore, when comparing the CD+hUCMSCs group with the MPS group, significant differences were observed in several parameters. The CD+hUCMSCs group exhibited significantly higher values for Tb.Th, Tb.N and BV/TV. Additionally, the CD+hUCMSC group displayed a significantly lower value for Tb.Sp compared with the MPS group. The implantation of hUCMSCs inhibited the occurrence of osteonecrosis and promoted bone regeneration in the femoral head of the ONFH rabbit model, thus improving the aforementioned microstructure of the femoral head (Figure 1B–1E).

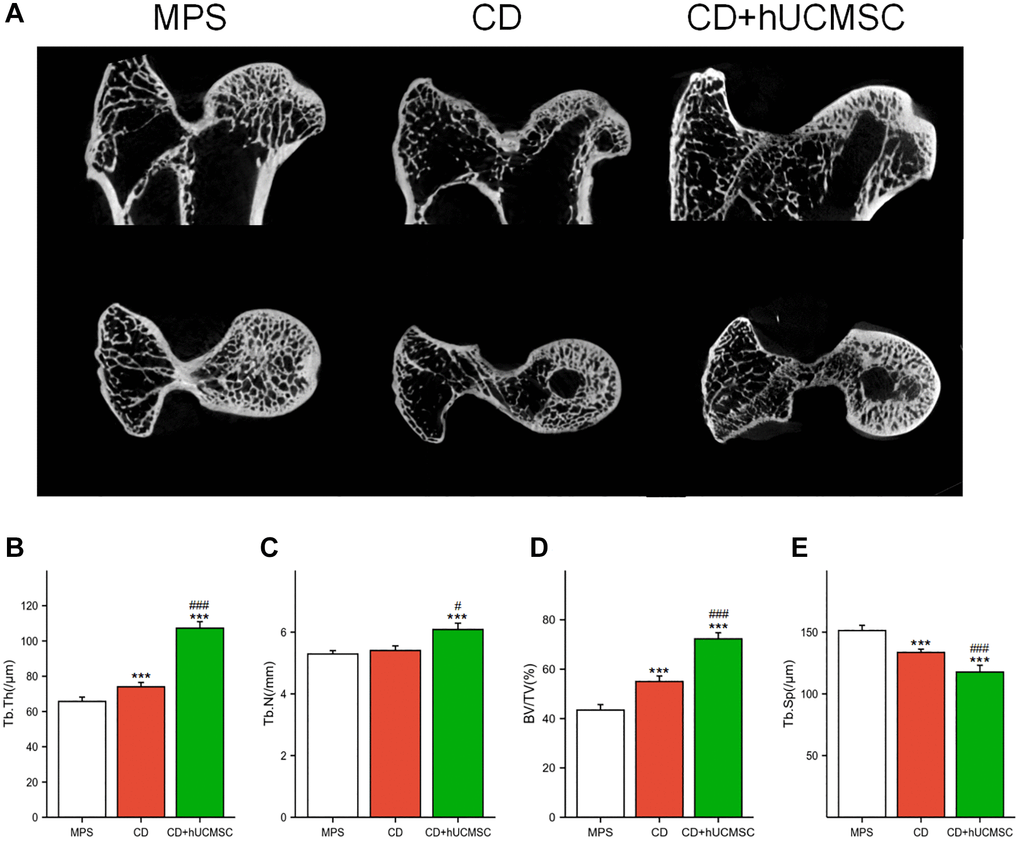

Figure 1. hUCMSCs improved the femoral head microstructure in the MPS-induced ONFH rabbit model. (A) Representative images of Micro-CT of the femoral head in each group; (B–E) Quantitative analysis of Tb.Th, Tb.N, BV/TV and Tb.Sp in each group. The data are presented as the means ± SD (n = 7). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the MPS group. ^#p < 0.05, ^##p < 0.01, ^###p < 0.001, compared with the Dex group.

hUCMSCs promoted angiogenesis in the femoral head in the MPS-induced ONFH rabbit model

Micro-CT and angiography in each group were used to perform microvascular imaging of the femoral head (Figure 2A). The microvessel number, microvessel percentage, and microvessel volume were markedly improved in the CD+hUCMSC group in comparison to the MPS group (Figure 2B–2D). The implantation of hUCMSCs promoted microangiogenesis in the femoral head of the ONFH model rabbits.

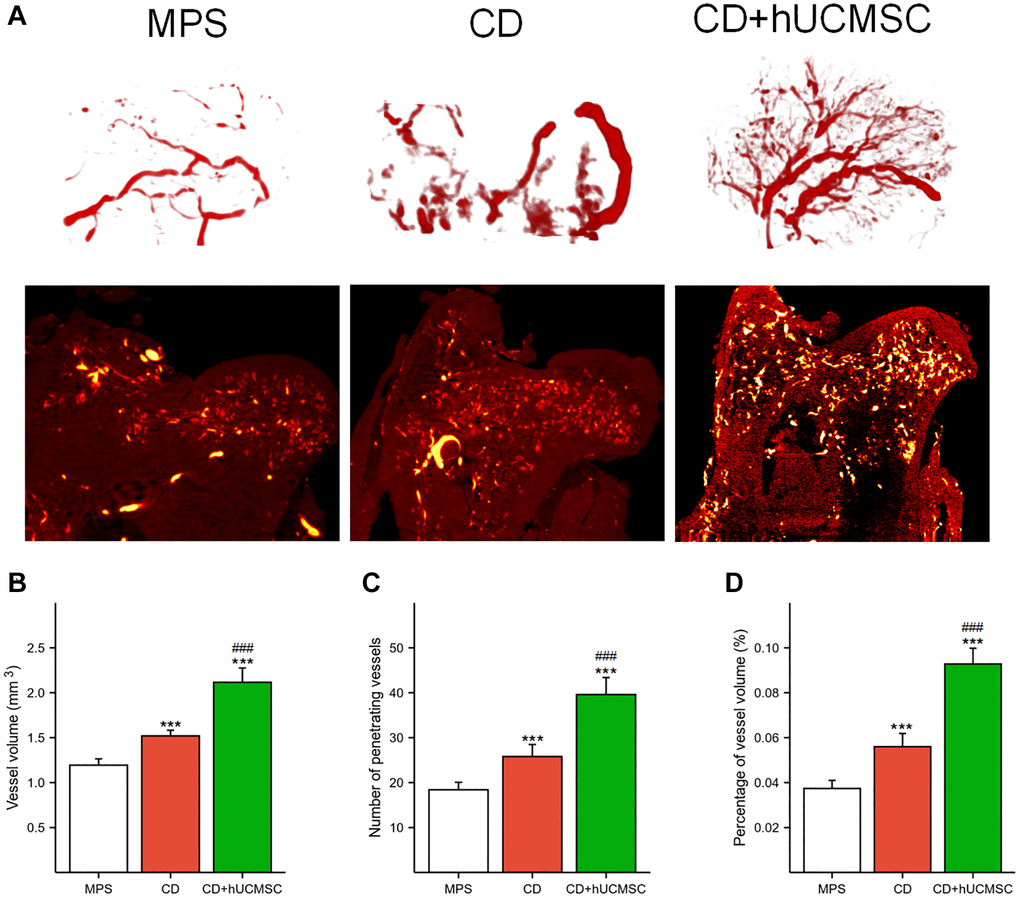

Figure 2. hUCMSCs promoted MPS-induced angiogenesis in the femoral head in a rabbit model of ONFH. (A) Representative microvascular imaging of the femoral head in each group. (B–D) Quantitative analysis of the vessel volume, number of penetrating vessels and percentage of vessel volume. The data are presented as the means ± SD (n = 5). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the MPS group. ^#p < 0.05, ^##p < 0.01, ^###p < 0.001, compared with the Dex group.

hUCMSCs reduced the incidence of empty lacunae and increased the number of CD31+ microvessels

Osteonecrosis and angiogenesis were evaluated using HE staining and immunohistochemical CD31 staining. In the MPS group, many empty lacunae (formerly occupied by cells) and nuclear pyknosis (shrinkage of cell nuclei) were observed. Conversely, the CD+hUCMSC group exhibited fewer empty lacunae (Figure 3A). Implantation of hUCMSCs resulted in a remarkable reduction in the occurrence of empty lacunae in the femoral head of the ONFH rabbit model (Figure 3C). Furthermore, the CD+hUCMSC group exhibited a significantly higher number of CD31+ microvessels compared with the MPS group (Figure 3B, 3D). The implantation of hUCMSCs reduced the occurrence of empty lacunae in the femoral head of the ONFH rabbit model and promoted the generation of CD31+ microvessels.

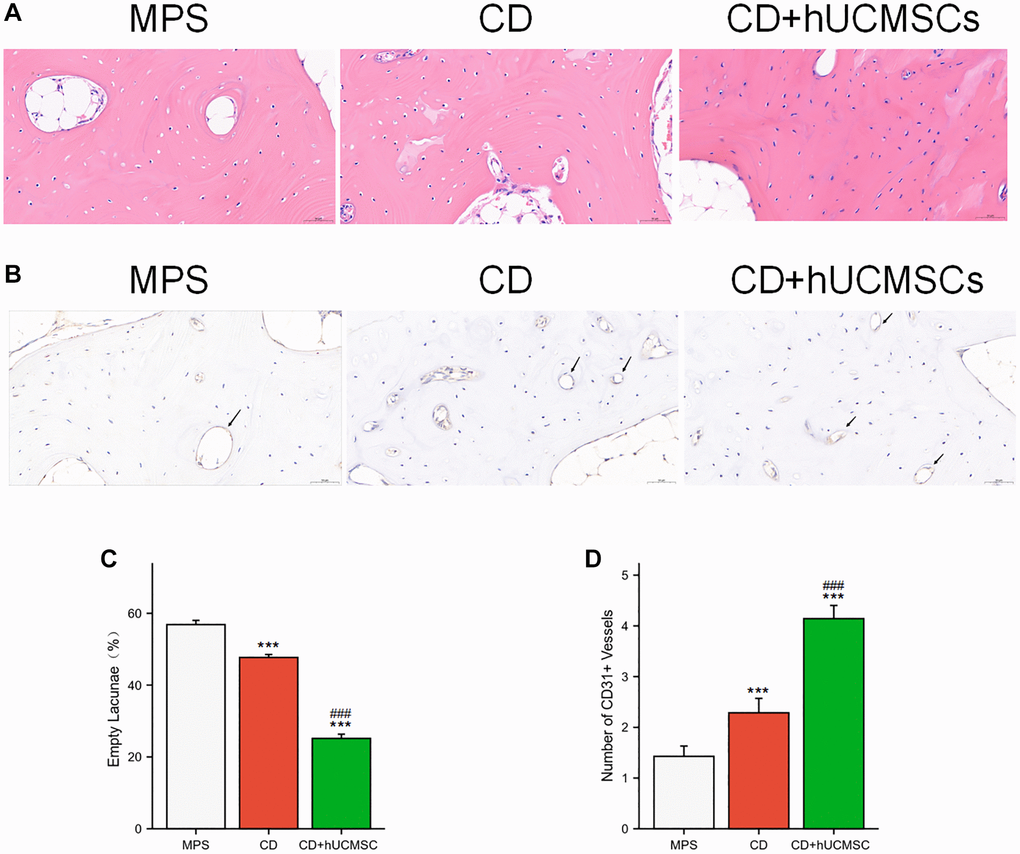

Figure 3. hUCMSCs reduced the incidence of empty lacunae and increased the number of CD31+ microvessels. (A) The bone tissues were analyzed via HE staining. (B) Immunohistochemistry staining of CD31. (C) Quantitative analysis of empty lacunae. (D) Quantitative analysis of the number of CD31+ vessels. The data are presented as the means ± SD (n = 7). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the MPS group. ^#p < 0.05, ^##p < 0.01, ^###p < 0.001, compared with the Dex group.

scRNA-seq analyzed and identified different cell types and ECs clusters

We identified and categorized each cluster of cell types (Figure 4A), as follows: T cells, Monocytes, NK cells, B cells, Osteoblasts, endothelial cells (ECs), Osteoclasts, MSCs, and Macrophages. The proportion of each group of cells in the sample is shown in Figure 4B. The heat map shows the top 10 marker genes in each cluster (Figure 4C). Figure 4D shows ECs were clustered into 3 subtypes, while Figure 4E shows signature genes embedded on t-SNE dimension reduction map. Figure 4F presents a dot plot showing marker genes for ECs subtypes. The ECs were divided into three subtypes based on their proliferating capacity and the extent of their cell development. Three possible subtypes were identified: (0) proliferating ECs, (1) CD74+ ECs and (2) mature ECs (Figure 4G).

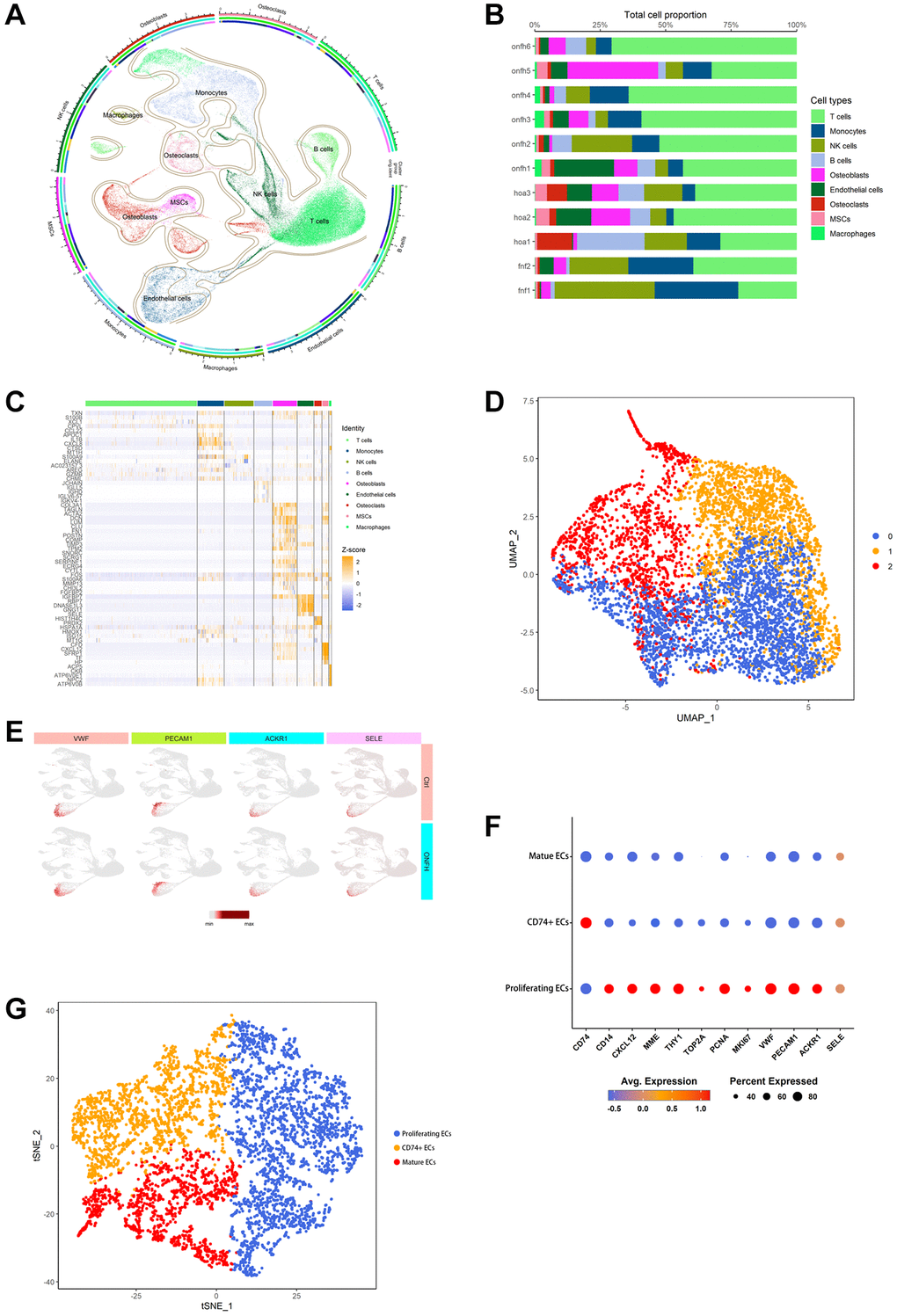

Figure 4. scRNA-seq was used to analyze and identify different cell types and EC clusters. (A) Cell type annotation of 9 clusters. (B) The percentage of clusters and cell types in each sample was represented on a proportion chart. (C) The heat map shows the top 10 marker genes in each cluster. (D) Two-dimensional plots of UMAP dimensionality reduction of the ECs. (E) ECs signature genes embedded on t-SNE dimension reduction map. (F) Dot plot showing marker genes for ECs subtypes. (G) tSNE shows the color-coded clustering for ECs.

scRNA-seq analysis of the inter-cellular communication and DEGs in ECs

We analyzed five significantly up, or down-regulated signaling pathways in ECs in the control and ONFH groups (Figure 5A, 5B). It was revealed that the VEGF signaling pathway was markedly down-regulated in the ONFH group. Additionally, we performed KEGG enrichment analysis of DEGs in ECs (Figure 5C, 5D), and PI3K/AKT signaling pathway expression was found to be markedly down-regulated in the ONFH group. This result suggests that the VEGF and PI3K/AKT signaling pathways are crucial in ONFH pathogenesis. Next, we analyzed the inter-cellular communication between ECs and other cells (Figure 5E–5M). We found that MSCs have strong inter-cellular communication with proliferating ECs via “COL6A2-ITGA1/ITGB1”, and the collagen pathway signaling network also suggested that MSCs affect proliferating ECs via the collagen pathway. Cell migration and angiogenesis are linked to the integrin α1β1, which is coded by the ITGA1 and ITGB1 genes. Furthermore, the activation of the PI3K/AKT signaling pathway downstream plays a crucial role in regulating cell survival and migration. This factor suggests that the effect of MSCs on ECs may be achieved through the “COL6A2-ITGA1/ITGB1” pathway. This hypothesis was subsequently tested using in vitro experiments.

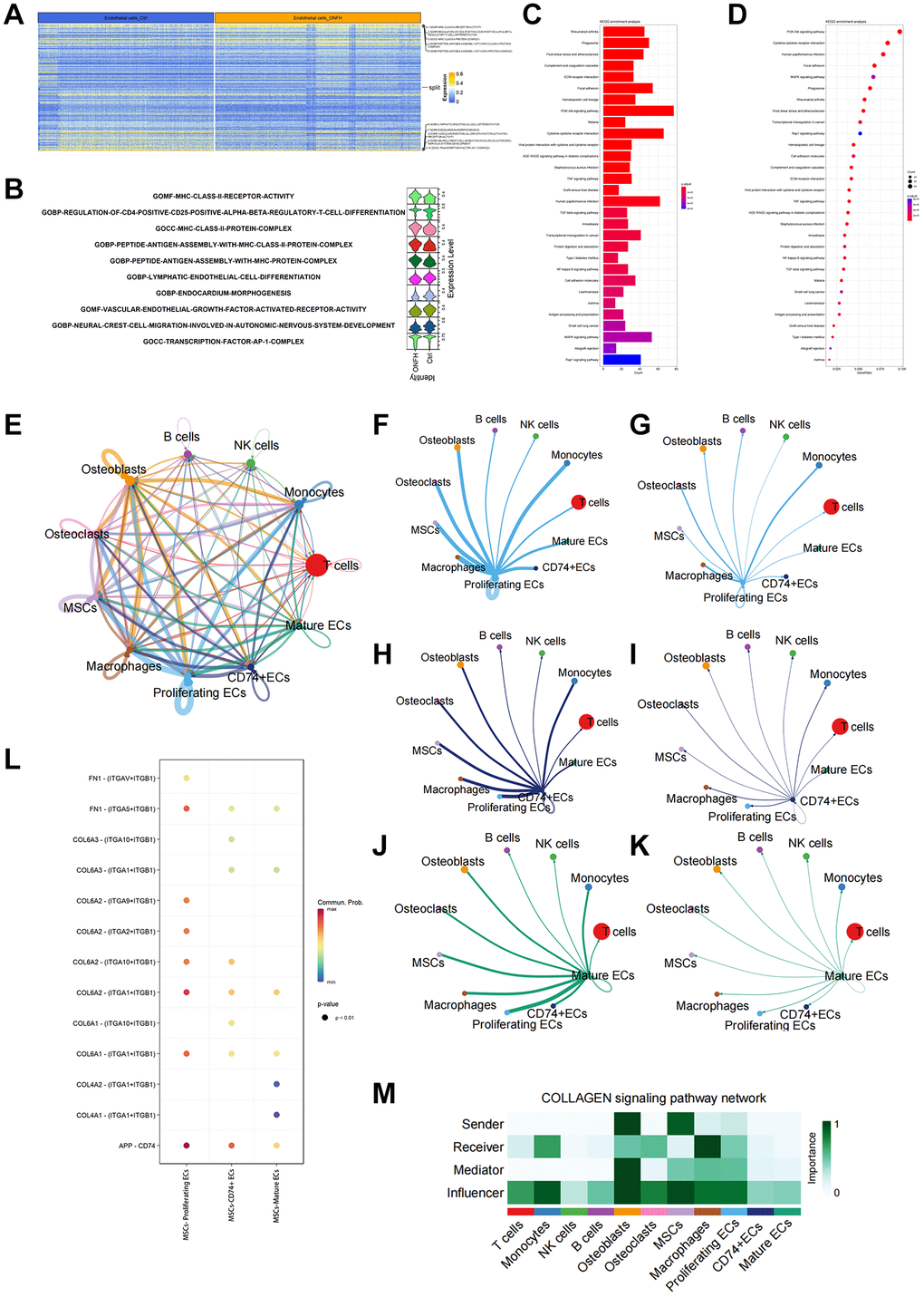

Figure 5. scRNA-seq analysis of the inter-cellular communication and DEGs in ECs. (A, B) GO enrichment analysis of DEGs in ECs. Heat map and violin plot showing top 5 up- or down-regulated signaling pathways in ECs. (C, D) KEGG enrichment analysis of DEGs in ECs. (E) Capacity for inter-cellular communication between ECs and other cells. (F, G) The counts and weights of ligand receptors among proliferating ECs and other cells. (H, I) The counts and weights of ligand receptors among CD74+ ECs and other cells. (J, K) The counts and weights of ligand receptors among mature ECs and other cells. (L) Ligand-receptor interactions between MSCs and ECs. (M) Inter-cellular communication in Collagen signaling pathway network.

Identification of the BMECs and the effect of Dex on the viability of BMECs

Primary human BMECs were extracted to understand the mechanism of action of hUCMSCs on steroid-induced ONFH. Under light microscopy, the cells were shown to be spindle-shaped or polygonal, and when the cells grew confluent, they presented a cobblestone morphology. Furthermore, angiogenic assays demonstrated the biological properties of primary cells for angiogenesis. The cells co-expressed CD31 and VWF by immunofluorescence detection, suggesting that the primary cells were BMECs (Figure 6A).

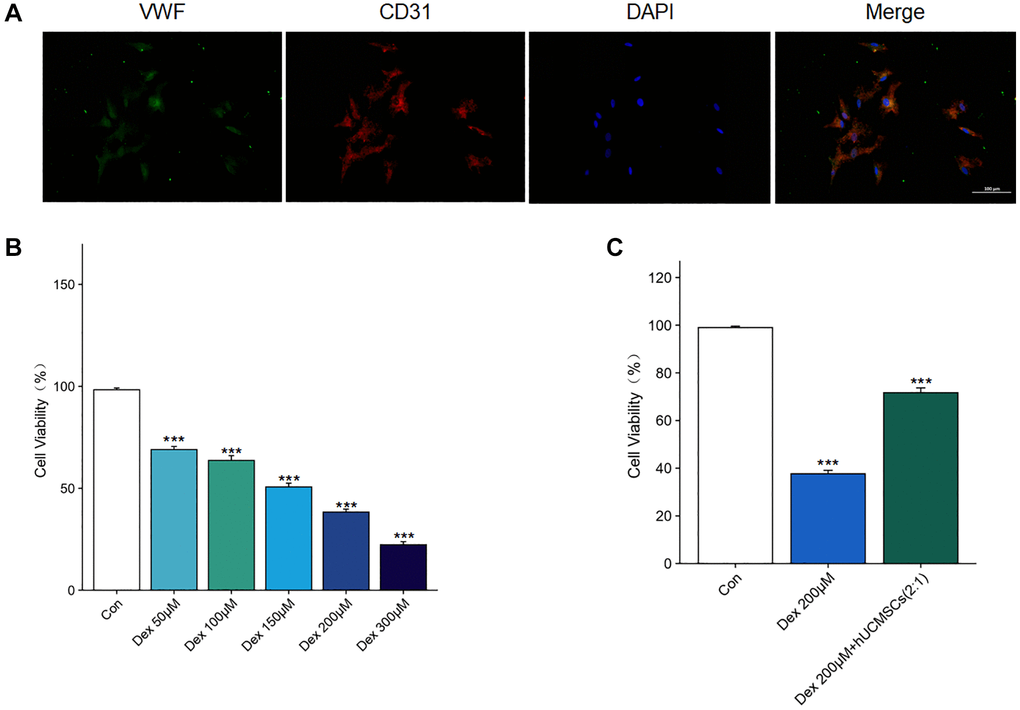

Figure 6. Identification of the BMECs and the effect of Dex on the viability of BMECs. (A) The immunofluorescence staining of CD31 and VWF was used to identify BMECs. (B) The effects of Dex (50, 100, 150, 200, 300 μM) on the cell viability were determined by CCK-8 assay. (C) The effects of hUCMSCs on the cell viability under 200 μM Dex stimulation were determined by CCK-8 assay. The data are presented as the means ± SD (n = 3). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the Con group.

The Dex treatment of BMECs for 24 h was detected using CCK-8. We found that Dex inhibited BMECs’ viability in a concentration-dependent manner. Moreover, when the Dex concentration was 200 μM (Figure 6B), the cell viability of Dex-treated BMECs was significantly inhibited. However, the inhibitory effect of Dex was reversed after co-culture with hUCMSCs (Figure 6C). Therefore, 200 μM Dex will be used for subsequent experiments.

hUCMSCs improved the migration ability and angioplasty of Dex-treated BMECs

To study the effects of hUCMSCs on the migration and angiogenic abilities of BMECs, we conducted wound healing and tube formation assays (Figure 7A, 7B). In the Dex group, Dex significantly inhibited the migration ability of BMECs compared with the Con group. In the Dex+hUCMSC group, the impaired migration ability of BMECs was reversed after co-culture with hUCMSCs (Figure 7C). In tube formation assays, Dex-treated BMECs had shorter tubes and fewer branching points, and the angiogenic ability of BMECs was enhanced after co-culture with hUCMSCs (Figure 7D, 7E).

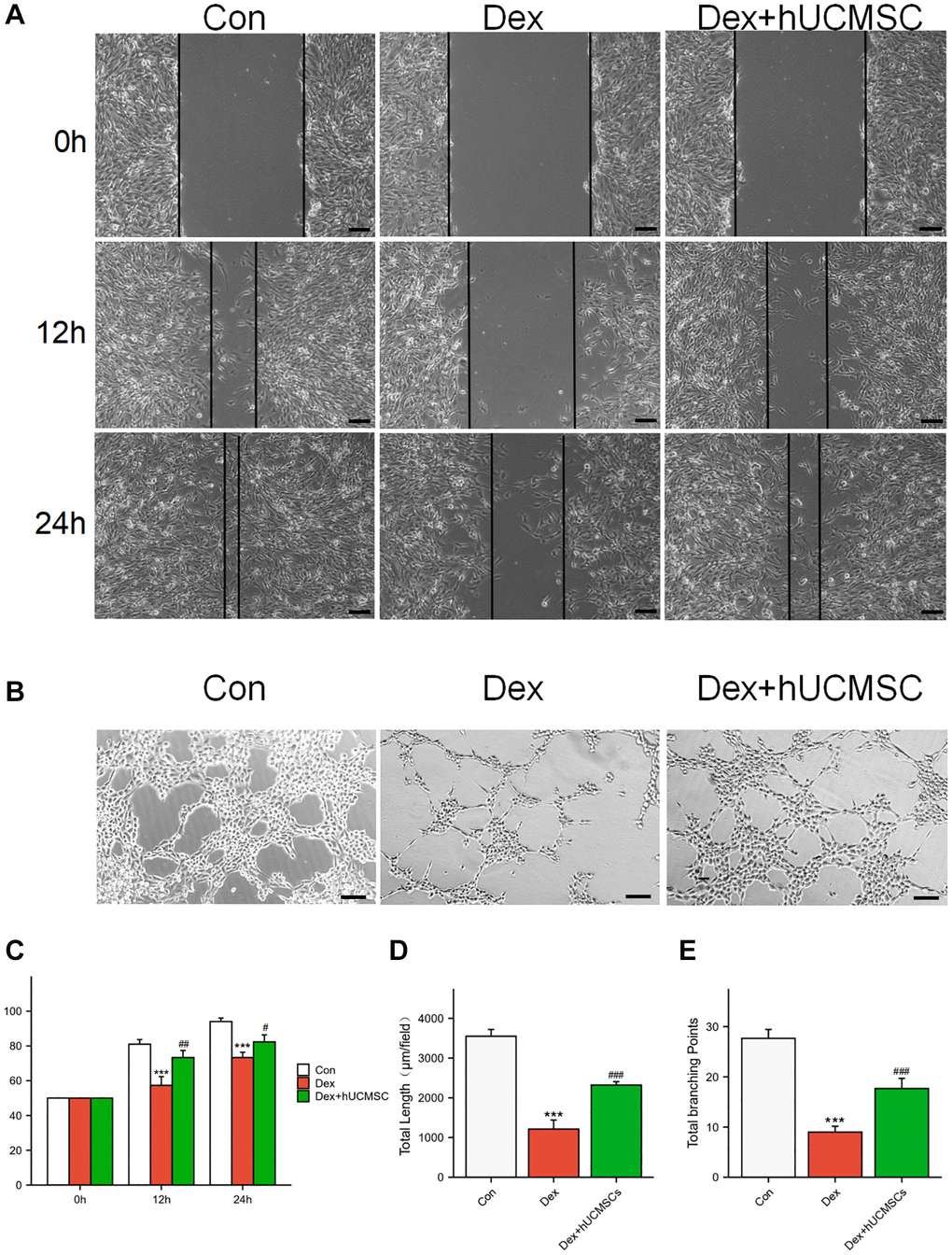

Figure 7. hUCMSCs improved the migration ability and angioplasty of Dex-treated BMECs. (A) Wound healing at 0, 12, and 24 h after Dex treatment. (B) Tube formation assay at 12 h after Dex treatment. (C) Scratch closure rate in three groups. (D, E) Total length and Total branching points in three groups. The data are presented as the means ± SD (n = 3). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the Con group. ^#p < 0.05, ^##p < 0.01, ^###p < 0.001, compared with the Dex group. Scale bars: 50 μm.

hUCMSCs played a protective role by regulating FAK/PI3K/AKT signaling pathway through COL6A2

Using ELISA analysis, we discovered that the concentration of COL6A2 was significantly higher in the culture supernatant of the Dex+hUCMSC group compared with that in the Con and Dex groups (Figure 8A). Furthermore, the level of p-FAK/FAK, p-PI3K/PI3K, and p-AKT/AKT was markedly increased in BMECs in the Dex+hUCMSC group compared with the Dex group (Figure 8B, 8C). To verify the role of COL6A2, we knocked down COL6A2 in hUCMSCs, and the results demonstrated that COL6A2 knockdown reversed the up-regulation of p-FAK/FAK, p-PI3K/PI3K, and p-AKT/AKT levels (Figure 8D). It was suggested that COL6A2 activated FAK/PI3K/AKT. Next, to verify whether the action of COL6A2 was mediated through integrin α1β1, we used Obtustatin (Ob) as a selective integrin α1β1 blocker [21]. The results demonstrated that p-FAK/FAK, p-PI3K/PI3K, and p-AKT/AKT levels were markedly down-regulated after Ob treatment (Figure 8E). It is suggested that the activation of the FAK/PI3K/AKT signaling pathway by COL6A2 is mediated through integrin α1β1. Furthermore, COL6A2 knockdown reversed the protective effect of hUCMSCs in wound healing and tube formation assay (Figure 8F–8J). These results suggested that hUCMSCs can promote the migration and angiogenesis of Dex-treated BMECs in vitro, and the mechanism of action is that hUCMSCs secrete COL6A2 to activate FAK/PI3K/AKT signaling pathway through integrin α1β1 (Figure 9).

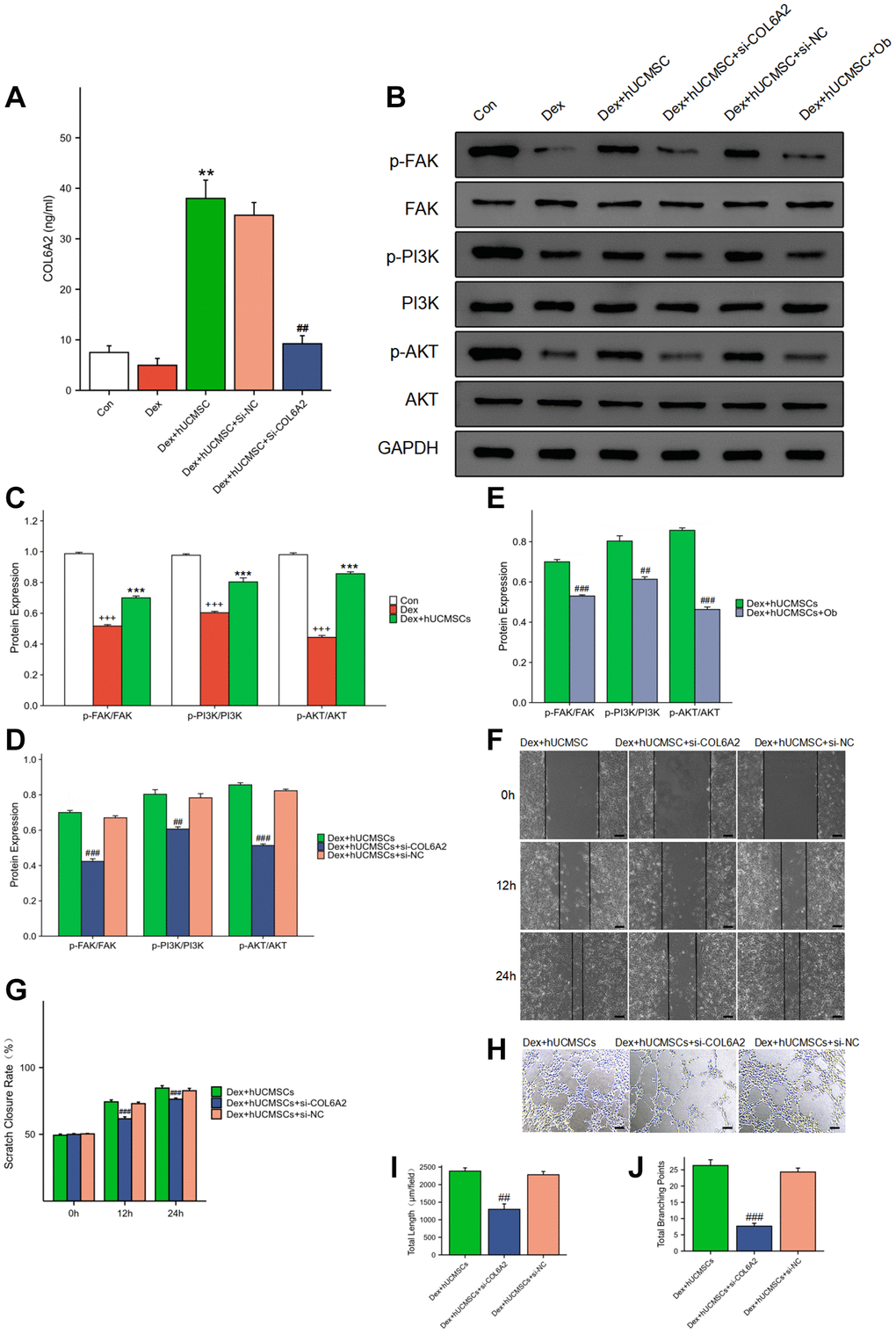

Figure 8. hUCMSCs played a protective role by regulating FAK/PI3K/AKT signaling pathway through COL6A2. (A) COL6A2 levels in the cell supernatants, assessed via ELISA. (B–E) The protein level of p-FAK, FAK, p-PI3K, PI3K, p-AKT, AKT and GAPDH in BMECs by Western blot. (F) Wound healing assay at 0, 12, and 24 h after co-culture with hUCMSCs. (G) Scratch closure rate in three groups. (H) Tube formation assay at 12 h after co-culture with hUCMSCs. (I, J) Total length and Total branching points in three groups. The data are presented as the means ± SD (n = 3). ⁺p < 0.05, ⁺⁺p < 0.01, ⁺⁺⁺p < 0.001, compared with the Con group. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001, compared with the Dex group. ^#p < 0.05, ^##p < 0.01, ^###p < 0.001, compared with the Dex+hUCMSC group. Scale bars: 50 μm.

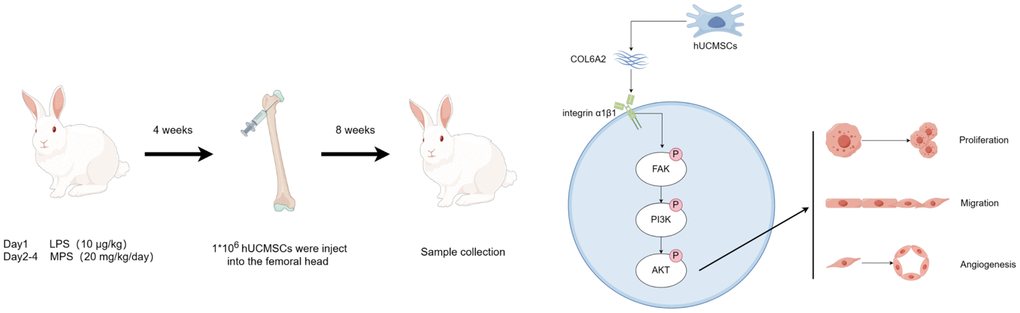

Figure 9. hUCMSCs promote steroid-induced ONFH repair by improving BMECs function.
