Research Paper Volume 8, Issue 2 pp 291—303

The signaling pathways by which the Fas/FasL system accelerates oocyte aging

class="figure-viewer-img"

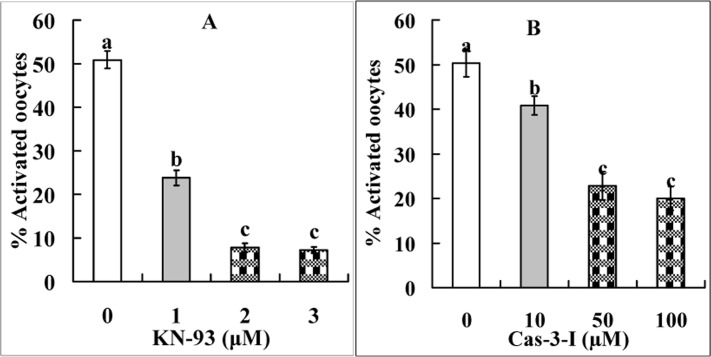

Figure 3. Ethanol activation rates after mouse oocytes collected 13 h post hCG were aged for 9 h in FCM containing different concentrations of CaMKII inhibitor KN-93 (Panel A) or caspase-3 inhibitor VII (Panel B). Each treatment was repeated 4 times with each replicate containing about 30 oocytes. a-c: Values without a common letter above their bars differ significantly (P < 0.05) within graphs.
