Figure 2 — Haploinsufficiency of the Myc regulator Mtbp extends survival and delays tumor development in aging mice

Research Paper|Volume 8, Issue 10|pp. 2590–2602

Haploinsufficiency of the Myc regulator Mtbp extends survival and delays tumor development in aging mice

100%

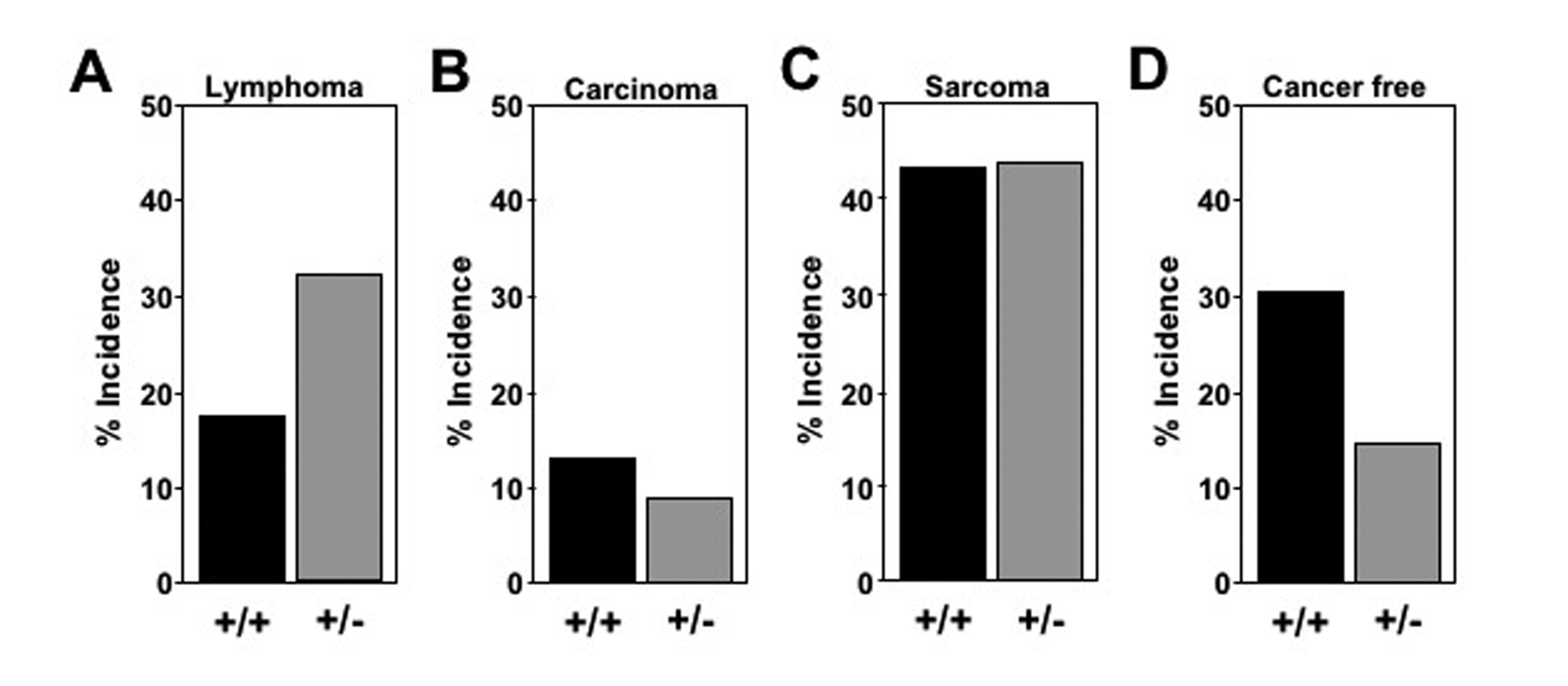

Figure 2.Altered tumor spectrum in Mtbp^+/- mice. Pathological/histological evaluation of tissues at time of death of Mtbp^+/- n=23 and Mtbp^+/- n=34 littermates analyzed. The percentage of mice with each diagnosis plotted (A-D).
