Research Paper Volume 9, Issue 4 pp 1219—1232

The differential spatiotemporal expression pattern of shelterin genes throughout lifespan

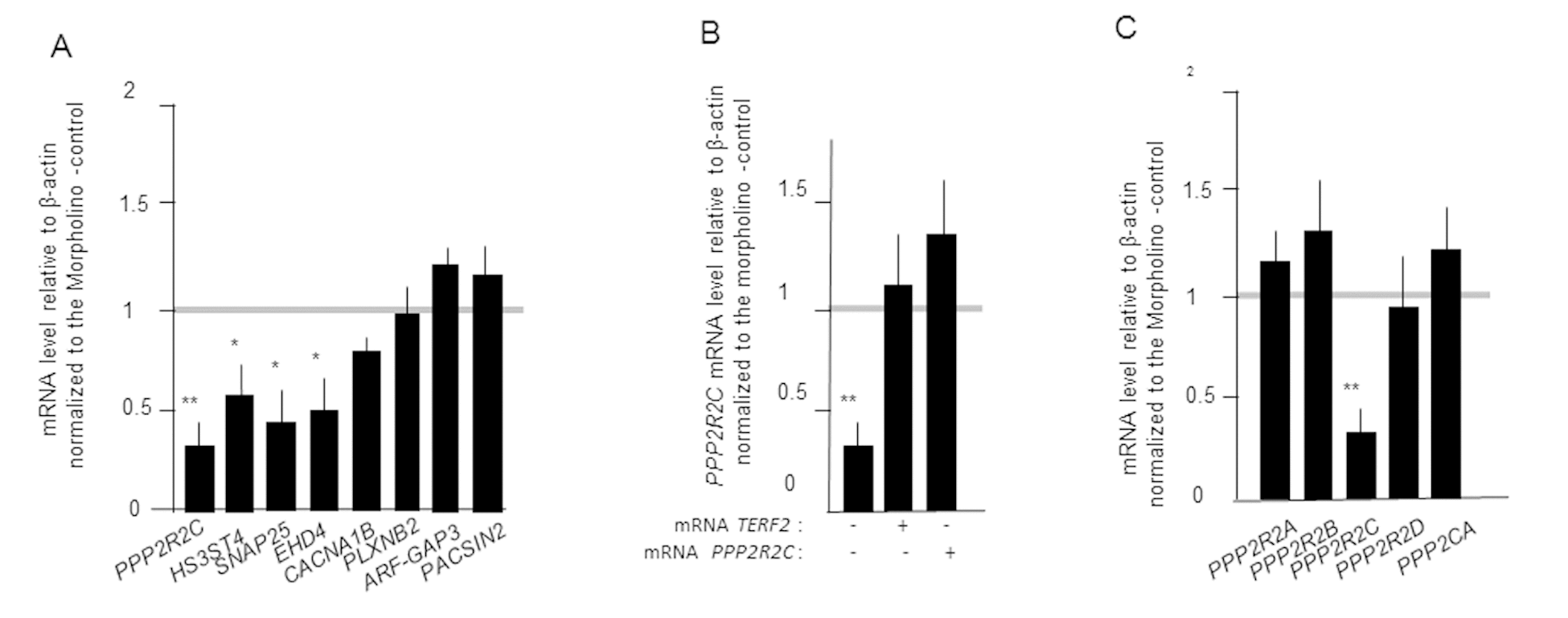

Figure 6. TERFA activates the expression of neuronal gene in zebrafish embryos. (A) Gene expression measured by RT-qPCRs in zebrafish embryos 24h after microinjection of MO targeting TERFA gene. (B) PPP2R2C expression upon co-injection of TERFA mRNA or PPP2R2C mRNA in zebrafish embryos after microinjection of MO targeting TERFA gene. (C) Expression of PP2A subunit genes in zebrafish embryos 24h after microinjection of MO targeting TERFA gene. Each qRT-PCR was repeated three times and the mRNA level of the PP2A genes was expressed relative to β-actin and normalized to the Morpholino -control. Data are mean ± SEM. *p<0.05, **p<0.01, ***p<0.001.
