Research Paper Volume 10, Issue 3 pp 322—338

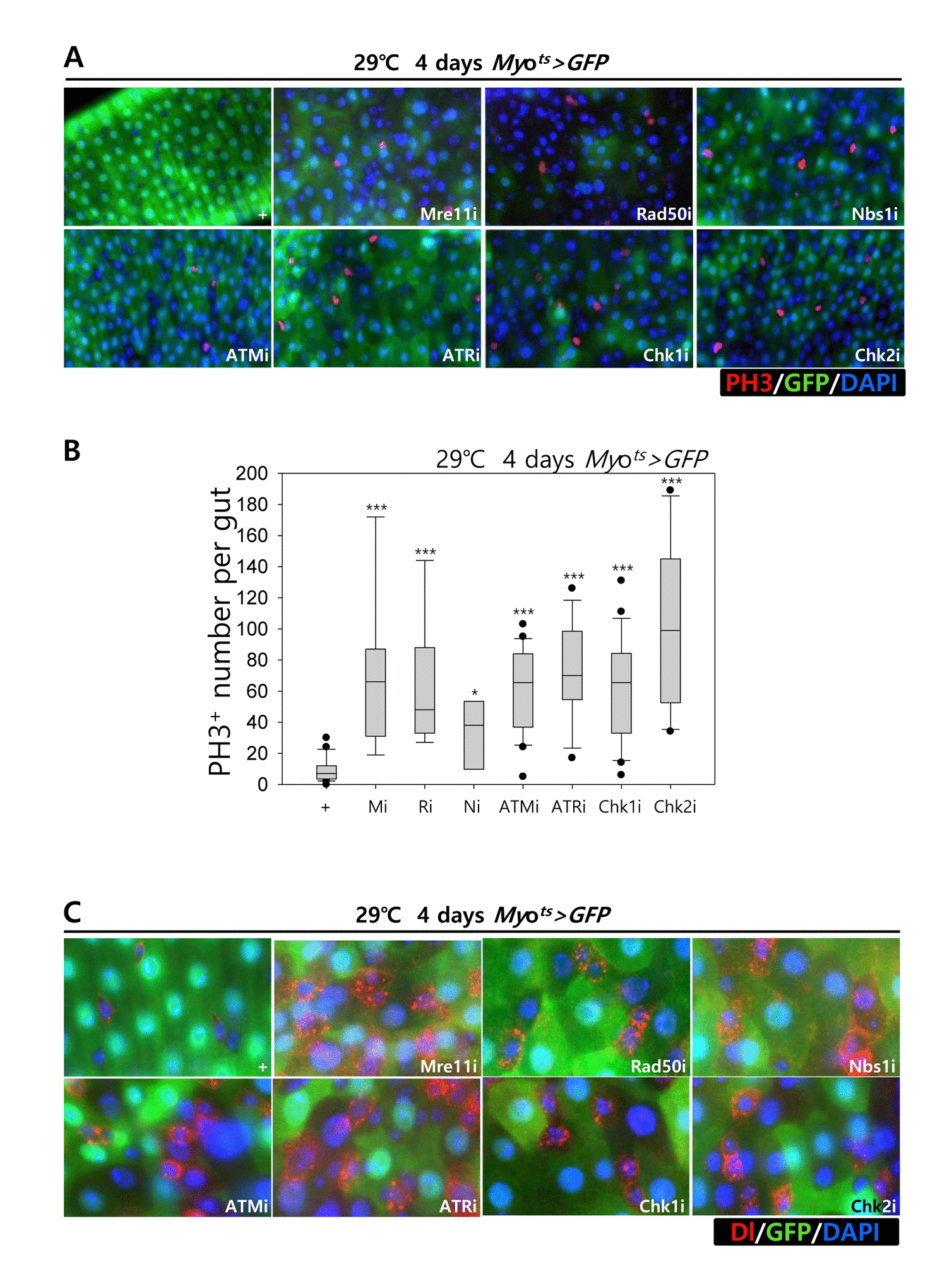

Figure 2. Effects of the knockdown of EC-specific DNA damage response (DDR)-related factors on ISC proliferation. (A-B) EC-specific knockdown of Mre11, Rad50, Nbs1, ATM, ATR, Chk1, or Chk2 induce ISC division. Flies carrying Myo^ts>GFP, Myo^ts>GFP+Mre11i, Myo^ts>GFP+Rad50i, Myo^ts>GFP+Nbs1i, Myo^ts>GFP+ATMi, Myo^ts>GFP+ATRi, Myo^ts>GFP+Chk1i, or Myo^ts>GFP+Chk2i genotypes were cultured at 29 °C for 4 days. The guts of flies were dissected and labeled with anti-GFP (green) and anti-PH3 (red) antibodies and DAPI (blue). Original magnification is 400×. (B) A graph showing the PH3⁺ cell number in the midgut with an EC-specific knockdown of Mre11, Rad50, Nbs1, ATM, ATR, Chk1, or Chk2. The gut specimens of Myo^ts>GFP, Myo^ts>GFP+Mre11i, Myo^ts>GFP+Rad50i, Myo^ts>GFP+Nbs1i, Myo^ts>GFP+ATMi, Myo^ts>GFP+ATRi, Myo^ts>GFP+Chk1i, or Myo^ts>GFP+Chk2i flies (kept at 29 °C for 4 days) were labeled with anti-GFP (green) and anti-PH3 (red) antibodies and DAPI (blue). The numbers of PH3⁺ cells were counted in the whole gut under a microscope. Data (mean±SE) in Myo^ts>GFP, Myo^ts>GFP+Mre11i, Myo^ts>GFP+Rad50i, Myo^ts>GFP+Nbs1i, Myo^ts>GFP+ATMi, Myo^ts>GFP+ATRi, Myo^ts>GFP+Chk1i, or Myo^ts>GFP+Chk2i flies were collated from 21, 22, 13, 20, 9, 9, 26, and 10 guts, respectively. p-values were calculated using student’s t-test. *p < 0.01, ***p < 0.0001. (C) EC-specific knockdown of Mre11, Rad50, Nbs1, ATM, ATR, Chk1, or Chk2 increased the number of Delta-positive cells. Flies carrying Myo^ts>GFP, Myo^ts>GFP+Mre11i, Myo^ts>GFP+Rad50i, Myo^ts>GFP+Nbs1i, Myo^ts>GFP+ATMi, Myo^ts>GFP+ATRi, Myo^ts>GFP+Chk1i, or Myo^ts>GFP+Chk2i genotypes were cultured at 29 °C for 4 days. The guts of flies were dissected and labeled with anti-GFP (green) and anti-Delta (red) antibodies and DAPI (blue). Original magnification is 400×.
