Research Paper Volume 10, Issue 9 pp 2356—2366

A seven-long noncoding RNA signature predicts overall survival for patients with early stage non-small cell lung cancer

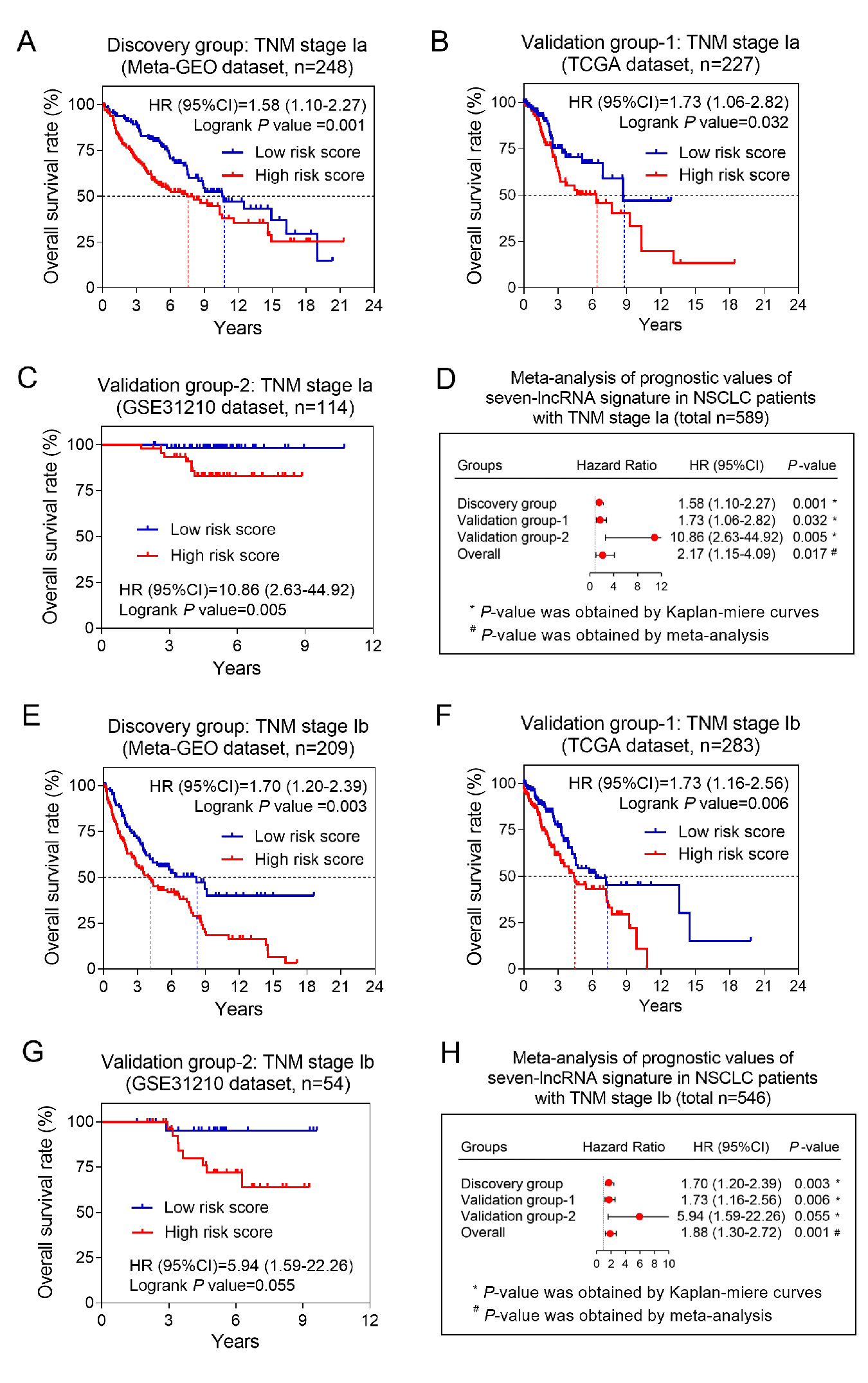

Figure 3. The association between seven-lncRNA signature and overall survival in patients with stage I. The Kaplan-Meier survival curves of discovery group (A), validation group-1 (B) and validation group-2 (C) were plotted, and meta-analysis (D) was conducted in patients with stage Ia. The similar results were obtained from the patients with stage Ib in discovery group (E), validation group-1 (F) and validation group-2 (G), and the prognostic meta-analysis (H) was also conducted.
