Research Paper Volume 11, Issue 13 pp 4706—4719

Tea polyphenol protects against cisplatin-induced meiotic defects in porcine oocytes

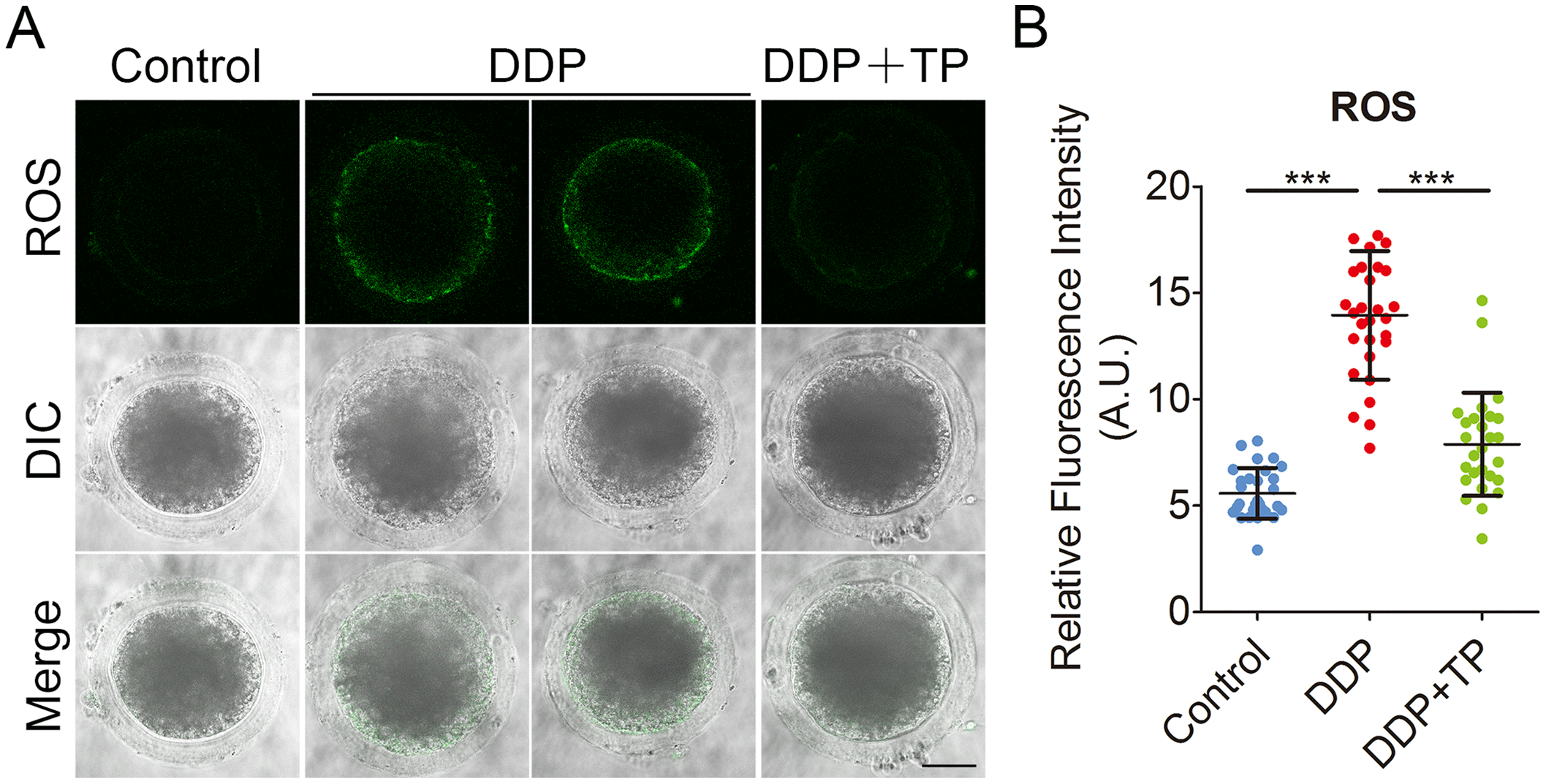

Figure 6. Effects of TP on the ROS level in DDP-exposed porcine oocytes. (A) Representative images of ROS levels in control, DDP-exposed and TP-supplemented oocytes. Scale bar, 35 μm (B) The fluorescence intensity of ROS in control, DDP-exposed and TP-supplemented oocytes were measured by the confocal microscopy using identical settings and parameters. Data were presented as mean percentage (mean ± SD) of at least three independent experiments. ***P < 0.001.
