Research Paper Volume 12, Issue 2 pp 1256—1271

Ubiquinol-10 delays postovulatory oocyte aging by improving mitochondrial renewal in pigs

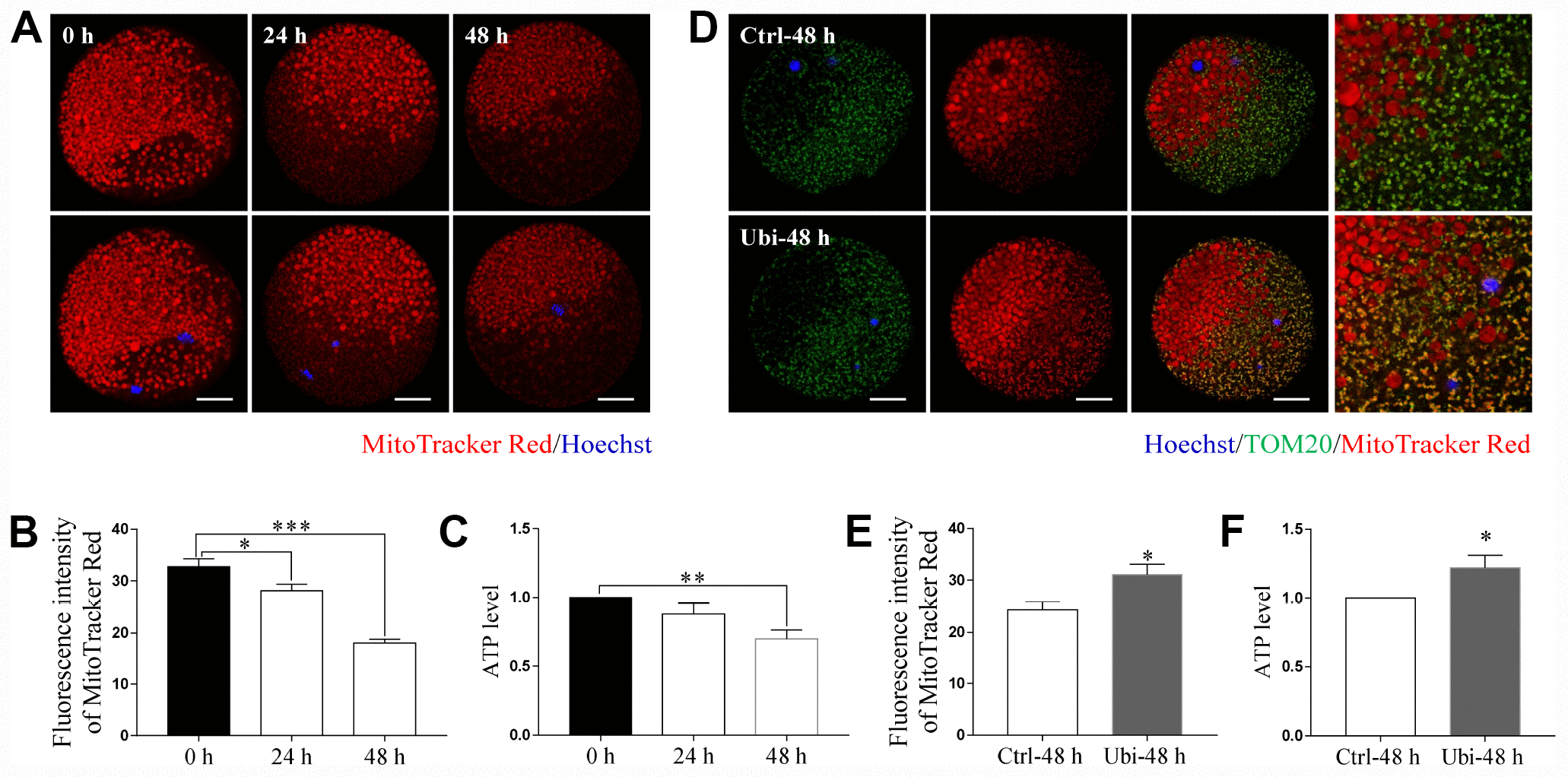

Figure 3. Ubiquinol-10 rescued aging-induced mitochondrial dysfunction. Images (A) and fluorescence intensity (B) of MitoTracker Red in aging 0 h, 24 h, and 48 h oocytes. Scale bars indicate 20 μm. (C) ATP levels of oocytes in aging 0 h, 24 h, and 48 h groups. (D) Colocalization of TOM20 and MitoTracker Red in Ctrl-48 h and Ubi-48 h oocytes. Scale bars indicate 20 μm. (E) Fluorescence intensity of MitoTracker Red in Ctrl-48 h and Ubi-48 h oocytes. (F) ATP levels in Ctrl-48 h and Ubi-48 h oocytes. *p < 0.05, **p < 0.01, and ***p < 0.001 indicate significant differences.
