Research Paper Volume 12, Issue 22 pp 23146—23164

pSynGAP1 disturbance-mediated hippocampal oscillation network impairment might contribute to long-term neurobehavioral abnormities in sepsis survivors

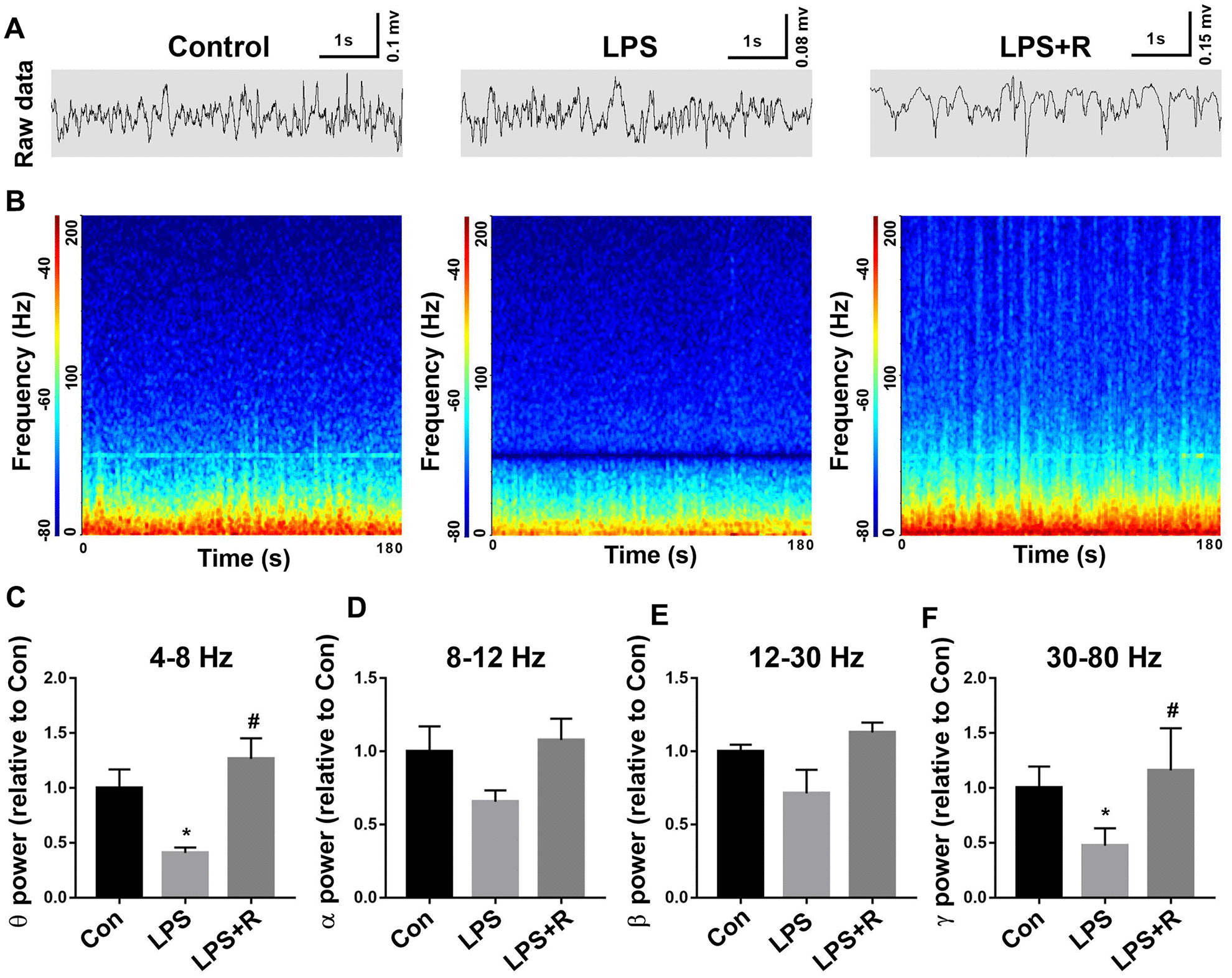

Figure 8. Decreased gamma oscillation in the CA1 of the hippocampus following LPS challenge was prevented by roscovitine. (A, B) Example recordings and example power spectra in the hippocampal. (CF) Summary of LFP power, including θ, α, β, and γ oscillation. The theta and gamma oscillation powers were significantly lower in LPS group when compared with control group, which were prevented by roscovitine. Data are shown as mean ± SEM, n = 4, *P < 0.05 vs control group; #P < 0.05 vs LPS group. LPS, lipopolysaccharide; R, roscovitine.
