Research Paper Volume 12, Issue 24 pp 25614—25642

Identification of prognostic chromatin-remodeling genes in clear cell renal cell carcinoma

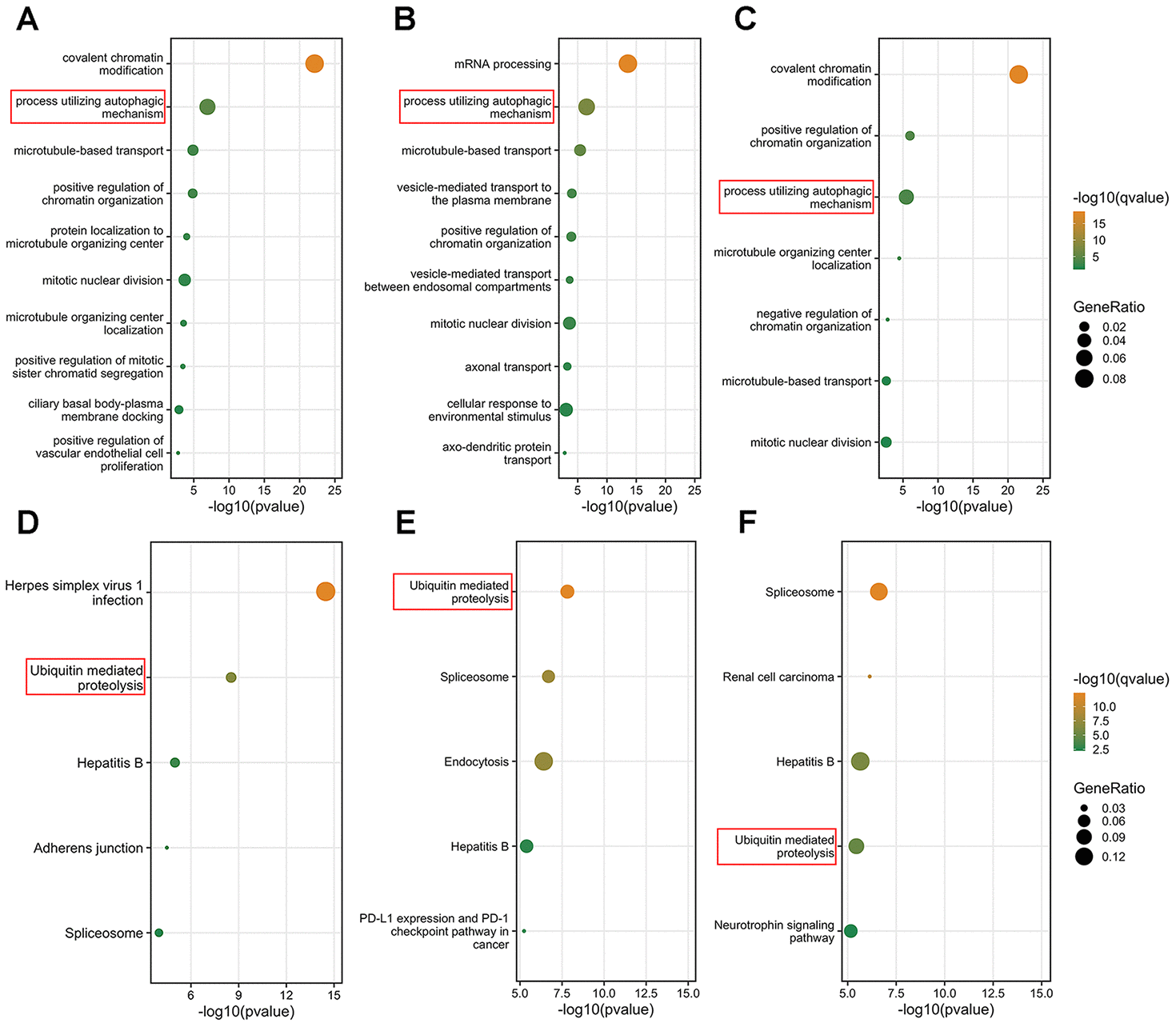

Figure 5. Function prediction of three characterized chromatin-remodeling factors. (AC) Top 10 biological process enrichment results of genes in which correlation with BPTF, CNOT1 or SIN3A were greater than 0.5. (DF) Top 5 KEGG pathway enrichment results of genes which correlation with BPTF, CNOT1 and SIN3A were greater than 0.5. The results were ranked by the enrichment scores and displayed corresponding to -log10(q-value) and gene ratio enriched in the selected pathways.
