Research Paper Volume 13, Issue 7 pp 9679—9692
Expression and molecular profiles of the AlkB family in ovarian serous carcinoma

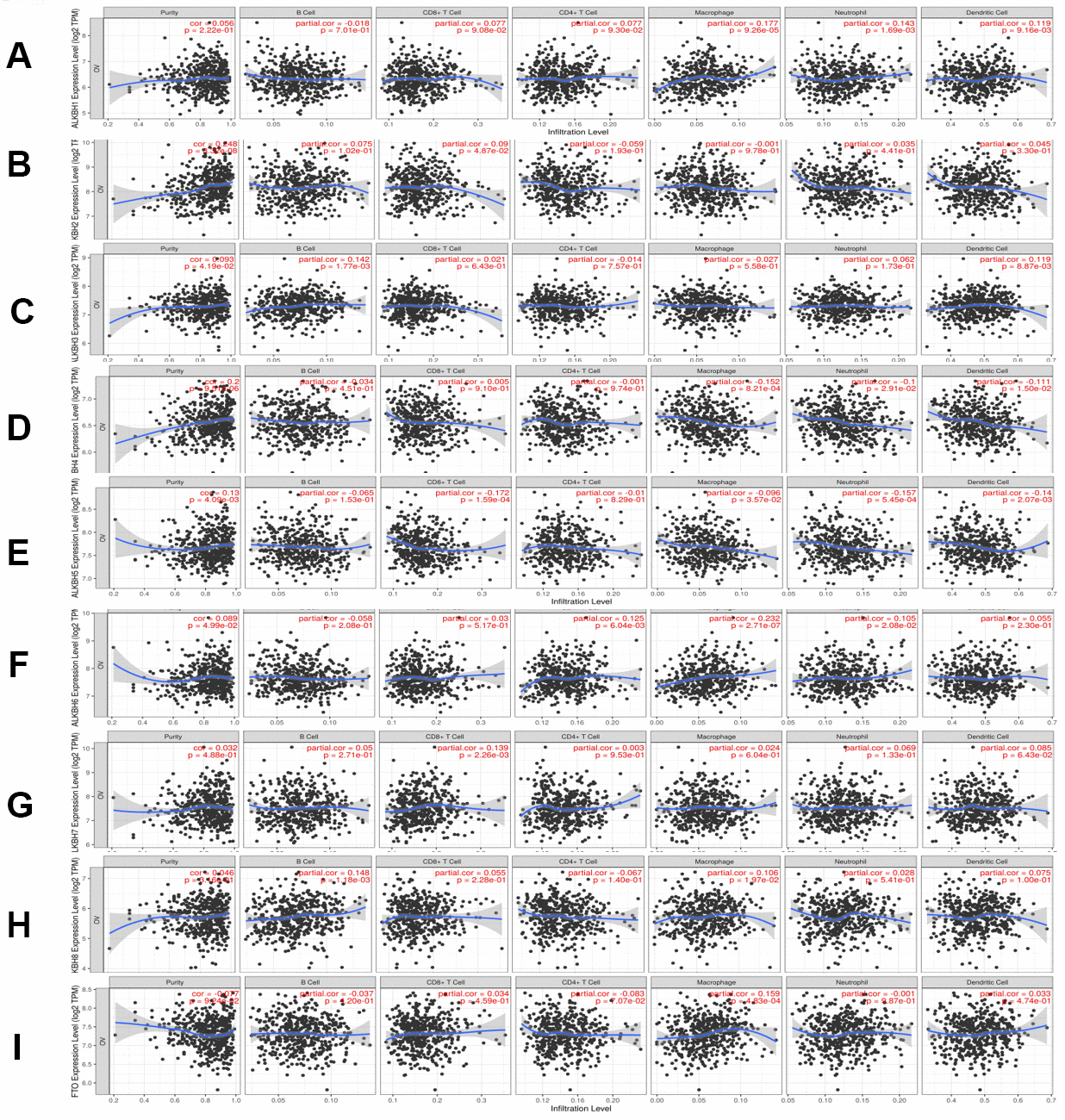

Figure 8. The relationship between immune cell infiltration and the expression of the AlkB family. The Timer database was used to analyze the effect of (A) ALKBH1, (B) ALKBH2, (C) ALKBH3, (D) ALKBH4, (E) ALKBH5, (F) ALKBH6, (G) ALKBH7, (H) ALKBH8 and (I) FTO on the abundance of immune cells in OV patients.
