Research Paper Volume 13, Issue 9 pp 12929—12954

Prognostic and immunological potential of PPM1G in hepatocellular carcinoma

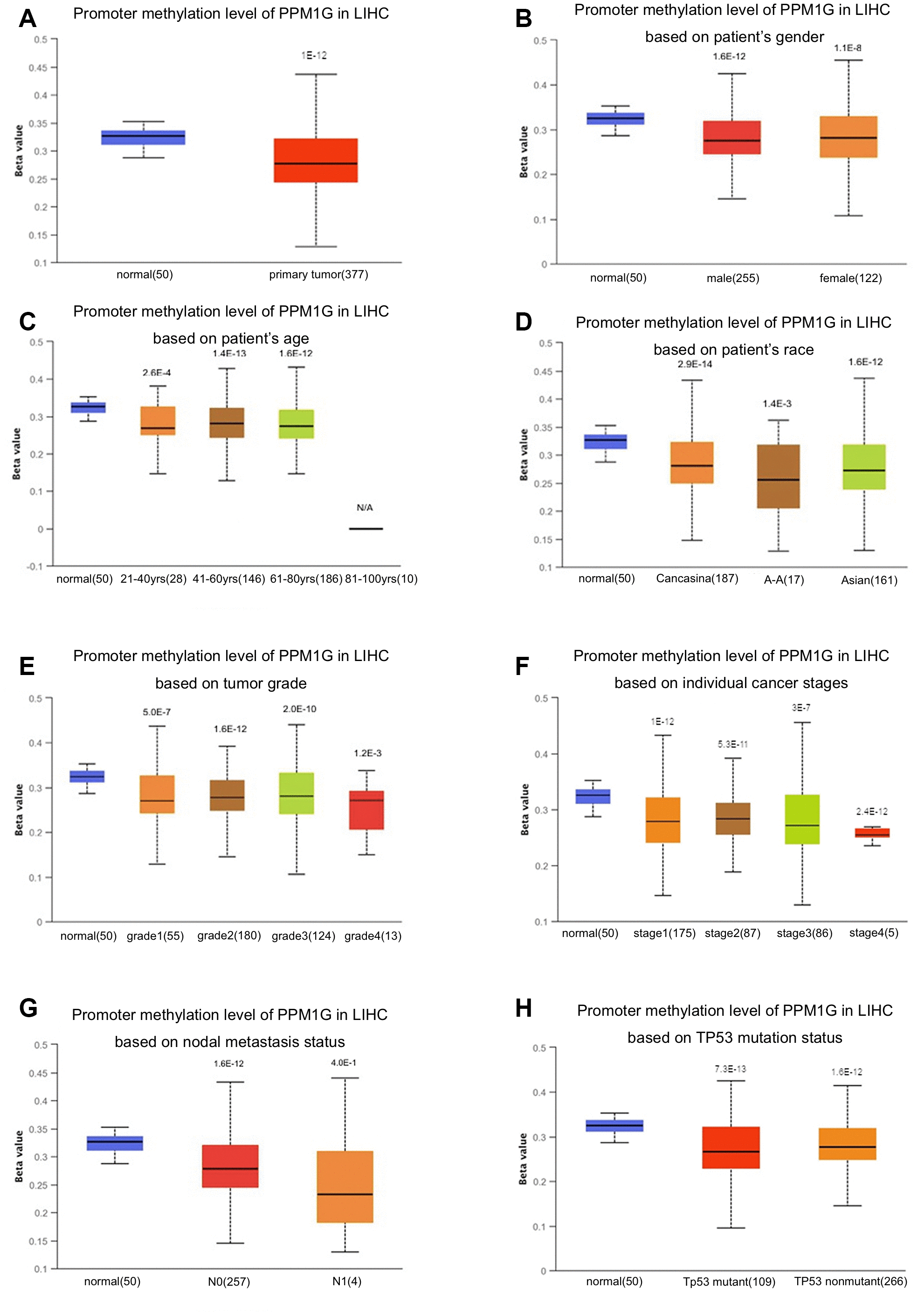

Relationship of PPM1G promoter methylation level with clinical characteristics in LIHC (UALCAN). Box-whisker plots showing the relationship between PPM1G promoter methylation in LIHC (different color plots) and normal (blue plots) tissues and patient characteristics: (A) normal vs. primary tumor, (B) patient sex, (C) patient age, (D) patient race, (E) tumor grade, (F) individual cancer stage, (G) nodal metastasis status, and (H) TP53 mutation status. The beta value indicates the level of DNA methylation (ranging from 0 (unmethylated) to 1 (fully methylated)).

Figure 4. Relationship of PPM1G promoter methylation level with clinical characteristics in LIHC (UALCAN). Box-whisker plots showing the relationship between PPM1G promoter methylation in LIHC (different color plots) and normal (blue plots) tissues and patient characteristics: (A) normal vs. primary tumor, (B) patient sex, (C) patient age, (D) patient race, (E) tumor grade, (F) individual cancer stage, (G) nodal metastasis status, and (H) TP53 mutation status. The beta value indicates the level of DNA methylation (ranging from 0 (unmethylated) to 1 (fully methylated)).
