Hesperidin suppresses ERS-induced inflammation in the pathogenesis of non-alcoholic fatty liver disease

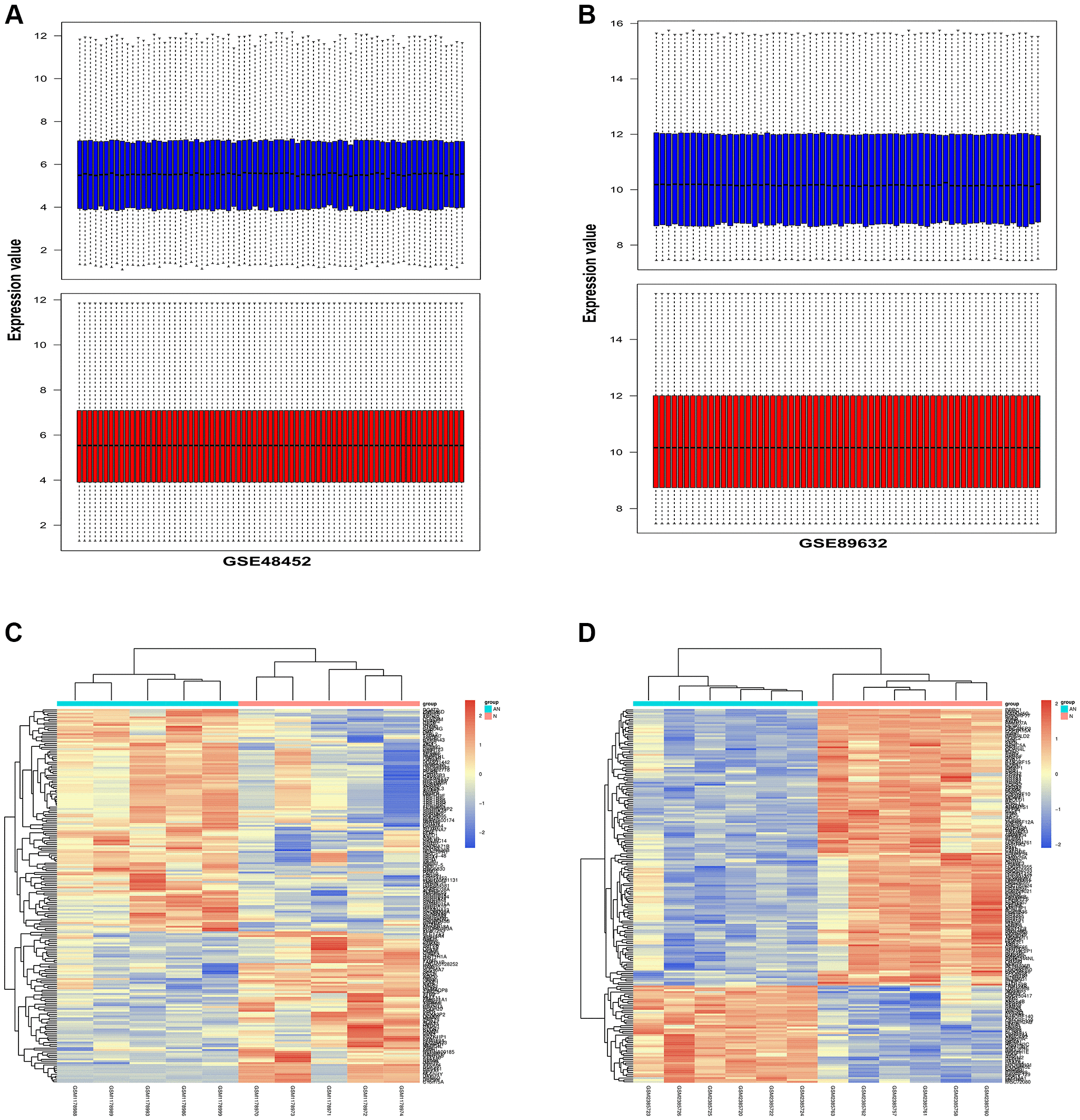

Figure 2. Identification of DEGs in two NAFLD-related GEO datasets. NAFLD-related gene expression profiles GSE48452 and GSE89632 were employed to detect the DEGs between NAFLD patients and healthy donors. (A) The results of pre-standardization and post-standardization based on GSE48452 were exhibited. (B) The results of pre-standardization and post-standardization based on GSE89632 were exhibited. (C) Heap map exhibited the upregulated and downregulated DEGs in GSE48452. X-axis exhibited samples. Y-axis exhibited the genes. The left dendrogram exhibited gene clustering. The upper dendrogram exhibited the sample clustering. (D) Heap map exhibited the upregulated and downregulated DEGs in GSE89632. X-axis exhibited samples. Y-axis exhibited the genes. The left dendrogram exhibited gene clustering. The upper dendrogram exhibited the sample clustering.
