Profiling of a novel circadian clock-related prognostic signature and its role in immune function and response to molecular targeted therapy in pancreatic cancer

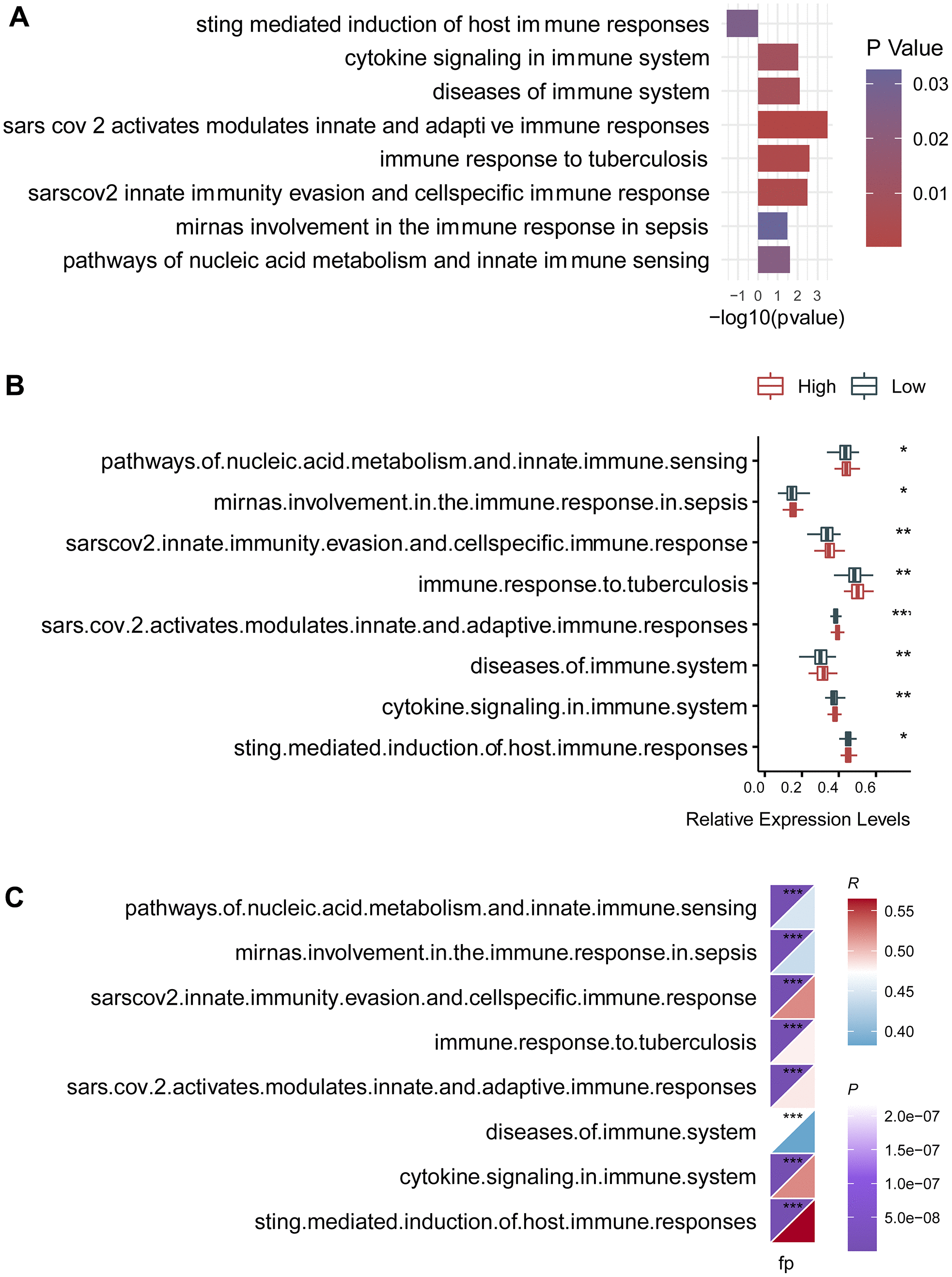

Figure 5. Association of the circadian clock-related gene signature with intra-tumor immune signaling pathways. (A) There were eight differentially expressed signaling pathways. (B) Box plot demonstrated a consistent change in the expression levels of these immune pathways. (C) The risk score was also significantly correlated with these eight immune pathways.
