Research Paper Volume 15, Issue 5 pp 1475—1495
Identification MNS1, FRZB, OGN, LUM, SERP1NA3 and FCN3 as the potential immune-related key genes involved in ischaemic cardiomyopathy by random forest and nomogram

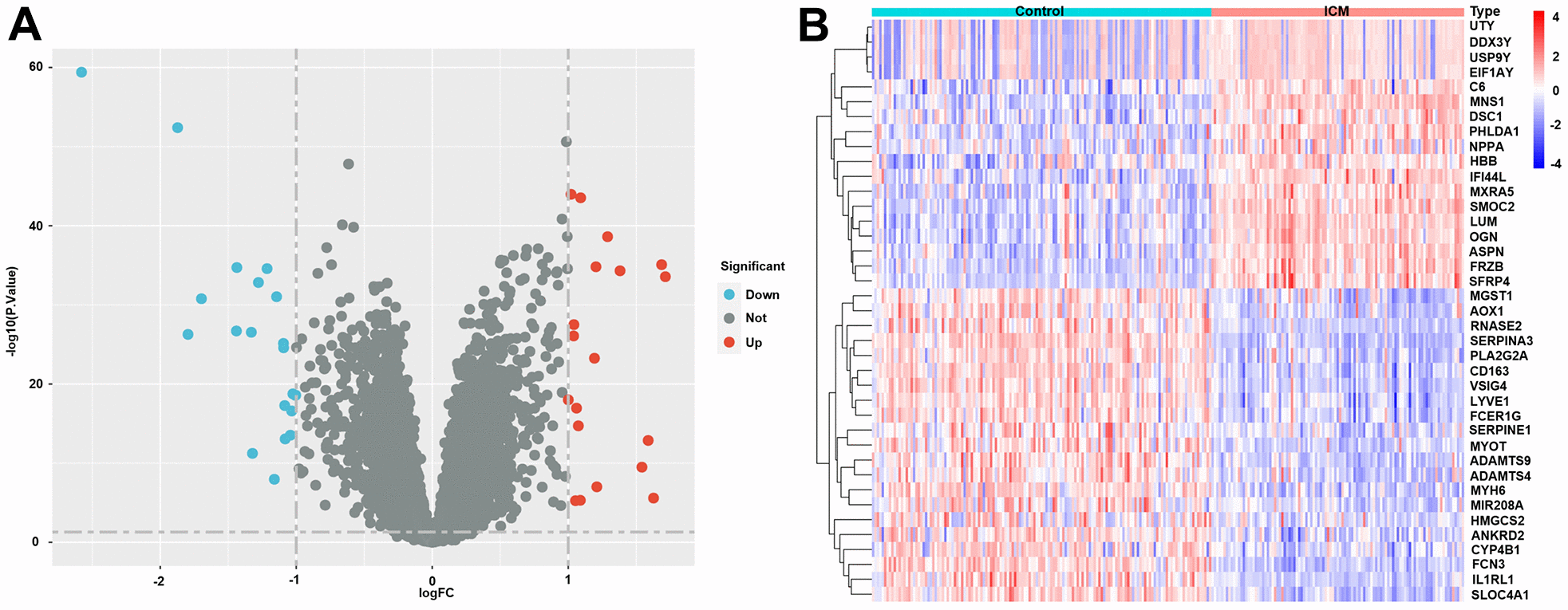

Figure 2. Differentially expressed genes (DEGs) in ICM and healthy samples. (A) Volcano plot of the 39 DEGs. Red dots represent significantly upregulated genes, and blue dots represent significantly downregulated genes. (B) Heatmap of the 39 lipid-related DEGs in ICM and control samples. Red blocks indicate high-expression genes, and blue blocks indicate low-expression genes.
