Swertia cincta Burkill alleviates LPS/D-GalN-induced acute liver failure by modulating apoptosis and oxidative stress signaling pathways

Back to articleFigure 3(3 of 12)

100%

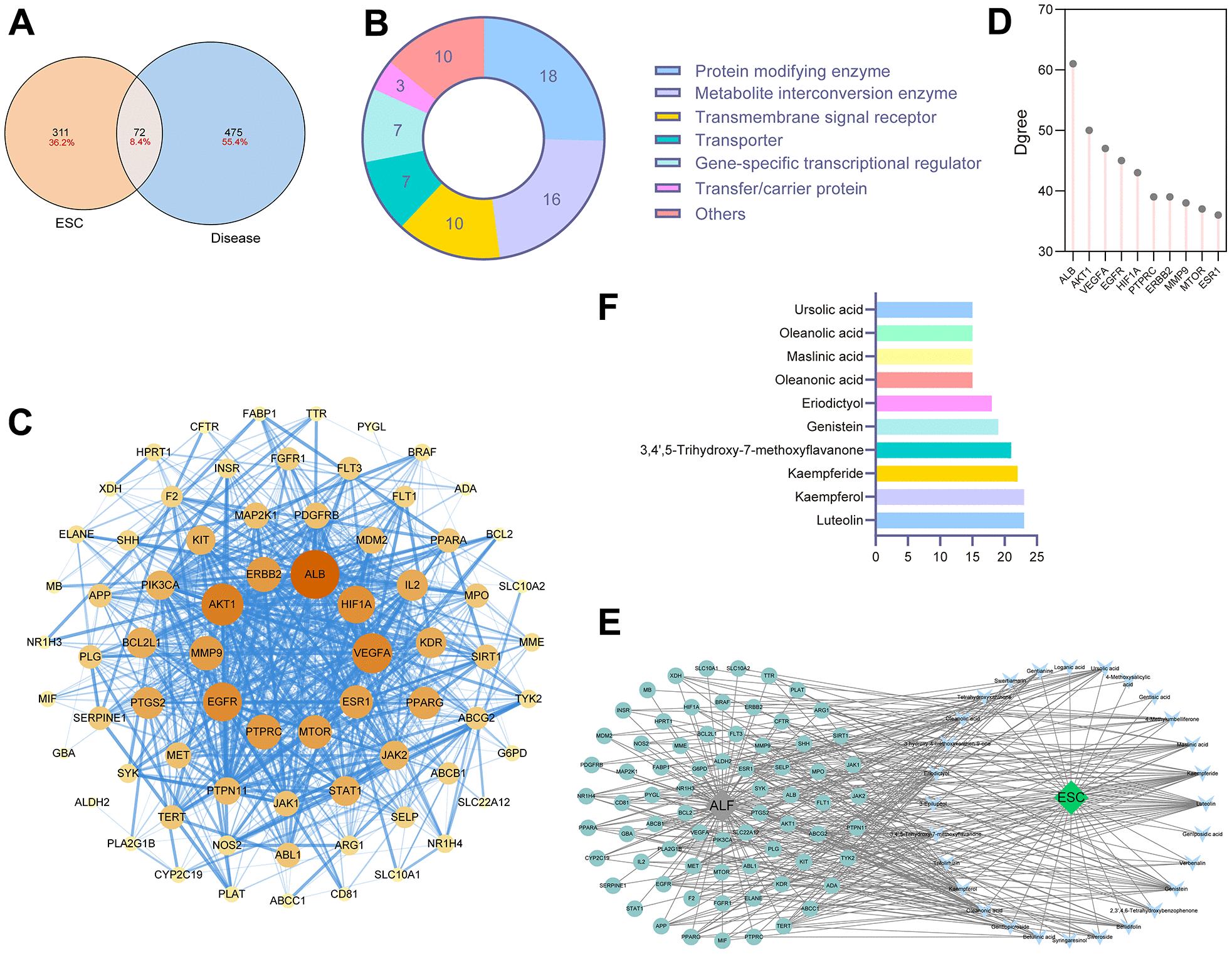

Figure 3.Network pharmacology analysis for components in ESC. (A) The intersection of ESC targets and ALF targets. (B) The protein classification of targets of ESC against ALF. (C) PPI networks of ESC against ALF-related targets. (D) The degree score of core targets. (E) ESC-ingredient-target network. (F) Top 10 key components in ESC.
