Research Paper|Volume 15, Issue 14|pp. 7056–7083
Identifying the oncogenic roles of FAP in human cancers based on systematic analysis
Back to articleFigure 2(2 of 13)
100%
Figure 2

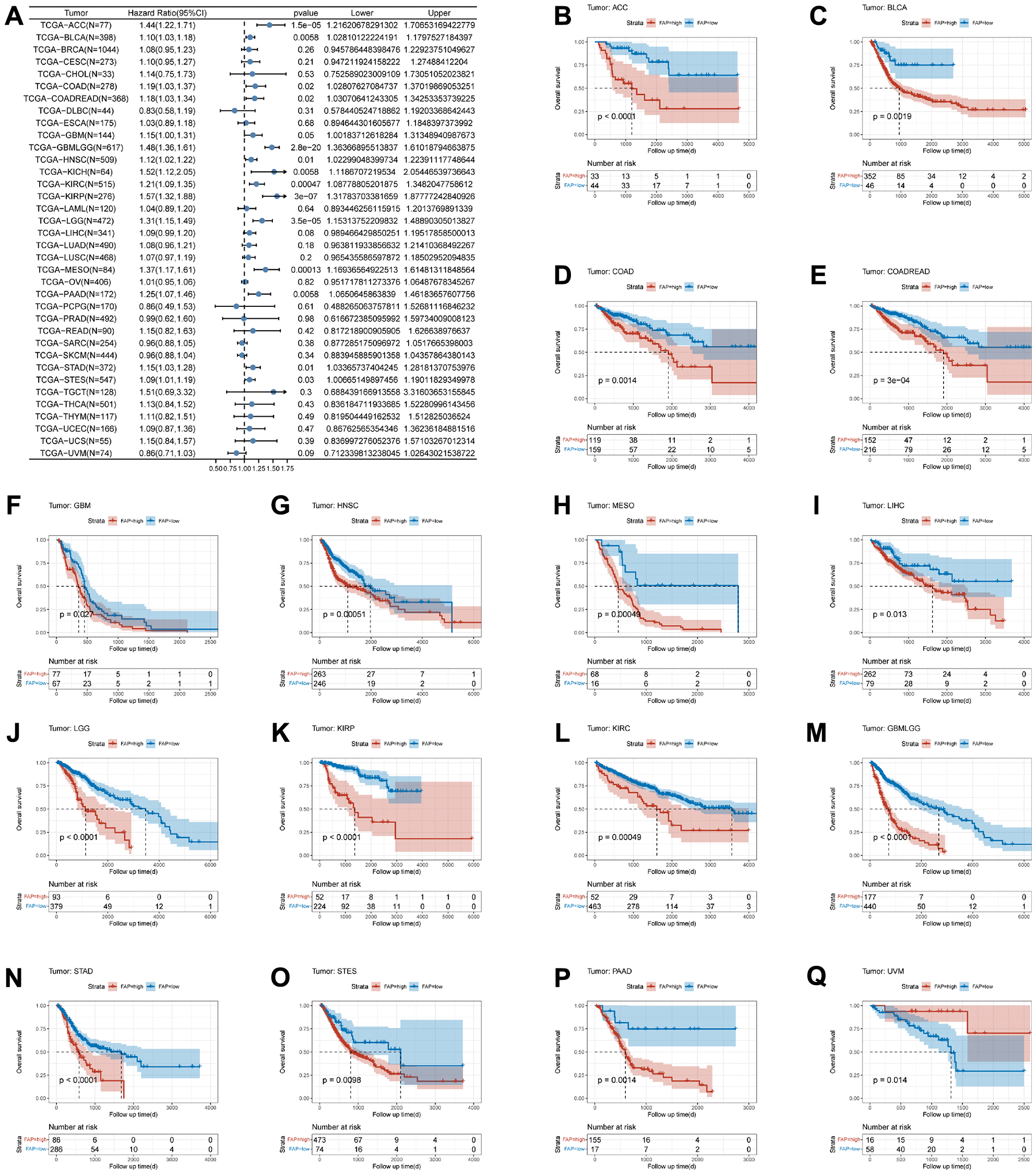

Figure 2.Association between FAP expression and overall survival (OS). (A) Forest plot of association of FAP expression and OS in pan-cancer. (B–Q) Kaplan-Meier analysis of the association between FAP expression and OS.
Figure 2 — Identifying the oncogenic roles of FAP in human cancers based on systematic analysis | Aging
