Figure 7 — SLC20A1 is a prospective prognostic and therapy response predictive biomarker in head and neck squamous cell carcinoma

Research Paper|Volume 16, Issue 5|pp. 4423–4444

SLC20A1 is a prospective prognostic and therapy response predictive biomarker in head and neck squamous cell carcinoma

100%

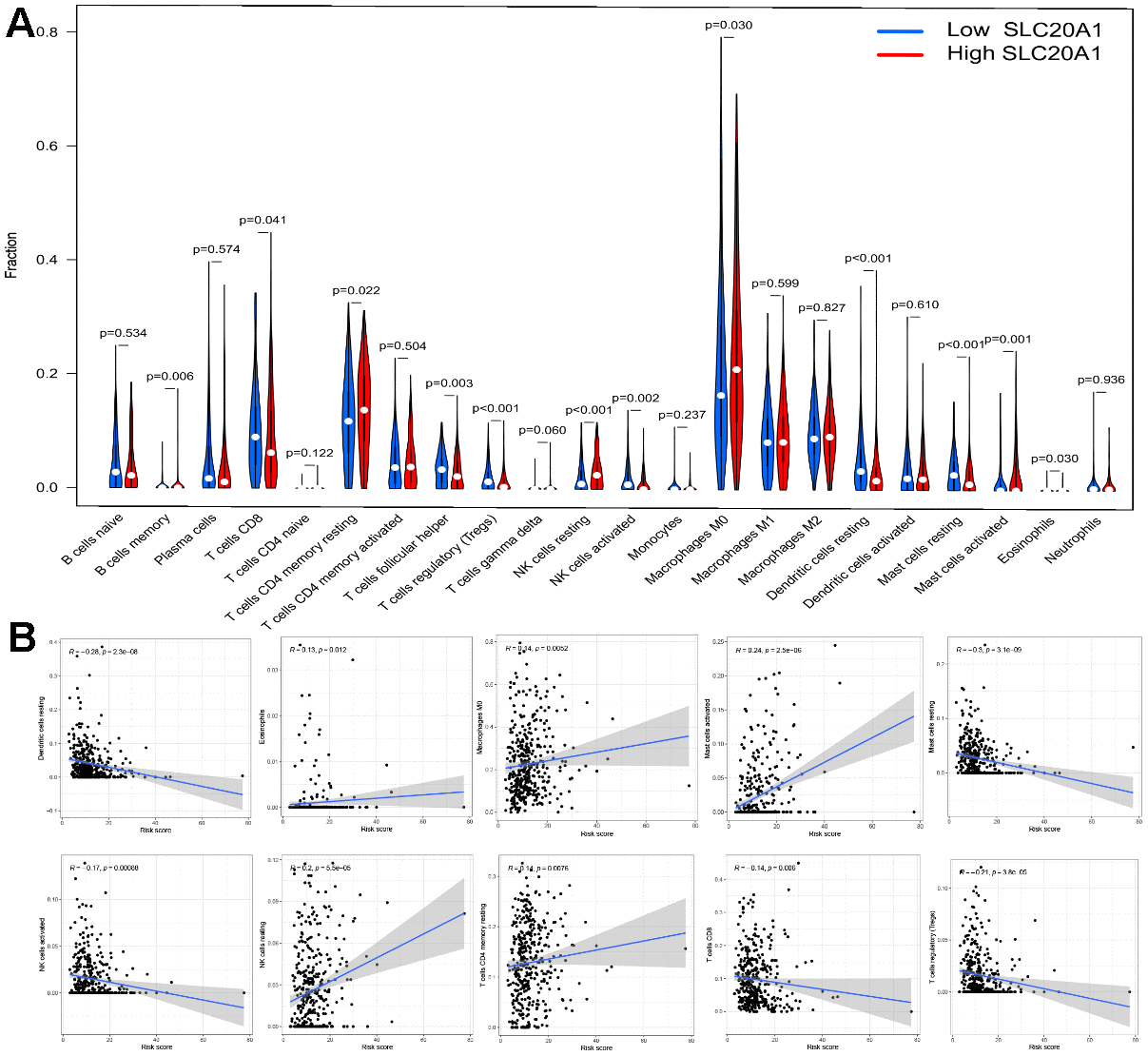

Figure 7.Association between SLC20A1 expression and TIICs in HNSCC. (A) Abundance of TIICs infiltration between low and high SLC20A1 expression in HNSCC from CIBERSORT database. (B) Correlation between SLC20A1 expression and TIICs from TIMER database.
