Research Paper Volume 16, Issue 16 pp 11824—11842
Identifying novel circadian rhythm biomarkers for diagnosis and prognosis of melanoma by an integrated bioinformatics and machine learning approach

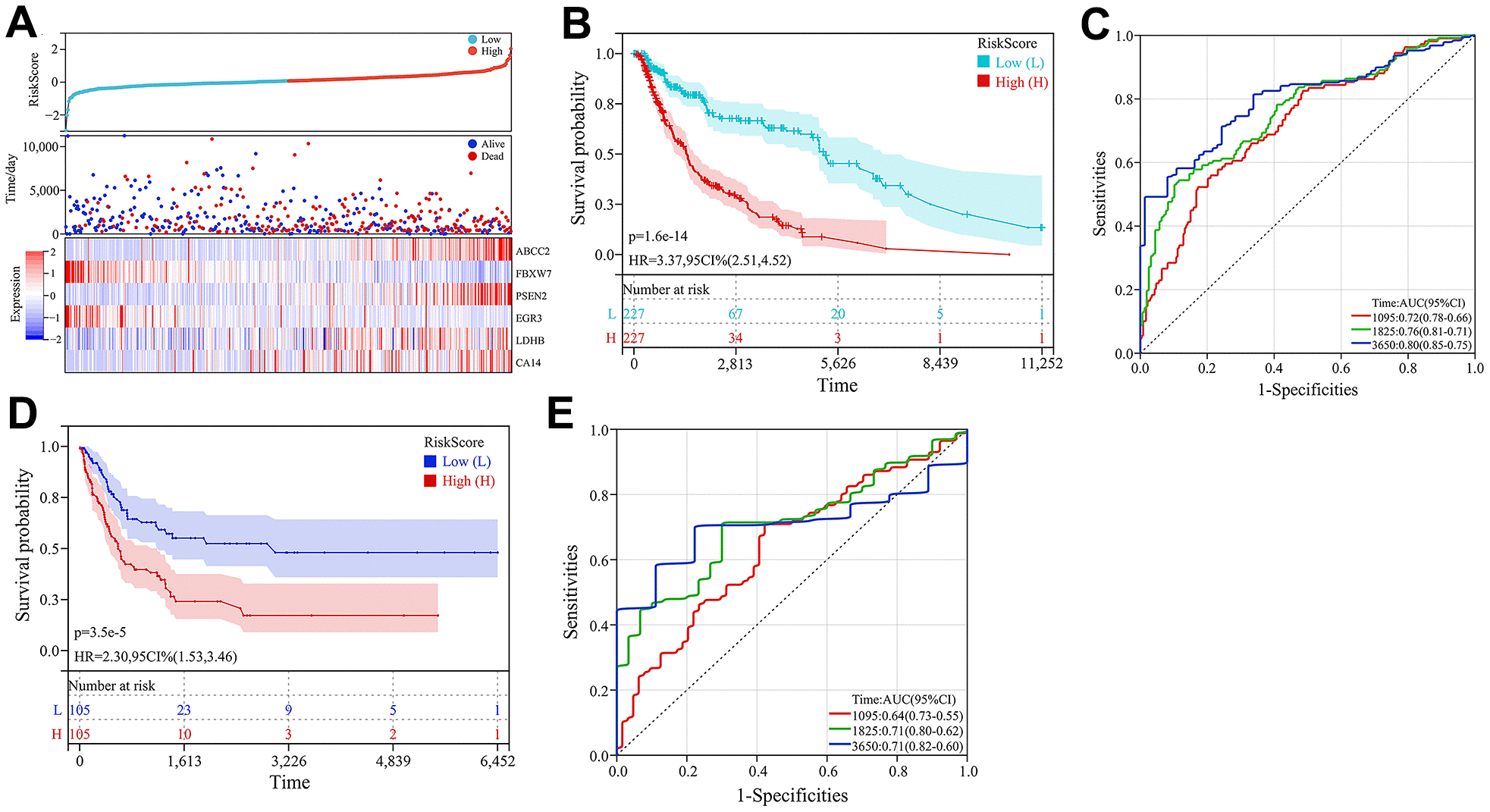

Figure 7. Construction and validation of the prognostic model. (A) Heatmap of key CRG expression and related risk score ranking and survival status distribution of patients. (B) Kaplan-Meier curves comparing high- and low-risk groups in the TCGA-melanoma cohort. (C) ROC curves of the prognostic model for predicting 3-, 5- and 10-year overall survival in TCGA-melanoma cohort. (D) Kaplan-Meier survival curve analysis in GSE65904 dataset. (E) ROC curves of the prognostic model for predicting 3-, 5- and 10-year overall survival in GSE65904 dataset.
