Figure 2 — Indy gene variation in natural populations confers fitness advantage and life span extension through transposon insertion

Research Paper|Volume 6, Issue 1|pp. 58–69

Indy gene variation in natural populations confers fitness advantage and life span extension through transposon insertion

Back to articleFigure 2(2 of 5)

100%

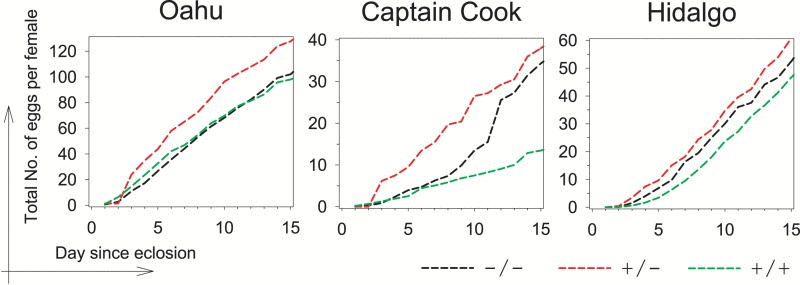

Figure 2.Hoppel insertion in Indy is associated with a reproductive advantageAccumulative number of eggs laid per female for each of the three Hoppel genotypes representing genomes with either no copies of Hoppel in Indy (−/−; in black), one copy of Hoppel in Indy (+/−; in red) or two copies of Hoppel in Indy (+/+; in green), isolated from three different populations collected from distant places or times from the wild (Oahu, Hawaii 1955, Captain Cook, Hawaii 2007 and Hidalgo, Mexico 2005).
