Research Paper Volume 11, Issue 2 pp 467—479

Combined eight-long noncoding RNA signature: a new risk score predicting prognosis in elderly non-small cell lung cancer patients

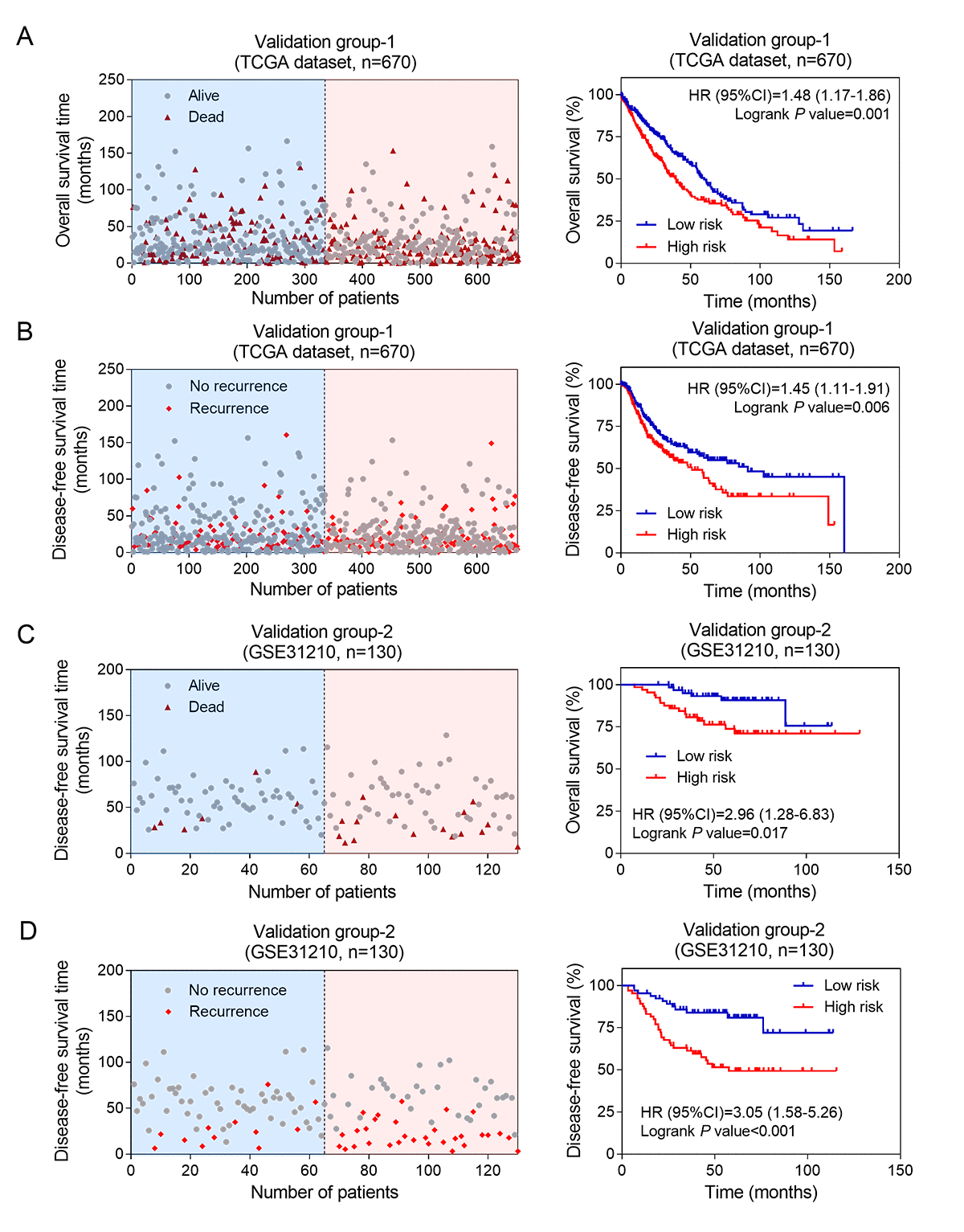

Figure 3. The prognostic values of eight-lncRNA signature in two independent validation groups. Kaplan-Meier analysis indicated that patients in the high-risk (n = 335) subgroup exhibited significantly poorer OS (A) and DFS (B) than the low-risk subgroup (n = 335) in validation group-1; Kaplan-Meier analysis indicated that patients in the high-risk (n = 335) subgroup exhibited significantly poorer OS (C) and DFS (D) than the low-risk subgroup (n = 335) in validation group-2. The left side shows the distribution of risk scores based on eight-lncRNA in corresponding survival status and recurrence in the two validation groups.
