Research Paper Volume 11, Issue 10 pp 3262—3279

Abnormal gut microbiota composition contributes to cognitive dysfunction in streptozotocin-induced diabetic mice

class="figure-viewer-img"

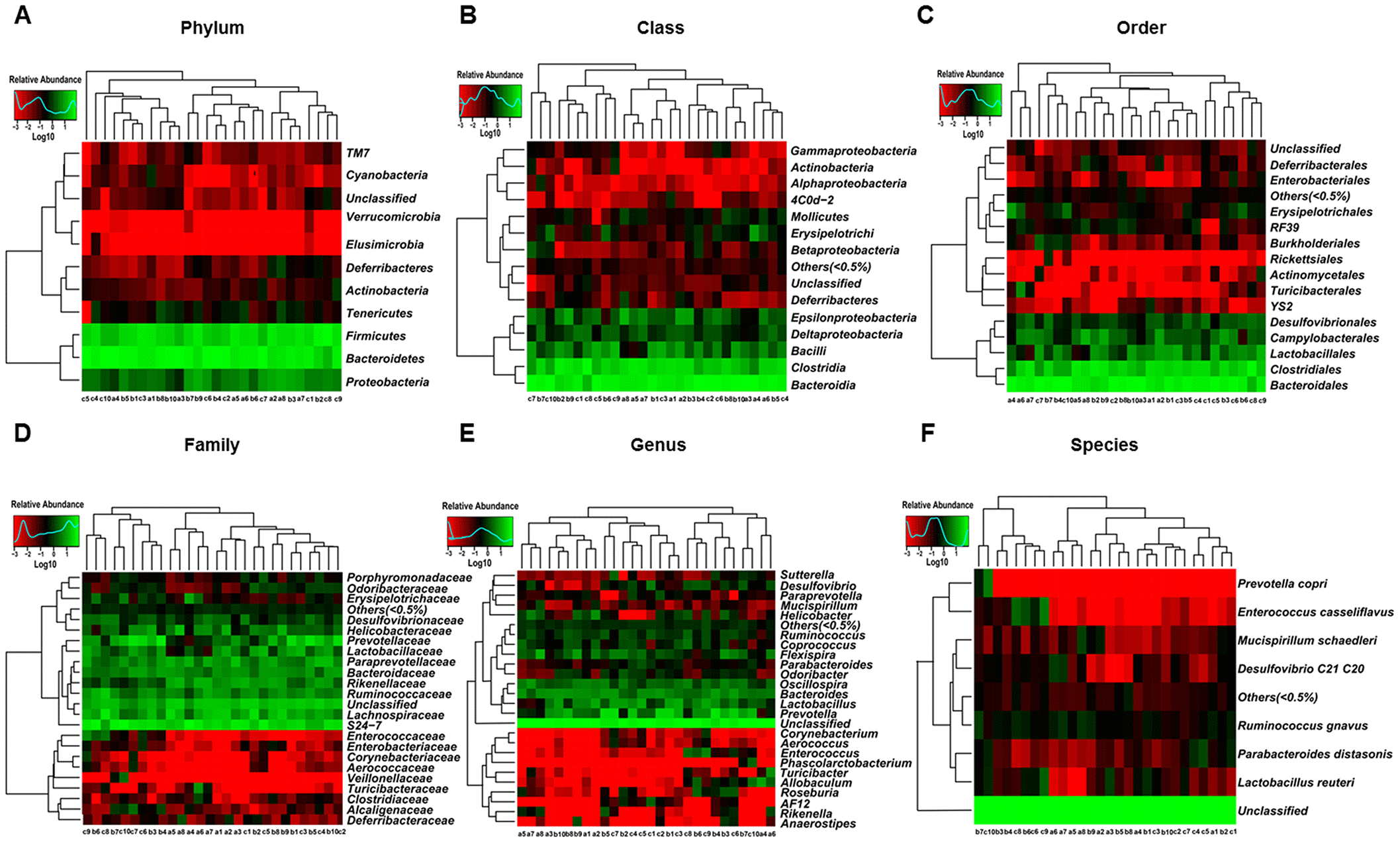

Figure 3. Heatmaps of gut microbiota composition at phylum, class, order, family, genus, and species levels for CONT, CD, and Non-CD mice. (A) Heatmap (phylum level). (B) Heatmap (class level). (C) Heatmap (order level). (D) Heatmap (family level). (E) Heatmap (genus level). (F) Heatmap (species level).
