Research Paper Volume 12, Issue 9 pp 8473—8483

Shoutai pills improve the quality of oocytes exposed to the chemotherapeutic drug Hydroxyurea

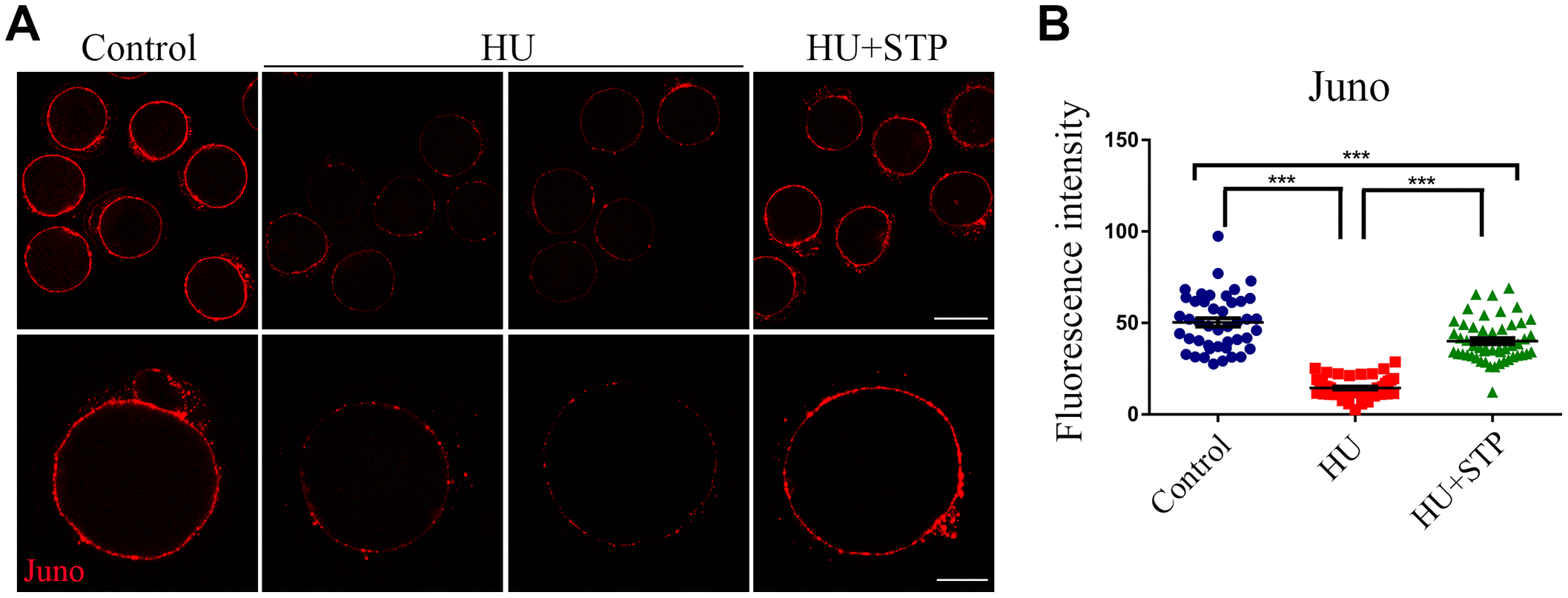

Figure 6. Effects of STP on the distribution of Juno in HU-exposed oocytes. (A) Representative images of Juno dynamics in control, HU-exposed, and STP-supplemented oocytes. Juno was immunostained with rat monoclonal anti-mouse Folr4 antibody and examined by confocal microscopy. Scale bar, 40 and 20 μm. (B) The immunofluorescence intensity of Juno signals was recorded in control, HU-exposed, and STP-supplemented oocytes. Data were presented as mean percentage (mean ± SD) of at least three independent experiments. ***P < 0.001.
