Research Paper Volume 12, Issue 20 pp 20512—20522

RWR-algorithm-based dissection of microRNA-506-3p and microRNA-140-5p as radiosensitive biomarkers in colorectal cancer

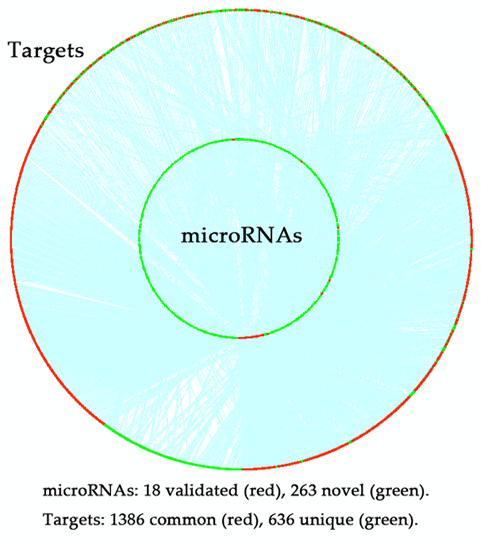

Figure 2. Distribution of the targets of 18 experimentally validated microRNAs and 263 novel microRNAs predicted by the random walk with restart (RWR) algorithm. Red dot in the inner ring, experimentally validated microRNAs; green dot in the inner ring, novel microRNAs; red dot in the outer ring, common targets of the experimentally validated microRNAs and novel microRNAs; green dot in the outer ring, unique targets of the experimentally validated microRNAs or novel microRNAs; blue line, the interaction between microRNAs and the targets.
