Figure 7 — Whole-transcriptome sequencing analysis reveal mechanisms of Yiqi Huoxue Yangyin (YHY) decoction in ameliorating D-gal-induced cardiac aging

Research Paper|Volume 15, Issue 8|pp. 2906–2919

Whole-transcriptome sequencing analysis reveal mechanisms of Yiqi Huoxue Yangyin (YHY) decoction in ameliorating D-gal-induced cardiac aging

Back to articleFigure 7(7 of 8)

100%

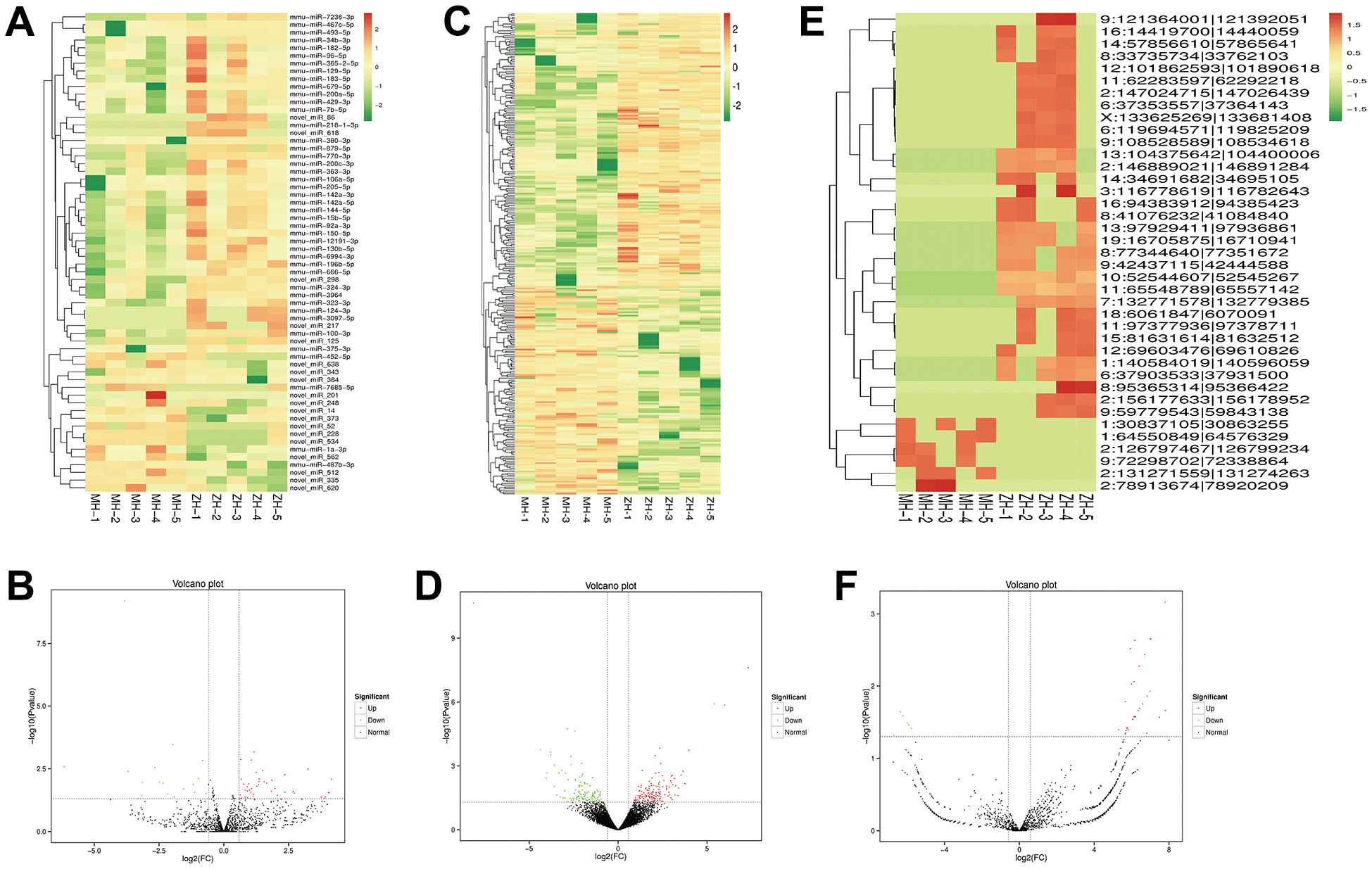

Figure 7.Profiles of differentially expressed of miRNAs, lncRNAs and circRNAs between the model group and YHY decoction group. Heatmap expression of DEG miRNAs (A), the volcano plot of DEG miRNAs (B), DEG lncRNAs (C), DEG lncRNAs (D), DEG circRNAs (E) and DEG circRNAs (F).
