Figure 5 — Galectin-3 promotes brain injury by modulating the phenotype of microglia via binding TLR-4 after intracerebral hemorrhage

Research Paper|Volume 15, Issue 17|pp. 9041–9058

Galectin-3 promotes brain injury by modulating the phenotype of microglia via binding TLR-4 after intracerebral hemorrhage

Back to articleFigure 5(5 of 6)

100%

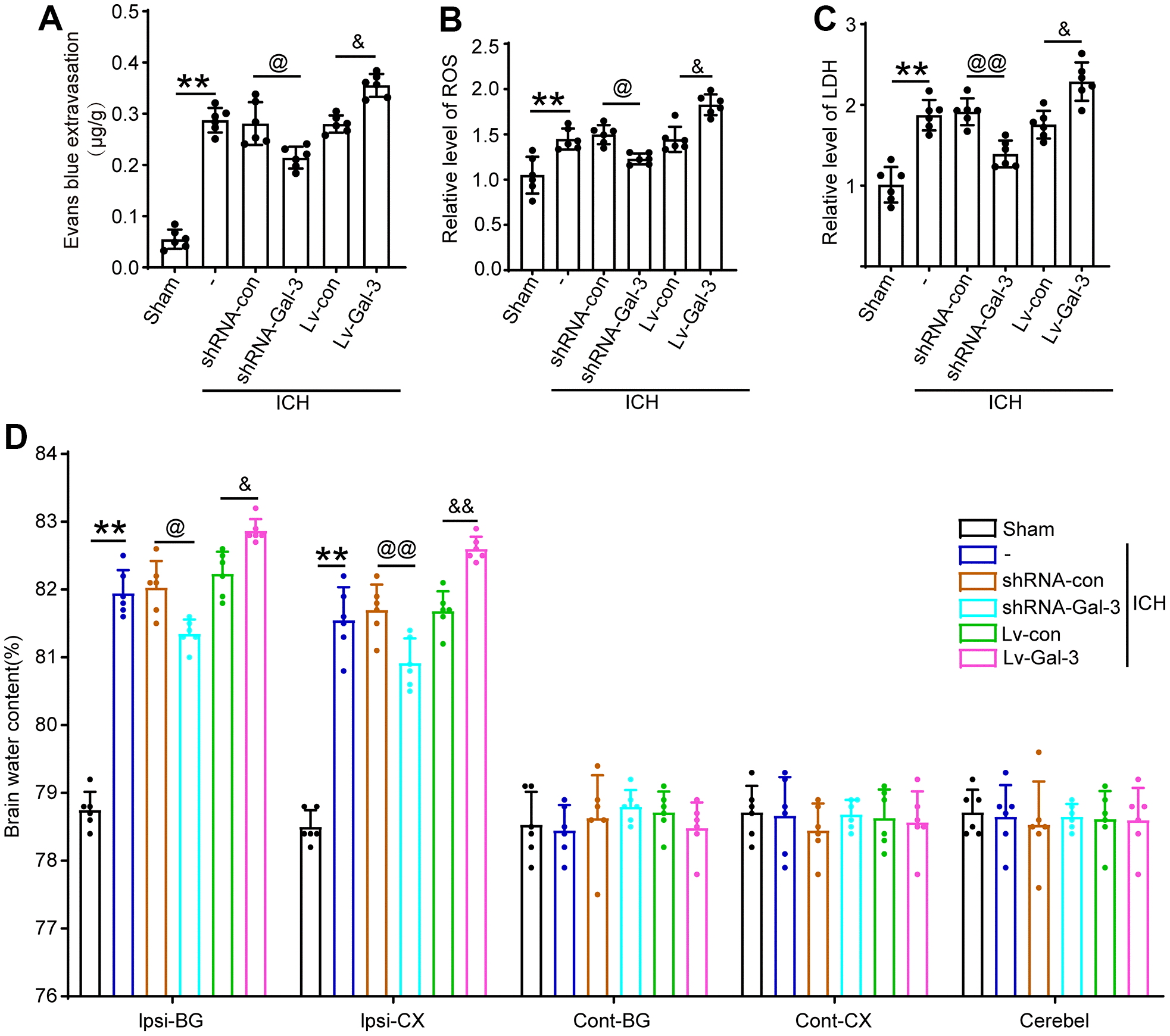

Figure 5.Upregulation of Gal-3 increased the BBB impairment, LDH, oxidative stress reaction, brain edema induced by ICH. (A) Evans blue extravasation. (B) ROS. (C) LDH. (D) Brain water content. The black dots represent individual data in each group. **p < 0.01 and *p < 0.05 vs. Sham group, ^@@p < 0.01 and ^@p < 0.05 vs. ICH+shRNA-con group, ^&&p < 0.01 and ^&p < 0.05 vs. ICH+Lv-con group, n = 6.
