Figure 6 — Novel diagnostic biomarkers of oxidative stress, ferroptosis, immune infiltration characteristics and experimental validation in ischemic stroke

Research Paper|Volume 16, Issue 1|pp. 746–761

Novel diagnostic biomarkers of oxidative stress, ferroptosis, immune infiltration characteristics and experimental validation in ischemic stroke

Back to articleFigure 6(6 of 9)

100%

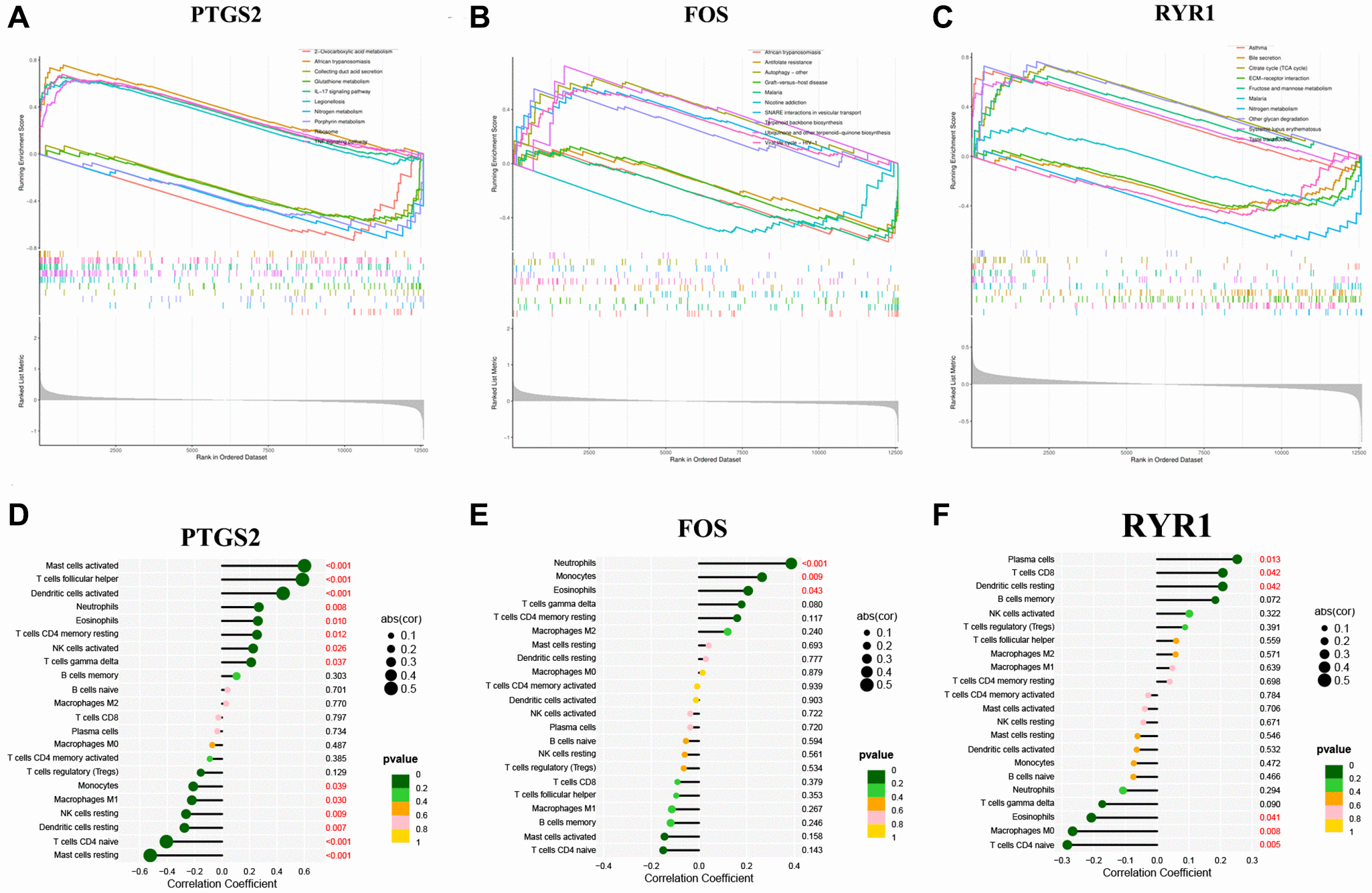

Figure 6.GSEA analysis and immune cell infiltration. (A) The GSEA analysis of PTGS2. (B) The GSEA analysis of FOS. (C) The GSEA analysis of RYR1. (D) The correlation analysis of immune cell infiltration with PTGS2. (E) The correlation analysis of immune cell infiltration with FOS. (F) The correlation analysis of immune cell infiltration with RYR1.
