Figure 2 — Investigating gene signatures associated with immunity in colon adenocarcinoma to predict the immunotherapy effectiveness using NFM and WGCNA algorithms

Research Paper|Volume 16, Issue 9|pp. 7596–7621

Investigating gene signatures associated with immunity in colon adenocarcinoma to predict the immunotherapy effectiveness using NFM and WGCNA algorithms

Back to articleFigure 2(2 of 11)

100%

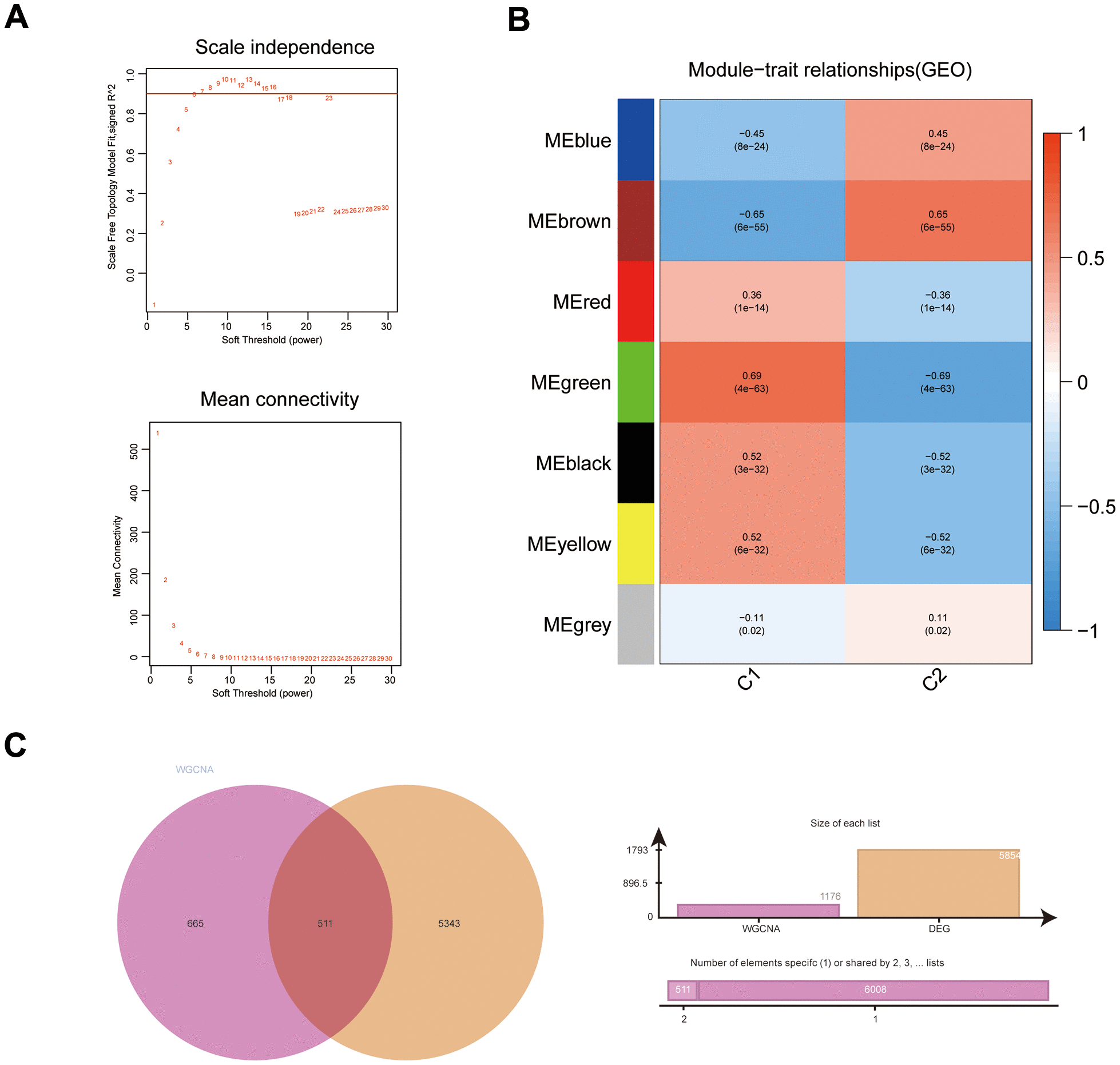

Figure 2.WGCNA results for immune subgroups. (A) Results of screening for soft threshold power; (B) correlation analysis of gene modules with immune subgroups; (C) Venn diagram of gene modules with high correlation to immunophenotyping and DEGs.
