Identification of dual-purpose therapeutic targets implicated in aging and glioblastoma multiforme using PandaOmics - an AI-enabled biological target discovery platform

Correlation analysis

Among the list of 25 transcriptomics datasets, age metadata were available for 12 which were consequently used for the correlation analysis (Supplementary Table 2). Spearman’s correlation coefficients between gene expression and age, as well as corresponding p-values, were calculated for each gene.

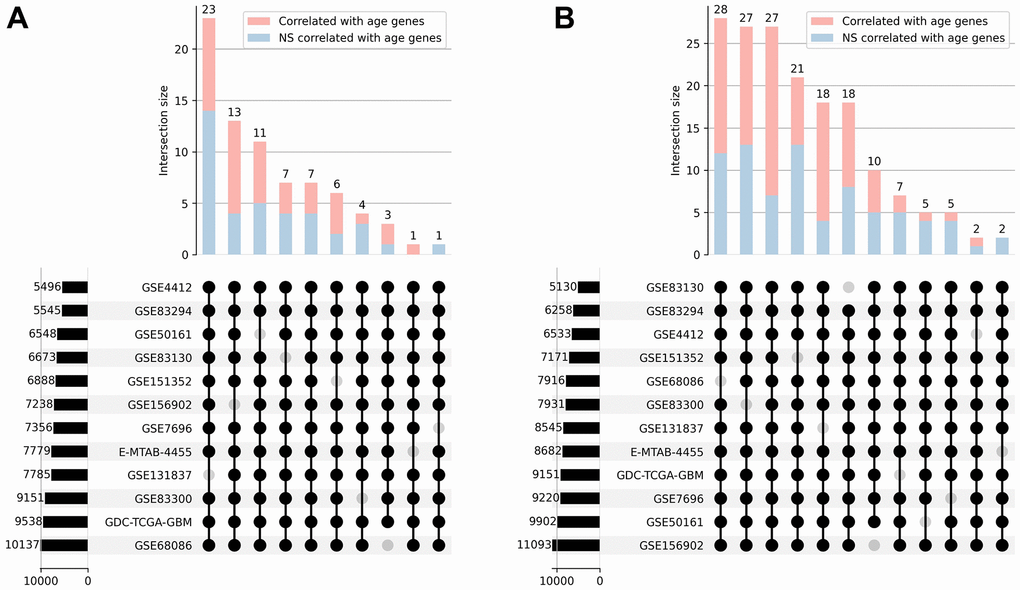

Our next step was separating the genes whose expression was positively and negatively correlated with age. Intersections between gene lists from 12 datasets were performed and only those genes that correlated with age and had the same correlation sign in at least 11 out of 12 datasets were selected for further analysis. This resulted in 76 genes that were positively correlated with age and 170 that were negatively correlated with age (Figure 2). Furthermore, we applied Stouffer’s method for combining p-values to calculate the significance of the correlation coefficients. Only 38 out of 76 genes were significantly (Stouffer’s combined p-value < 0.05) positively correlated with age, and 92 out of 170 genes appeared to be significantly negatively correlated with age.

Survival analysis

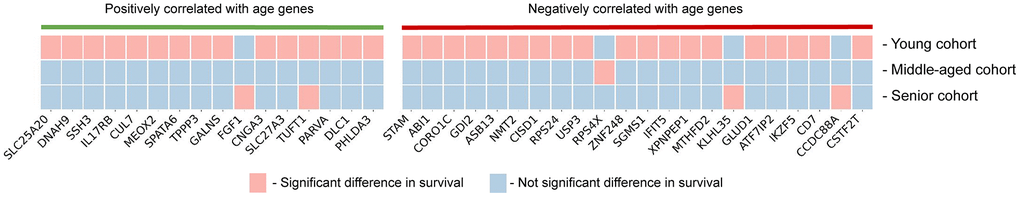

We performed a survival analysis for the genes that were significantly correlated with age, using the TCGA-GBM [29] dataset. First, we divided patients into three cohorts: young (< 45 years), middle-aged (from 45 to 60 years) and senior (> 60 years). Then for each cohort, we performed survival analysis according to the expression level of the analyzed gene. 16 out of 38 significantly positively correlated genes and 22 out of 92 significantly negatively correlated genes were able to stratify patients by survival according to their expression level (Figure 3). It is important to mention that most genes were able to significantly stratify the cohort of young patients.

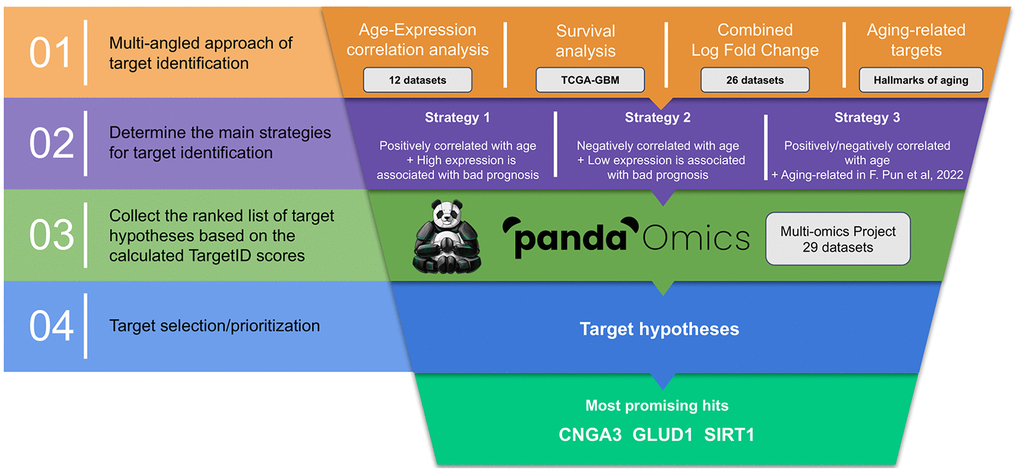

Target selection strategies guided by AI-powered PandaOmics TargetID engine

Finally, we determined three main strategies for target identification and utilized the PandaOmics TargetID engine in order to prioritize the best target hypotheses based on predictive AI-scores and additional assessment in terms of druggability, safety and brain tissue-specific expression.

Strategy 1: Expression and survival analysis of positively-correlated with age genes

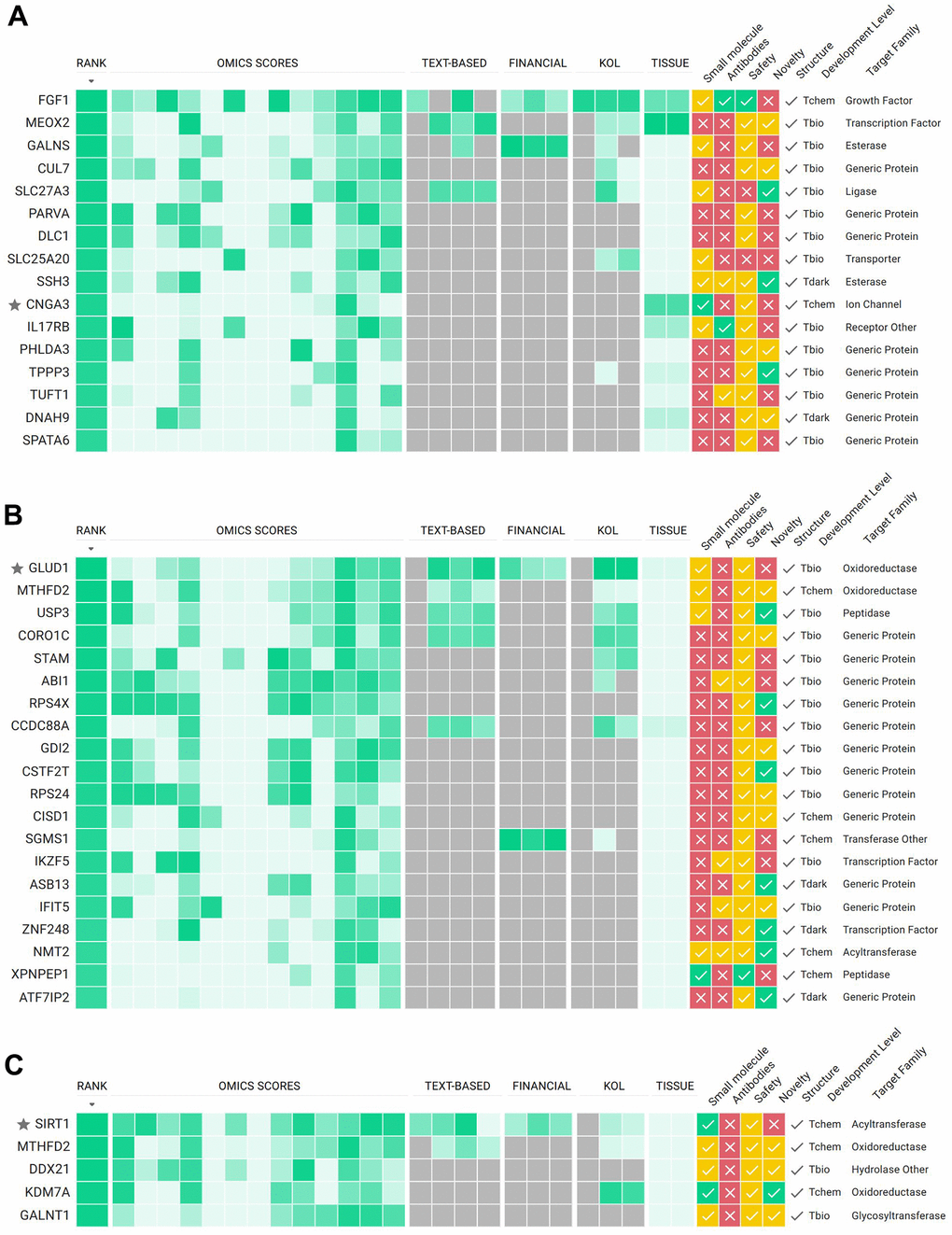

The first strategy involved finding targets that met the criteria of being positively correlated with age and which high expression is significantly associated with a worse survival rate. This approach assumed that inhibiting such targets could bring benefits to GBM patients. We were able to find a set of 16 genes that satisfy both requirements and passed those to the PandaOmics TargetID engine. After manual curation of the results, we nominated CNGA3 as a putative target. Although CNGA3 did not top the list of the most promising targets based on PandaOmics predictions (Figure 4A), it was highly ranked by the Expression score (score value 0.91). In fact, CNGA3 gene was significantly upregulated in 16 out of 26 expression datasets and had a positive combined log fold change of 1.47 (FDR corrected p-value < 0.01, Supplementary Figure 1A). Additional arguments in favor of CNGA3 choice were its high accessibility by small molecules, specific expression in brain tissue and absence of the safety red flags.

Strategy 2: Expression and survival analysis of negatively-correlated with age genes

The second strategy represented an inverted approach: we sought genes that were negatively correlated with age and whose low expression was associated with bad prognosis, in an attempt to find a target whose activation could benefit GBM patients. A set of 20 genes matching these conditions was analyzed and GLUD1 was nominated as a putative target since it had the highest rank in PandaOmics TargetID analysis (Figure 4B). Additionally, we observed significantly decreased GLUD1 levels in 15 GBM datasets which were reflected in a negative combined log fold change of -0.68 (FDR corrected p-value < 0.01, Supplementary Figure 1B).

Strategy 3: Intersecting age-correlated GBM genes with potential aging targets

The third strategy was to investigate whether the age-correlated genes from GBM patients identified in this study are related to aging in general. For this, we intersected our set of 130 age-correlated genes with the list of previously identified dual-purpose disease and age-associated targets associated with the Hallmarks of aging predicted by Pun et al. [12]. The authors performed a comprehensive analysis using a variety of target identification and prioritization techniques offered by the PandaOmics platform and proposed a list of promising aging-associated targets that may be used for drug discovery. Five genes were identified in the intersection and all of them were identified as negatively correlated with age in GBM patients, namely MTHFD2, DDX21, KDM7A, GALNT1 and SIRT1. The latter was nominated as a putative target following PandaOmics TargetID ranking (Figure 4C).

CNGA3

Among genes that are significantly positively correlated with age in GBM patients and whose high expression is associated with worse survival, we selected CNGA3.

CNGA3 codes for an ion channel, which belongs to the cyclic nucleotide-gated cation channel family. CNGA3 is involved in visual signal transduction and is essential for the generation of light-evoked electrical responses in photosensitive cones, located in the retina of the eye.

Our results are consistent with the research of Pollak et al. who showed that high expression of CNGA3 was significantly associated with reduced median survival in GBM patients. By contrast, when the authors examined gene expression patterns in the Ivy Glioblastoma Atlas Project (Ivy GAP) database, and considered expression restricted to the central solid tumor region, high CNGA3 was associated with increased, rather than decreased, survival. The authors suggest that this discrepancy may reflect the complexity of ion channel functions in GBM, as well as differences in sample composition between databases and bias introduced by restricting the Ivy GAP analysis to the central tumor region [32].

In another study [33], CNGA3 was mentioned among the genes whose overexpression was associated with worse GBM patients survival and provides a predictive value of nitrosoureas treatment resistance.

In summary, CNGA3 may play a dual role through its effects on GBM development and progression as well as aging. Further investigation is needed to confirm our hypothesis and explore specific molecular mechanisms of CNGA3 involvement in both processes.

GLUD1

In the group of genes significantly negatively correlated with age in GBM patients and low expression is associated with bad prognosis, the GLUD1 gene had the highest rank in our PandaOmics TargetID analysis.

GLUD1 encodes mitochondrial glutamate dehydrogenase 1 - a mitochondrial matrix enzyme which catalyzes the conversion of L-glutamate into alpha-ketoglutarate. In the nervous tissue, GLUD1 is involved in healthy learning and memory creation by increasing the turnover of glutamate, an excitatory neurotransmitter. Distorted GLUD1 function plays a role in several psychiatric and neurological disorders [34].

Several studies focusing on glutamate metabolism changes during aging in the brain demonstrated that there is a gradual rise in extracellular glutamate in the brain and an increase in the sensitivity of certain neurons to the cytotoxic effects of glutamate during aging [35, 36]. The decline in neuronal function during aging may result from increases in extracellular glutamate, glutamate-induced neurotoxicity, and altered mitochondrial metabolism [37].

In another study, Franco et al. investigated the protein expression profile of the key regulators of glutaminolysis, including GLUD1, in a cohort of astrocytomas of different malignancy grades and non-neoplastic brain samples. GLUD1 expression was shown to be downregulated in GBM, and upregulated in lower grades of astrocytoma (AGII-AGIII). Significant low GLUD1 protein levels were observed in the mesenchymal subtype of GBM. The authors suggested that the downregulation of GLUD1 in GBM increased the source of glutamate for glutathione synthesis and enhanced tumor cell fitness due to increased antioxidative capacity [38].

SIRT1

SIRT1 is among the most studied genes in aging research. SIRT1 was identified as a target connected to all hallmarks of aging, due to its wide range of interactions with aging-associated pathways [12].

SIRT1 encodes the NAD-dependent protein deacetylase sirtuin-1 that links transcriptional regulation directly to intracellular energetics and participates in the coordination of several separated cellular functions such as the cell cycle, response to DNA damage, metabolism, apoptosis and autophagy.

The significance of the sirtuin pathways in longevity has been extensively reported [39]. SIRT1 activity was found to be attenuated in the cerebellum during aging, leading to alterations of the epigenetic landscape, thereby changing gene expression that interferes with motor function [40]. In addition, activation of SIRT1 suppressed aging by ensuring telomere integrity [41], antagonizing oxidative stress [42], regulating nutrient signaling by inhibiting the mTOR pathway [43] and mitochondrial unfolded protein response [44].

SIRT1 is extensively studied in the context of cancer as well. Accumulating evidence has recently revealed that SIRT1 may act as a tumor suppressor in several types of cancer, thus, activating SIRT1 would represent a possible therapeutic strategy. It was recently identified as a key prognostic factor in brain cancer. A small-molecule activator of SIRT1 showed a therapeutic potential on GBM in vitro and in vivo by inducing autophagy and mitophagy [45].

Data collection

Gene expression data originally from Gene Expression Omnibus, ArrayExpress, and PRIDE were collected in PandaOmics, an AI-driven target discovery platform. Twenty-five transcriptomics (GSE86202, GSE151352, GSE59612, GSE68086, GSE156902, GDC-TCGA-GBM, GSE103227, GSE90886, GSE22866, GSE50161, GSE4290, GSE108474, GSE10878, GSE90598, E-MTAB-3892, GSE83130, GSE68848, GSE153746, GSE42656, GSE7696, GSE119102, GSE65626, GSE72269, GSE13276, GSE15824), 3 methylations (GSE60274, TCGA-GBM, GSE123678) and 1 proteomics (PXD017943) datasets with a total number of 2,627 samples (case = 2,027, control = 600) were analyzed. All omics datasets were pre-processed according to the PandaOmics pipeline, which automatically defines data type and normalizes the data for further analysis. Upper-quartile normalization and log2-transformation were applied for all transcriptomics datasets used. All named datasets were further used for target prioritization and hit identification using PandaOmics TargetID approach (see “PandaOmics TargetID platform for target prioritization” section). Collected transcriptomics and proteomics datasets were used for differential expression analysis (see differential expression analysis and combined log-fold changes section). Finally, 12 out of 25 transcriptomics datasets (GSE156902, GSE68086, GSE83130, GSE50161, GSE151352, GDC-TCGA-GBM, GSE7696, GSE4412, GSE83294, E-MTAB-4455, GSE131837, GSE83300) were used to conduct a correlation analysis (see age-correlation analysis section) as age metadata were available only for these datasets.

Differential expression analysis and combined log-fold changes

Differential expression analysis was performed in PandaOmics using the limma R package. Each dataset has been processed according to limma standard protocols. Obtained gene-wise p-values were corrected by the Benjamini-Hochberg procedure. Combined log-fold changes (LFC) between transcriptomics and proteomics datasets were calculated in the meta-analysis section of PandaOmics. The meta-analysis section in PandaOmics enabled us to calculate combined LFC values and Q-values across all datasets used for the analysis, using minmax normalization for LFC values and Stouffer’s method combining p-values with further FDR correction.

Age-expression correlation analysis

Normalized gene expression matrixes along with patients’ age metadata were collected from PandaOmics for 12 transcriptomics datasets. Spearman’s rank correlation coefficients between gene expression and age, as well as corresponding p-values, were calculated for each gene separately for each dataset using only case samples. Lists with positively and negatively correlated genes were analyzed and plotted independently using the upsetplot python package with min_degree = 11. In order to calculate the significance of the correlation coefficients across all datasets, Stouffer’s method was applied for previously obtained Spearman’s correlation p-values. Finally, 2 lists of genes significantly correlated with age (Stouffer’s combined p-value < 0.05) were obtained.

Survival analysis

Survival analysis was performed for the genes that were significantly correlated with age, obtained from PandaOmics GDC-TCGA-GBM dataset. Patients were divided into three cohorts: young (< 45 years), middle-aged (from 45 to 60 years) and senior (> 60 years) and for each cohort survival analysis was performed. Briefly, survival analysis was performed using the KaplanMeierFitter function from lifelines python package. The Median function was applied to normalize gene expression data and the median value for each gene of interest was used as a threshold for patients’ stratification. Patients with the expression value of the gene of interest ≥ or < than the median value were considered as patients with “high” or “low” expression of a particular gene, respectively. Log-rank test was used to calculate the statistical significance. The probability of survival outcome for each cohort was plotted on a heatmap using seaborn python package and colored as red if there was a significant difference in survival between patients with high and low expression of a gene, and colored blue if there was no significant difference.

PandaOmics TargetID platform for target prioritization

The in silico-based PandaOmics TargetID approach was performed on all collected omics datasets, including transcriptomics, methylomics and proteomics, to prioritize and identify the most promising GBM therapeutic targets from the lists of genes obtained through different strategies. This approach is based on combining multiple ranking scores derived from text and omics data. Text-based scores represent how strongly a particular target is associated with a disease based on sources like scientific publications, grants, patents, clinical trials and key opinion leaders. Omics scores are based on differential expression, GWAS studies, somatic and germline mutations, interactome topology, signaling pathway perturbation analysis algorithms, knockout/overexpression experiments and more omics-data sources and, thus, represent the target-disease association based on molecular connections between the proposed target and disease of interest. Regardless of the methodology, all models output ranked lists of target hypotheses. The combination of described scores leads to a ranked list of potential targets for a disease that can be filtered out based on their novelty, safety, accessibility by molecule or antibodies and availability of PDB structure. Detailed descriptions of all scores and filters can be found in PandaOmics’ User Manual (https://insilico.com/pandaomics/help). For the current study, lists with potential targets derived from strategies 1, 2 and 3 were combined and passed into TargetID. To identify the most promising hits, additional filtering was performed on PandaOmics TargetID page. After filtering, the list with the most promising hits was obtained.
