Impairment of hypoxia-induced angiogenesis by LDL involves a HIF-centered signaling network linking inflammatory TNFα and angiogenic VEGF

The GEP analysis reveals a potential HIF-centered signaling network in ECs

It is well-established that HIFs play an essential role in angiogenesis via inducing expression of pro-angiogenic VEGF as well as its receptors VEGFR1 and VEGFR2 in ECs under both hypoxic and normoxic conditions [2,4]. It is also known that HIFs (HIF-1α in particular) are involved in production of pro-inflammatory TNFα by macrophages, which in turn stimulate angiogenesis or vascular remodeling likely by activating the NF-κB pathway [10]. However, it remains uncertain whether there is any relationship between HIFs and TNFα in ECs, particularly due to the fact that these two pathways share a common property to promote VEGF production and angiogenesis. To this end, we first analyzed such a potential relationship in ECs, together with VEGF and NF-κB pathways, by utilizing the publically-available databases of gene expression profiling (GEP). The datasets used includes one for differentiation of human embryonic stem cells (hESC) to mature ECs (Exp HUVEC vs ESC - James - 12 - MAS5.0 - u133p2) [28] and another for comparison between freshly-isolated ECs from vein (human umbilical vein endothelial cells, HUVECs) and artery (human umbilical artery endothelial cells, HUAECs) (Normal Endothelial Cells HUAEC/HUVEC - Luttun - 38 - MAS5.0 - u133p2) [29]. As shown in Figure 1A, the heatmap displayed that there existed numerous positive correlations (red color) in gene expression between a) HIF1A and EPAS1 (HIF-2α; area #1), and b) HIF1A or EPAS1 and TNF or its receptors (e.g., TNFRSF1B/TNF-R2; area #2). It is also noteworthy that although both HIF1A and EPAS1 positively correlated only with KDR (VEGFR2) among all VEGFs and their receptors, there were a number of positive cross-links between TNF or its receptors (both TNFRSF1A/TNF-R1 and TNFRSF1B) and VEGFs (e.g., VEGFA and VEGFC) or their receptors (FLT1/VEGFR1 and particularly KDR; area #3). They were also closely associated with the NF-κB pathway (e.g., RIPK1, NFKB2, RELB, IKBKG/NEMO, TNFAIP3/A20; area #4). When a comparison was made between HUVEC and HUAECs (Figure 1B), much less positive correlations were observed in areas #2 - 4, while negative correlations (blue color) were instead clearly increased. These results raise a possibility that a network involving four essential angiogenesis-driving signaling pathways including HIF (especially α subunits), TNF, VEGF, and NF-κB might be required for development of embryonic stem cells to ECs, while it might then be largely silenced after maturation of ECs no matter where they localize (e.g., in vein or artery). Of note, only a few correlations between ARNT (HIF-1β) and other genes were observed in both settings (Figure 1A and 1B), probably reflecting its constitutively stable feature. Interestingly, as shown in the volcano plots, the most significantly expressed gene was the pro-inflammatory cytokine CXCL14 in hESC vs HUVEC (Supplementary Figure S1A), while it was KDR (encoding VEGFR2, the major VEGF receptor) in HUVEC vs HUAEC (Supplementary Figure S1B). Moreover, the patterns of individual gene expression were also markedly different, even opposite, between these two settings i.e., hESC vs HUVEC (Supplementary Figure S2A) and HUAEC vs HUVEC (Supplementary Figure S2B). Overall, a majority of genes involved in the HIF, TNF, VEGF, and NF-κB pathways were turned off once hESCs differentiated to mature ECs, while only some genes (e.g., HIF1A, TNFRSF1A, MAP3K14/NIK) likely remained activated in HUVECs (assuming under lower-oxygenated conditions) when compared to HUAVCs.

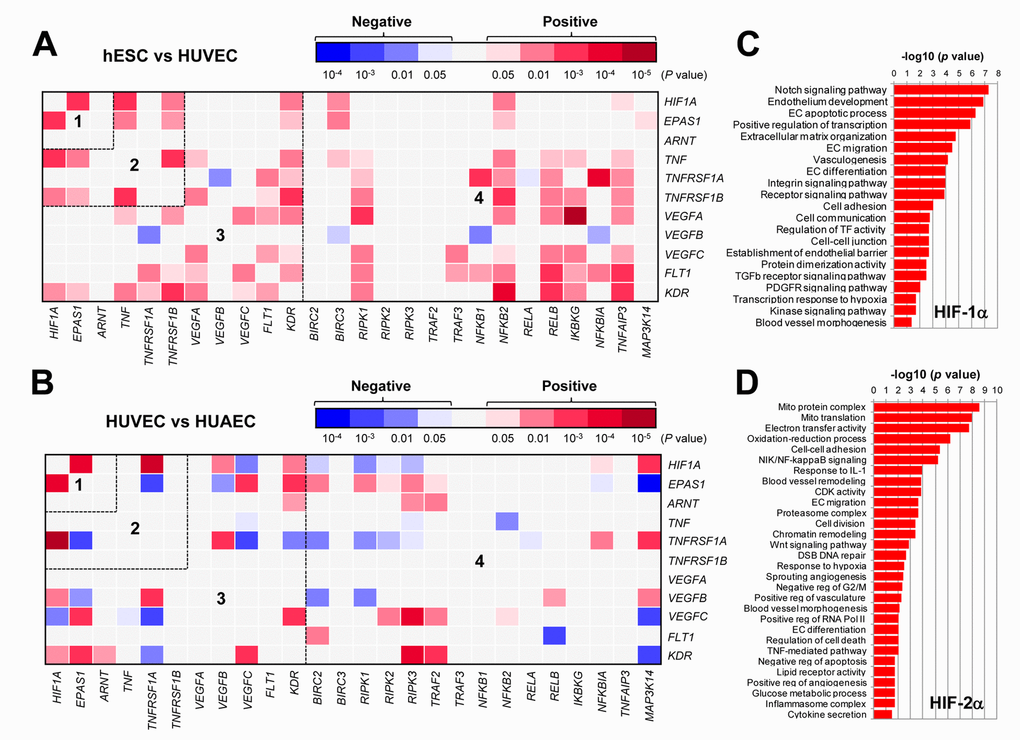

Figure 1. The GEP analyses map the potential correlations among the HIFs, TNFα, VEGFs, and NF-κB signaling pathways in ECs. (A, B) By analyzing the datasets involving gene expression profiling (GEP) in ECs using the R2: Genomics Analysis and Visualization Platform, the heatmaps were generated based on P values for analyses of correlations (red and blue indicating positive and negative correlations, respectively) between each pair of genes as indicated on longitudinal and transverse axes, in (A; dataset, Exp HUVEC vs ESC - James - 12 - MAS5.0 - u133p2) human stem cells (hESC) vs human umbilical vein endothelial cells (HUVEC) and (B; dataset, Normal Endothelial Cells HUAEC/HUVEC - Luttun - 38 - MAS5.0 - u133p2) HUVEC vs human umbilical artery endothelial cells (HUAEC). Numbers in the heatmaps indicate the areas (outlined by dash line) clustered for each pathway. (C, D) Gene ontology (GO) analyses were performed to categorize (C) HIF-1α- and (D) HIF-2α-related genes according to their functions, in all types of ECs, including (dataset, Normal Endothelial Cells HUAEC/HUVEC - Luttun - 38 - MAS5.0 - u133p2).

To examine the differences between HIF-1α- and HIF-2α-related genes in ECs, the gene ontology (GO) analysis was then performed to classify the genes whose expression correlated with either HIF1A or EPAS1 in both arterial and venous ECs from diverse locations, including cultured ECs of aorta, coronary artery, hepatic artery and vein, iliac artery and vein, pulmonary artery and vein, umbilical artery and vein, as well as freshly isolated ECs of umbilical artery and vein (Normal Endothelial Cells HUAEC/HUVEC - Luttun - 38 - MAS5.0 - u133p2) [29]. Notably, the most significant HIF1A- and EPAS1-correlated genes fell into two functionally distinct repertoires. The HIF1A-related genes were more relevant to EC development and angiogenesis (Figure 1C), while the EPAS1-related genes were however associated more with mitochondrial energy metabolism that is known to be required for HIF activation [30], blood vessel remodeling, inflammatory responses, etc. (Figure 1D). Together, these results support a notion that although both HIF-1α and HIF-2α play functional roles in promoting angiogenesis, they might function via activation of the distinct sets of target genes.

Hypoxia-induced angiogenesis is associated with HIF activation and VEGF production in ECs

To confirm the causal link between HIF activation and angiogenesis in response to hypoxia, the colony formation assay was first performed to examine the effect of hypoxia on proliferation of ECs. As shown in Figure 2A, culturing HUVECs under 1% O₂ condition led to a sharp increase in both number and size of colonies, compared to 21% O₂ as control. Moreover, exposure of HUVECs to 1% O₂ also enhanced their tube-forming capacity, reflected by fine vascular network with less unclosed loops (arrowhead; Figure 2B). Further, an ELISA assay was carried out to determine the amount of VEGF secreted by ECs. As shown in Figure 2C, exposure to 1% O₂ resulted in an increase in VEGF production by HUVECs in a time-dependent manner. Moreover, Western blot analysis revealed that exposure to 1% O₂ also resulted in a time-dependent increase in the protein levels of HIF-1α, HIF-2α, and HIF-1β (Figure 2D, left), and analogous results were obtained when lactic acid was utilized to mimic hypoxia (right). Therefore, these results indicate that hypoxia promotes angiogenesis via autocrine of VEGF by ECs, an event in association with HIF activation.

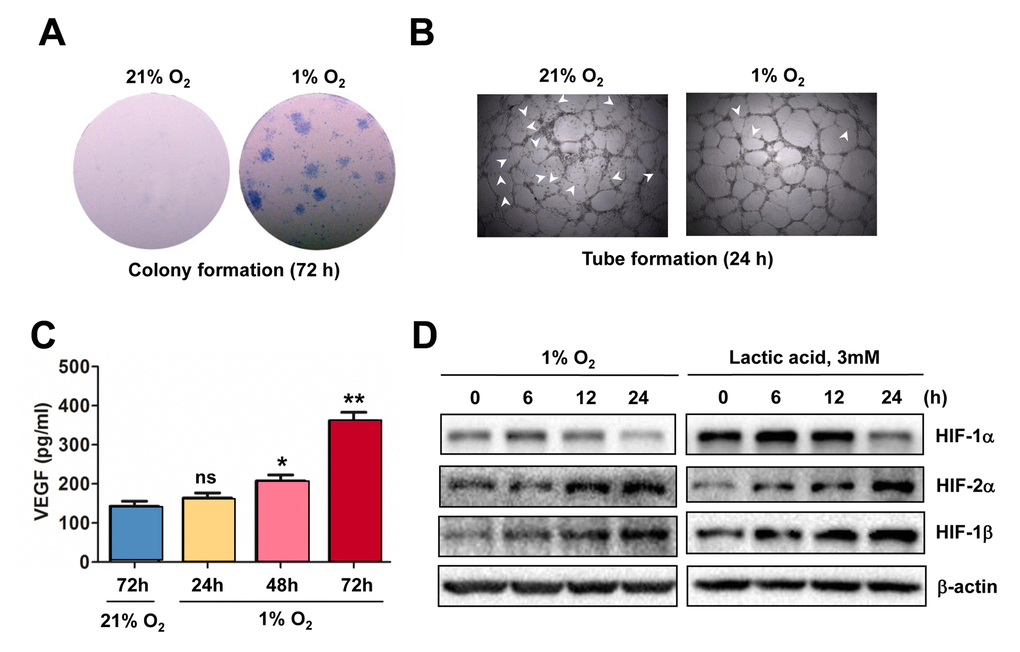

Figure 2. Hypoxia induces angiogenesis of ECs, in association with VEGF production and HIF activation. (A, B) HUVECs were cultured in ECGM medium containing 2% serum for the indicate intervals under either hypoxic (1% O₂) or normoxic (21% O₂) condition, after which cells were subjected to the following assays, including (A) colony formation assay (72 hrs) and (B) Matrigel-based tube formation assay (24 hrs). Representative microscopic images for at least three independent experiments were shown. Arrowheads indicate unclosed loops of vascular structure. (C) When HUVECs were cultured as described above under hypoxic (1% O₂) or normoxic (21% O₂) condition, medium was harvested at the indicated intervals and subjected to an ELISA assay to determine absolute amount of VEGF (pg/ml). Values represent the means ± SD for at least three independent experiments performed in triplicate. *P < 0.05 and **P < 0.01 for comparison with control (72 hrs under 21% O₂); ns = not significant. (D) HUVECs were cultured under hypoxic (1% O₂) condition (left panels) or exposed to the chemical hypoxia mimetic lactic acid (3 mM) for the indicated intervals (6 - 24 hrs), after which Western blot analysis was performed to monitor expression of HIF-1α, HIF-2α, and HIF-1β. Blots were reprobed for β−actin as loading control.

Knockdown of either HIF-1α or HIF-2α prevents hypoxia-induced VEGF production and angiogenesis

The functional role of HIF-1α and HIF-2α in hypoxia-induced angiogenesis was then examined. To this end, HIF-1α and HIF-2α were knocked down in HUVECs, using shRNA specifically targeting HIF1A and EPAS1, respectively. Western blot analysis confirmed knockdown of HIF1A and EPAS1 dramatically prevented robust expression of HIF-1α (Figure 3A, left) and HIF-2α (right) in HUVECs exposed to 1% O₂. Using these cells, the colony and tube formation assays were performed to evaluate the functional role of HIF-1α and HIF-2α in ECs. Indeed, prevention of either HIF1A or EPAS1 expression sharply suppressed growth of HUVECs under 1% O₂ condition, while knocking down EPAS1 was even more effective than knockdown of HIF1A (Figure 3B). Consistently, whereas knocking down either of them markedly impaired the capacity of HUVECs to form vascular network under 1% O₂ condition, manifested by both reduced number of tubes and increased unclosed loops (arrowhead; Figure 3C). Similar results were observed in HUVECs with shRNA knockdown of ANRT (Supplementary Figure S3A). Last, knockdown of HIF1A or EPAS1 also significantly attenuated production of VEGF by HUVECs (Figure 3D). Together, these findings argue that hypoxia induces angiogenesis through inducing autocrine of VEGF by ECs via activation of the HIF pathway.

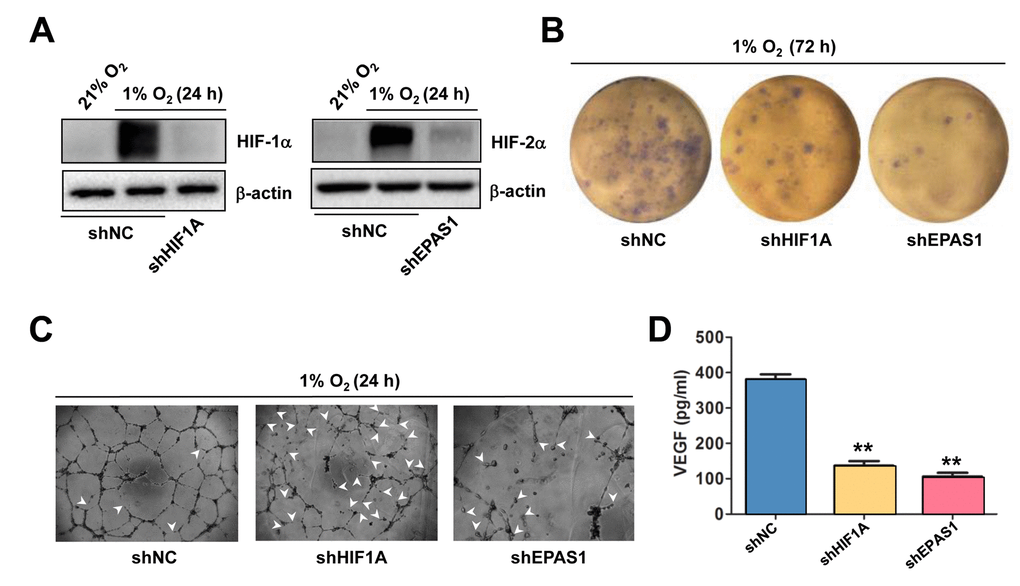

Figure 3. Knockdown of either HIF-1α or HIF-2α impairs hypoxia-induced angiogenesis and VEGF production in ECs. (A) HUVECs were transfected with pLKO.1 constructs encoding shRNA specifically targeting HIF-1α and HIF-2α, as well as scramble sequence as negative control (shNC). As the basal levels of HIF-1α or HIF-2α in HUVECs were relatively low, these transfected cells were exposed to 1% O₂ (21% O₂ as normoxia control) for 24 hrs, after which Western blot analysis was performed to confirm shRNA knockdown of HIF-1α and HIF-2α, respectively. (B, C) HUVECs expressing HIF-1α or HIF-2α shRNA were then exposed to 1% O₂ for the indicated intervals, followed by colony formation assay (B, 72 hrs) and Matrigel-based tube formation assay (C, 24 hrs). Representative microscopic images for at least three independent experiments were shown. Arrowheads indicate unclosed loops of vascular structure. (D) In parallel, the VEGF level was measured by ELISA assay after cultured for 72 hrs under 1% O₂. Values represent the means ± SD for at least three independent experiments performed in triplicate. **P < 0.01 for comparison with shNC control.

LDL inhibits activation of both HIF and NF-κB pathways in ECs exposed to hypoxia

We have previously demonstrated that LDL impairs angiogenesis by disrupting several pro-angiogenic signals such as SDF/CXCR4 [31] and VEGF/VEGFR2 [27]. Recently, we have found that LDL also acts to down-regulate HIF-1β expression by inactivating NF-κB, followed by down-regulation of HIF-1α and HIF-2α, which in turn contributes to the anti-angiogenic effect of LDL [18]. Consistent with these findings, Western blot analysis revealed that pre-treatment with native LDL sharply diminished expression of HIF-1α, HIF-2α, and to a lesser extent HIF-1β, as well as phosphorylation of p65, reflecting NF-κB inactivation [32], in HUVECs cultured under 1% O₂ condition (Figure 4A). Similarly, LDL pre-treatment largely decreased accumulation of HIF-1α and HIF-2α in HUVECs treated with the PHD inhibitor DMOG [33], in association with reduced p65 phosphorylation (Figure 4B). However, oxidized LDL (oxLDL) failed to do so in HUVECs exposed to DMOG (Figure 4C). Neither LDL nor oxLDL were able to down-regulate HIF-1β under 21% O₂ condition (Supplementary Figure S3B and 3C). Moreover, the free radical scavenger PBN [34] could not rescue these events mediated by LDL (Figure 4B), supporting a notion that oxidation might be not required for LDL to inhibit activation of the HIF and NF-κB pathways. Whereas treatment with DMOG resulted in an increase in the protein levels of HIF-1α, HIF-2α, and HIF-1β in nucleus where they form the active heterodimer complexes to trigger transcription of target genes, this event was sharply blocked by pre-treatment with LDL (Figure 4D and Supplementary Figure S3D). Similarly, pre-incubation with the NF-κB inhibitor PDTC [35] also markedly reduced the protein levels of HIF-1α and HIF-2α in ECs treated with DMOG, but only modestly affected HIF-1β protein level (Figure 4E). Together, these results argue that LDL, rather than oxLDL, is capable to block hypoxia-induced activation of the HIF pathway in ECs, in association with NF-κB inactivation.

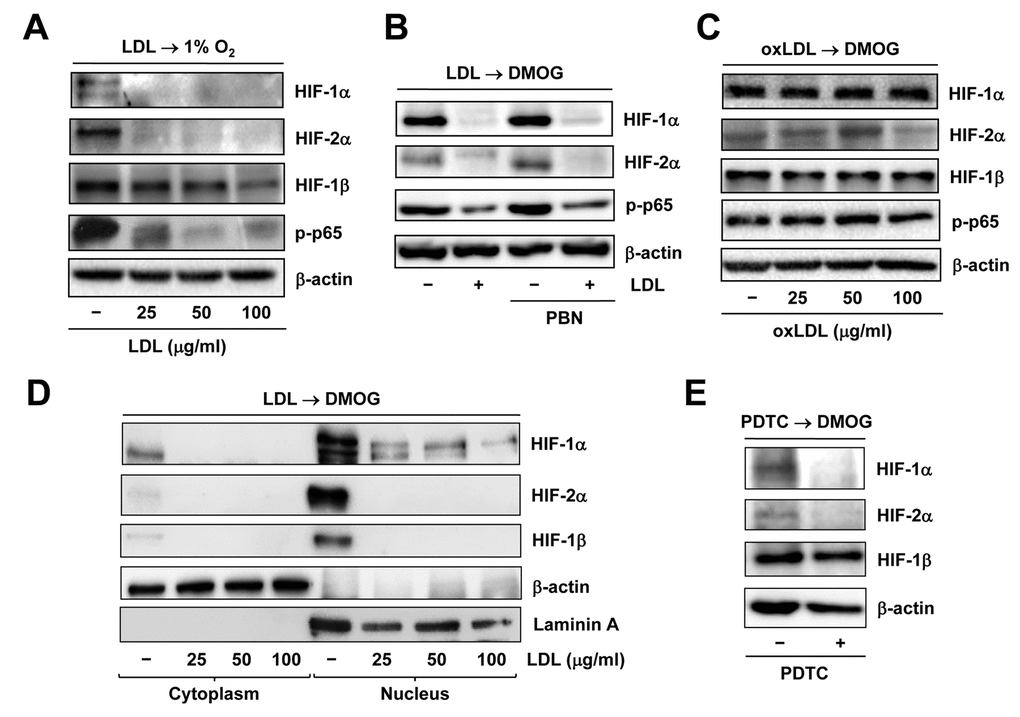

Figure 4. Native LDL, but not oxLDL, inhibits activation of HIF and NF−κB signals induced by hypoxia. HUVECs were treated as follows: (A) pre-treated with LDL (100 μg/ml) for 48 hrs, followed by incubation under hypoxic (1% O₂) condition for additional 48 hrs; (B) pre-treated with LDL (100 μg/ml) in the presence or absence of the free radical scavenger PBN (2 mM) for 48 hrs, and then exposed to the PHD inhibitor DMOG (1 μM) for additional 72 hrs; (C) pre-treated with the indicated concentrations of oxidized LDL (oxLDL, μg/ml) for 48 hrs, followed by DMOG (1 μM) for additional 72 hrs. After treatment, Western blot analysis was performed to monitor expression of HIF-1α, HIF-2α, and HIF-1β, as well as phosphorylation of NF-κB p65 (S536). (D) Alternatively, HUVECs were treated as described in panel 4B, after which cytoplasmic and nuclear fractions were separated and subjected to Western blot analysis for monitoring nuclear translocation of HIF-1α, HIF-2α, and HIF-1β. Blots were reprobed for β-actin and laminin A as loading controls for cytoplasmic and nuclear fractions, respectively. (E) HUVECs were pre-incubated with the NF-κB inhibitor PDTC (100 μM) for 4 hrs, followed by DMOG (1 μM) for additional 72 hrs, after which the protein levels of HIFs were monitored by Western blot analysis.

TNFα exposure results in a distinct GEP for relationship among the TNF, HIF, NF-κB and VEGF pathways in ECs

It is known that TNFα activates HIFs in macrophages. However, the role of TNFα in ECs remains uncertain, particularly regarding angiogenesis. To this end, the GEP database of ECs exposed to TNFα [36] was analyzed, in order to seek for potential relationship among TNF, HIF, NF-κB, and VEGF. As expected, TNFα treatment rapidly induced NF-κB activation, reflected by robust expression of NFKBIA (encoding IκBα) and TNFAIP3 (Supplementary Figure S4A), two direct downstream targets of NF-κB. As in shown in Figure 5A, exposure of ECs to TNFα resulted in a distinct heatmap for gene expression correlations involving these pathways, which was clearly different from that for EC development (Figure 1A) or for ECs from artery vs vein (Figure 1B). Of note, EPAS1, rather than HIF1A, was co-expressed with ARNT (area #1). Positive correlations were also observed between HIF1A or ARNT and KDR, as well as EPAS1 and VEGF receptors (both FLT1 and KDR; area #3). Moreover, expression of VEGFs (particularly VEGFC) correlated with TNF and its receptor TNFRSF1A, in association with activation of the NF-κB pathways (area #4). The positive correlations were also observed between HIF1A and KDR or EPAS1 and FLT1 (Supplementary Figure S4B), as well as HIF1A and the glycolytic activator PFKFB3 (Supplementary Figure S4C) that is known to promote angiogenesis [37]. In contrast, HIF1A or EPAS1 adversely correlated with NOS3, which is involved in synthesis of the angiogenic mediator NO [38], and OTUD7B, a negative regulator of the non-canonical NF-κB pathway [16]. However, exposure of ECs to VEGF yielded much less correlations among these pathways (Supplementary Figure S5A), when compared to TNFα treatment (Figure 5A). Interestingly, positive correlations between HIF1A (but neither EPAS1 nor ARNT) and VEGF receptors (both FLT1 and KDR) were observed in ECs exposed to VEGF (Supplementary Figure S5B), while all three subunits (particularly EPAS1) positively correlated with VEGF receptors in ECs treated with TNFα (Figure 5A). Together, these results suggest that TNFα activates ECs likely via a distinct signaling network that links itself and its receptors with HIFs and NF-κB, as well as VEGFs and particularly their receptors, different from those for EC differentiation, ECs located at artery vs vein, or stimulated with other pro-angiogenic factors (e.g., VEGF).

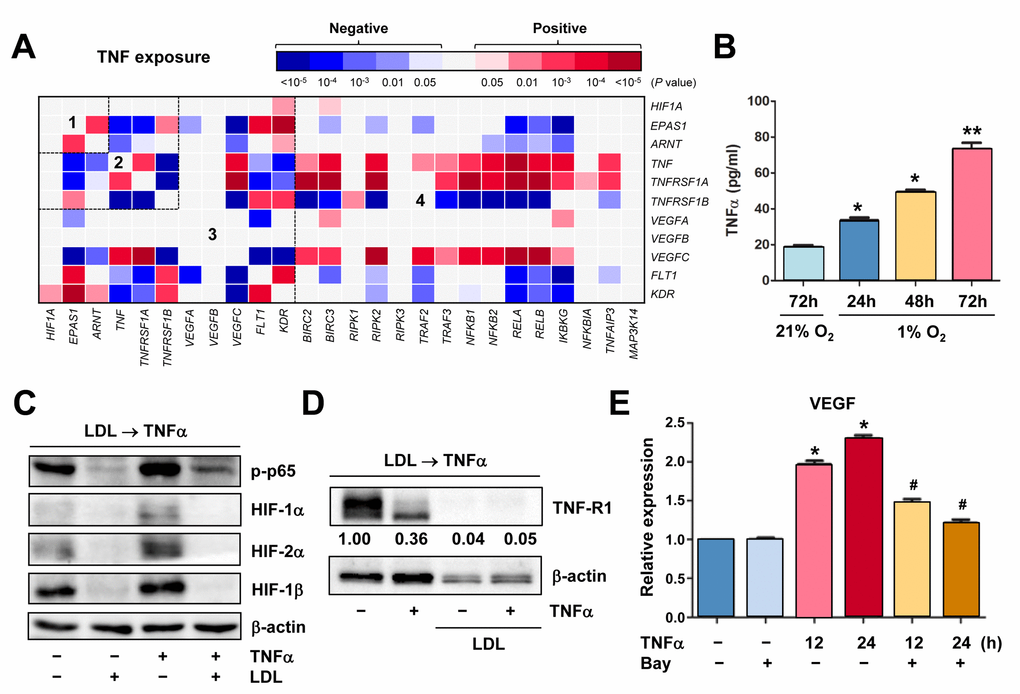

Figure 5. Hypoxia induces autocrine of TNFα in ECs, which in turn activates HIFs and NF-κB to produce VEGF. (A) Using the same approach as described in Figure 1A and 1B, the heatmap was generated by analyzing a dataset involving gene expression profiling (GEP) in HUVECs stimulated by TNFα (dataset, Exp HUVEC TNF-alpha - Kodama - 25 - MAS5.0 - u133p2). Numbers in the heatmaps indicate the areas (outlined by dash line) clustered for each pathway. (B) HUVECs were cultured under hypoxic (1% O₂) or normoxic (21% O₂) condition as described in Figure 2C, an ELISA assay was performed to determine absolute amount of TNFα (pg/ml) in medium harvested at the indicated intervals. Values represent the means ± SD for at least three independent experiments performed in triplicate. *P < 0.05 and **P < 0.01 for comparison with control (72 hrs under 21% O₂). (C, D) HUVECs were pre-treated with LDL (100 μg/ml) for 48 hrs, followed by TNFα (50 ng/ml) for additional intervals as below, after which Western blot analysis was performed to monitor S536 phosphorylation of NF-κB p65 (5 min) and expression of HIFs (C, 4 hrs) and TNF-R1 (D, 4 hrs). Blots for TNF-R1 were densitometrically quantified by using ImageJ software. Values indicate fold change after normalization to β-actin. (E) After pre-treated with the IKK inhibitor Bay 11-7082 (10 μM) for 4 hrs, HUVECs were exposed to TNFα (50 ng/ml) for additional 24 hrs. Real-time PCR analysis was then performed to determine expression of VEGF in ECs the indicated intervals. Values represent the means ± SD for at least three independent experiments performed in triplicate. *P < 0.05 for comparison with untreated control; ^#P < 0.05 for comparison with TNFα alone at the same time point.

Hypoxia induces TNFα production by ECs that in turn activates the HIF pathway, while this autocrine loop is disrupted by LDL via down-regulation of TNF-R1

Because the GEP analyses showed that TNF was up-regulated in ECs under certain circumstances (e.g., Figures 1A and 5A), we thus examine whether hypoxia would induce production of TNFα by ECs. Indeed, an ELISA assay revealed that hypoxia induced a marked increase in production of TNFα by HUVECs in a time-dependent manner (Figure 5B). In turn, treatment with TNFα sharply induced NF-κB activation (e.g., p65 phosphorylation) and HIF-1β expression, in association with up-regulation of HIF-2α and to a lesser extent HIF-1α (Figure 5C, lane 3 vs 1). These results suggest an autocrine loop of TNFα in ECs under hypoxic conditions. However, pre-treatment with LDL almost completely eliminated both basal and TNFα-induced NF-κB activation and expression of all three HIF subunits (Figure 5C, lane 2 vs 1 and 4 vs 3, respectively). Moreover, although LDL failed to reduce, rather increased, TNFα production by ECs (Supplementary Figure S5C), it sharply down-regulated TNF-R1 that preferentially accounts for TNFα-induced NF-κB activation [39], in the presence or absence of TNFα (Figure 5D). Interestingly, it was noted that exposure of ECs to TNFα also clearly reduced TNF-R1, presumably reflecting a negative feedback response to TNFα stimulation via an unknown mechanism. Last, exposure to TNFα induced expression of VEGF in HUVECs, an event significantly blocked by the NF-κB inhibitor Bay 11-7082 [40] (Figure 5E). Together, these findings argue that hypoxia might induce angiogenesis via an autocrine loop of TNFα in ECs, which involves VEGF production via activation of the HIF and NF-κB pathways. They also raise a possibility that LDL impairs hypoxia-induced angiogenesis by interfering with this signaling network in ECs, primarily due to down-regulation of TNF receptors (e.g., TNF-R1), rather than TNFα.

LDL down-regulates multiple key components of both canonical and non-canonical NF-κB pathways

As LDL was able to disrupt the autocrine loop of TNFα likely via down-regulation of TNF-R1, a question then arose how LDL would act to down-regulate TNF-R1. As described above, expression of TNFRSF1A (encoding TNF-R1) significantly correlated with activation of NF-κB, rather than HIFs, in ECs exposed to TNFα (Figure 5A). In this context, the effect of LDL on expression of the key components involving the canonical and non-canonical NF-κB pathways was then examined. Similar to that we previously observed in ECs exposed to 1% O₂ [18], the chemical mimetic lactic acid could also activate the canonical NF-κB pathway in HUVECs, reflected by increased phosphorylation of IKKα/β and p65 [32], without affecting TRAF2 protein level (Figure 6A, upper panels). However, exposure to the PHD inhibitors (e.g., DMOG, CoCl₂), which mimic hypoxia by causing accumulation of HIF-1α or HIF-2α due to prevention of their hydroxylation and proteasomal degradation [2], failed to induce NF-κB activation (data not shown). These results suggest that lactic acid might represent an alternative approach to mimic hypoxia more appropriately, in order to evaluate the cross-talk between HIF and NF-κB signaling pathways. Whereas TRAF3 is known to bind to NIK and lead to its ubiquitination and proteasomal degradation [32], we observed that lactic acid also reduced TRAF3 but increased NIK, reflecting activation of the non-canonical NF-κB pathway in HUVECs (Figure 6A, lower panels). Similarly, exposure to TNFα also resulted in a sharp increase in phosphorylation of IKKα/β (Figure 6B) as well as up-regulated RelB (Figure 6C) that binds to NF-κB2/p52 to activate the non-canonical NF-κB pathway [19]. Of note, pretreatment with LDL down-regulated the basal levels of multiple key components involving these two NF-κB pathways, including IKKα/IKKβ, p50, p52, p65 (RelA), RelB and c-Rel. LDL pretreatment also blocked TNFα-induced IKKα/β phosphorylation and RelB up-regulation, as well as down-regulated IKKα/IKKβ, RelB and c-Rel in HUVECs exposed to TNFα, while reversed down-regulation of IκBα by TNFα. Interestingly, LDL barely reduced the protein levels of p50, p52 and p65 in the presence of TNFα (Figures 6B and 6C). Together, these results suggest that in addition to down-regulation of TNF-R1, LDL might also disrupt the autocrine loop of TNFα in ECs by inactivating both canonical and non-canonical NF-κB pathways via down-regulation of their key components.

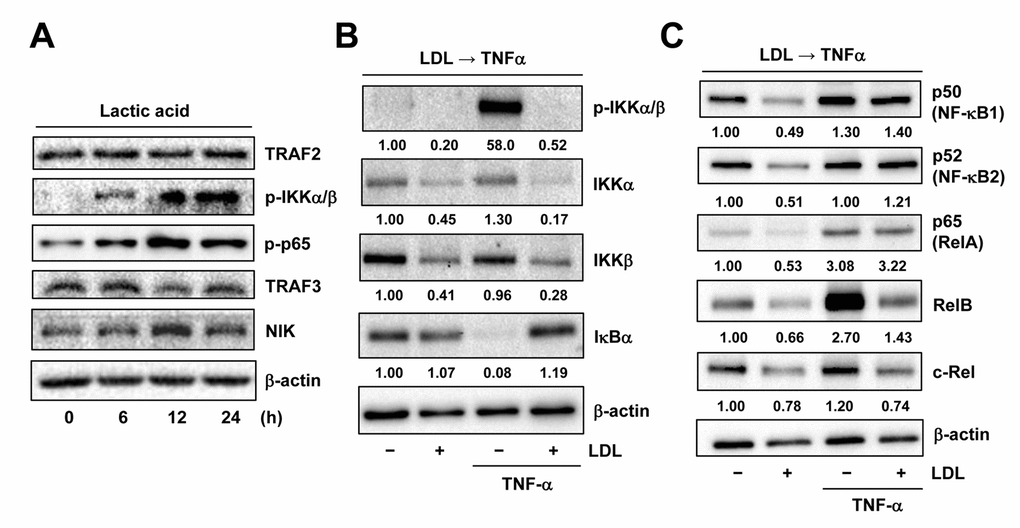

Figure 6. LDL inactivates TNFα-induced NF-κB activation via down-regulation of its key signaling components. (A) HUVECs were treated with 3 mM lactic acid as described in Figure 2D, after which Western blot analysis was performed to assess activation of the canonical (e.g., TRAF2 expression as well as IKKα/β and p65 phosphorylation) and non-canonical (e.g., expression of TRAF3 and NIK) NF-κB pathways. (B, C) HUVECs were pre-treated with LDL (100 μg/ml) for 48 hrs, followed by TNFα (50 ng/ml) for additional intervals as below, after which Western blot analysis was carried out to monitor phosphorylation of IKKα/β (Ser176/180, 5 min) as well as expression of multiple key components of both canonical and non-canonical NF-κB pathways, including IKKα, IKKβ, IκΒα (5 min), p50 (NF-κB1), p52 (NF-κB2), p65 (RelA), RelB, and c-Rel (4 hrs). All blots were densitometrically quantified, and values indicate fold increase after normalization to β-actin.

LDL-mediated impairment of hypoxia-induced angiogenesis involves multiple HIF-dependent downstream targets

Last, we sought to find out potential downstream events of HIFs responsible for anti-angiogenic activity of LDL. To this end, the effect of LDL on major targets and pathways that are known to be involved in angiogenesis was examined in ECs exposed to hypoxia. As shown in Figure 7A, pre-treatment with LDL sharply reduces phosphorylation (activation) of AKT and ERK1/2, as well as expression of VEGF receptors (e.g., VEGFR1 and VEGFR2) and CXCR4 in HUVECs cultured under 1% O₂. HUVECs with knockdown of HIF1A or EPAS1 were then utilized to determine whether disruption of the HIF pathway would reproduce these effects of LDL. Indeed, prevention of either HIF-1α or HIF-2α expression (Figure 3A) also markedly diminished activation of both AKT and ERK1/2, as well as CXCR4 expression induced by hypoxia (Figure 7B, upper panels). However, they failed to affect the protein levels of VEGFR1 and VEGFR2 (Figure 7B, lower panels). Together, these findings argue that the mechanism by which LDL impairs hypoxia-induced angiogenesis via inactivation of the TNFα/NF-κB/HIF/VEGF signaling network might involve a broad spectrum of HIF-dependent downstream events in ECs.

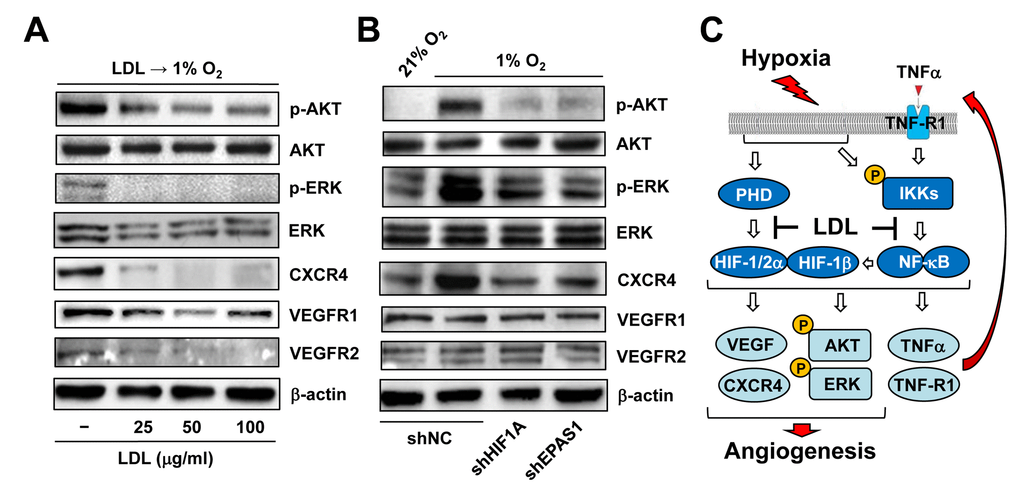

Figure 7. LDL-mediated impairment of hypoxia-induced angiogenesis involves a broad spectrum of HIF-dependent signaling pathways. (A) HUVECs were exposed to indicated concentrations of LDL (25 - 100 μg/ml) for 48 hrs, and then cultured under hypoxic (1% O₂) condition for additional 48 hrs. (B) HUVECs with shRNA knockdown of HIF-1α or HIF-2α were exposed to 1% O₂ (21% O₂ as normoxia control) for 24 hrs. After treatment, Western blot analysis was performed to monitor phosphorylation of AKT (S473), ERK1/2 (T202/Y204), CXCR4, VEGFR1, and VEGFR2. Blots were reprobed for β-actin as loading control. (C) A schematic diagram for the mechanism by which hypoxia induces angiogenesis via an autocrine loop of TNFα and resulting activation of the self-regulatory TNFα/NF-κB/HIF/VEGF signaling network in ECs, as well as the potential mechanism of action for anti-angiogenic property of LDL by which a) LDL might impair the autocrine loop of TNFα via down-regulation of its receptor TNF-R1, rather than TNFα itself; and b) LDL disrupts the TNFα-NF-κB-HIF-VEGF signaling cascade via down-regulation of multiple key components of both canonical and non-canonical NF-κB pathways.

Cell culture

Human umbilical vein endothelial cell (HUVEC) Pooled Pellet (1x10⁶ cells in RNAlater, Cat # C-14011), which contains ECs isolated from more than two donors, was obtained from PromoCell (Heidelberg, Germany). Each experiment was performed in at least three different batches of pooled HUVECs. As described previously [54], cells were cultured for up to 6 passages in endothelial cell growth medium (ECGM, PromoCell) containing 2% serum, 0.1 ng/ml human epidermal growth factor (EGF), 1 ng/ml basic fibroblast growth factor (bFGF), 90 μg/ml heparin and 1 μg/ml hydrocortisone. Cells were maintained at 37°C in a humidified 5% CO₂ incubator at 21% O₂. 1% O₂ condition used for virtually all hypoxic experiments was achieved in a chamber with continuous infusion of pre-tested gas mixture containing 95% N₂ and 5% CO₂. Alternatively, lactic acid, cobalt, and DMOG (Sigma-Aldrich, St. Louis, MO) were used as chemical hypoxia mimetics.

Reagents

LDL and recombinant human tumor necrosis factor-α (TNFα) were purchased from Invitrogen (Carlsbad, CA) and Peprotech (Rocky Jill, NJ), respectively. The free radical scavenger phenyl-N-tert-butyInitrone (PBN), the NF-κB inhibitor pyrrolidine dithiocarbamic acid (PDTC), the IκB kinase (IKK) inhibitor Bay 11-7082, the prolyl-hydroxylase inhibitor dimethyloxalylglycine (DMOG), and lactic acid were obtained from Sigma-Aldrich. The antibodies used in this study include mouse anti-human HIF-1α monoclonal antibody (BD Transduction Laboratories, San Jose, CA); rabbit anti-human HIF-2α polyclonal antibody and rabbit anti-total VEGFR1 (ab32152) monoclonal antibody (Abcam, Cambridge, MA); mouse anti-human CXCR4 (Fusin) monoclonal antibody, rabbit anti-human HIF-1β/ARNT polyclonal antibody, rabbit anti-human NF-κB p65 monoclonal antibody, rabbit anti-total Akt monoclonal antibody, rabbit anti-phospho-Akt (Ser473) polyclonal antibody, rabbit anti-total extracellular signal-regulated kinase (ERK)1/2 monoclonal antibody, rabbit anti-phospho-ERK1/2 (Thr202/Tyr204) monoclonal antibody, rabbit anti-human TNFR1 monoclonal antibody, rabbit anti-human IKKα polyclonal antibody, rabbit anti-human IKKβ monoclonal antibody, rabbit anti-human phospho-IKKα/β monoclonal antibody, rabbit anti-human IκBα polyclonal antibody, rabbit anti-human p50 monoclonal antibody, rabbit anti-human p52 monoclonal antibody, rabbit anti-human p65 monoclonal antibody, rabbit anti-human c-Rel monoclonal antibody, rabbit anti-human RelB monoclonal antibody, rabbit anti-human β-actin antibody (Cell Signaling Technology, Danver, MA); human VEGF and TNFα Quantikine ELISA Kit (R&D Systems, Minneapolis, MN).

Colony formation assay

200 HUVECs cells were seeded into individual well in 24-well plates and grew for 7 days under either 21% or 1% O₂ condition. After washing with PBS for 3 times, cells were fixed using methanol and stained with Giemsa. The numbers of colonies were counted and photographs were captured.

Cell proliferation and migration assays

2×10⁴ HUVECs were suspended in ECGM containing 0.5% serum and seeded into 24-well plates [54]. After incubation for 24 hours, cell viability was analyzed using the Cell Counting Kit-8 (CCK-8; Dojindo Laboratories, Kumamoto, Japan). Alternatively, cell migration assay was conducted in a modified Boyden chamber, with 24-well plates in which transwell inserts (polycarbonate membrane insert with 6.5-mm diameter and 8.0 μm pores; Corning) were placed. 2×10⁴ HUVECs were seeded into the upper compartment and incubated for 24 hours. Non-migrated cells on the top side of the surface were removed, while migrated cells on the bottom side of the membrane were counted in 12 fields.

Matrigel-based tube formation assay

2×10⁴ HUVECs were suspended with ECGM and then seeded into Matrigel-coated wells of a 96-well plate [60]. After incubated for 24 hours, photographs were taken at low magnification (5×) with a DFC-290 camera (Leica Microsystems, Wetzlar, Germany). Unclosed tubes between two branching points were counted.

LDL oxidation

Briefly, native LDL was dialysed against 1× PBS for 24 hours and then incubated with 10 µM CuSO₄ for 24 hours at 37°C, followed by dialysis against 1× PBS containing 0.1 mM EDTA for 48 hours. Oxidized LDL was harvested through a 0.22 µm filter and used within one week [18].

Plasmids and lentivirus transduction

E. coli XL1-blue (Stratagene, Heidelberg, Germany) was used for plasmid preparation, while E. coli Stbl3 (Invitrogen) were used for preparation of pLKO.1 (Addgene, Cambridge, MA), pLKO.1-shRNA-HIF1A, pLKO.1-shRNA-EPAS1, pLKO.1-shRNA-ARNT (Sigma-Aldrich). Recombinant lentivirus was produced as described previously [61]. HUVECs were infected with lentivirus and then sorted by flow cytometry. Western blot analysis was performed to confirm silencing of target genes.

Western blot analysis

Whole cell lysates were prepared in NP40 lysis buffer containing protease inhibitor cocktail (Roche, Deutschland, Germany). Whole cell lysates or nuclear/cellular fractions were resolved on sodium dodecyl sulfate-polyacrylamide gels (SDS-PAGE) and blotted onto polyvinylidene fluoride (PVDF) membranes. Membranes were then blocked with 5% skimmed milk in TBS-T (tris-buffered saline containing 0.5% Tween-20, pH 7.2), followed by incubation with the primary antibodies (see “Reagents”). Blots were visualized using the Enhanced Chemiluminescence (ECL) Kit (Pierce, Life Technologies). Blots were re-probed with anti-β-actin (Cell Signaling Technology) to ensure equal loading.

Qualitative real-time-PCR (qPCR)

qPCR analysis using the ABI PRISM 7500 Real Time PCR System (Applied Biosystems, Foster City, CA) was performed to quantify mRNA levels of target genes. Briefly, total RNA was extracted using the RNeasy Midi Kit (Qiagen, Valencia, CA) as per the manufacturer’s instructions. cDNA was synthesized from 1 µg of total RNA. Gene expression was then analyzed by two-step real-time PCR: 95^oC for 30 seconds, followed by 40 cycles of 95^oC for 5 seconds, and 60^oC for 34 seconds. The following primer for VEGF was used: forward, 5- AGGGCAGAATCATCACGAAGT-3; backward 3-ACGGTAGGTTAGCTCTGGGA-5. The human housekeeping gene GAPDH was used as reference. All PCR reactions were performed in triplicate, and gene expression relative to GAPDH was calculated using the 2-ΔΔCT method.

Statistical analysis

All statistical analyses were carried out using the GraphPad Prism 5. Values represent the means ± SD for at least three independent experiments performed in triplicate. Significance of differences between experimental variables was determined using the Student’s t test (two-sided) or One-way ANOVA with Tukey Post-Hoc Test. P < 0.05 was considered statistically significant.
